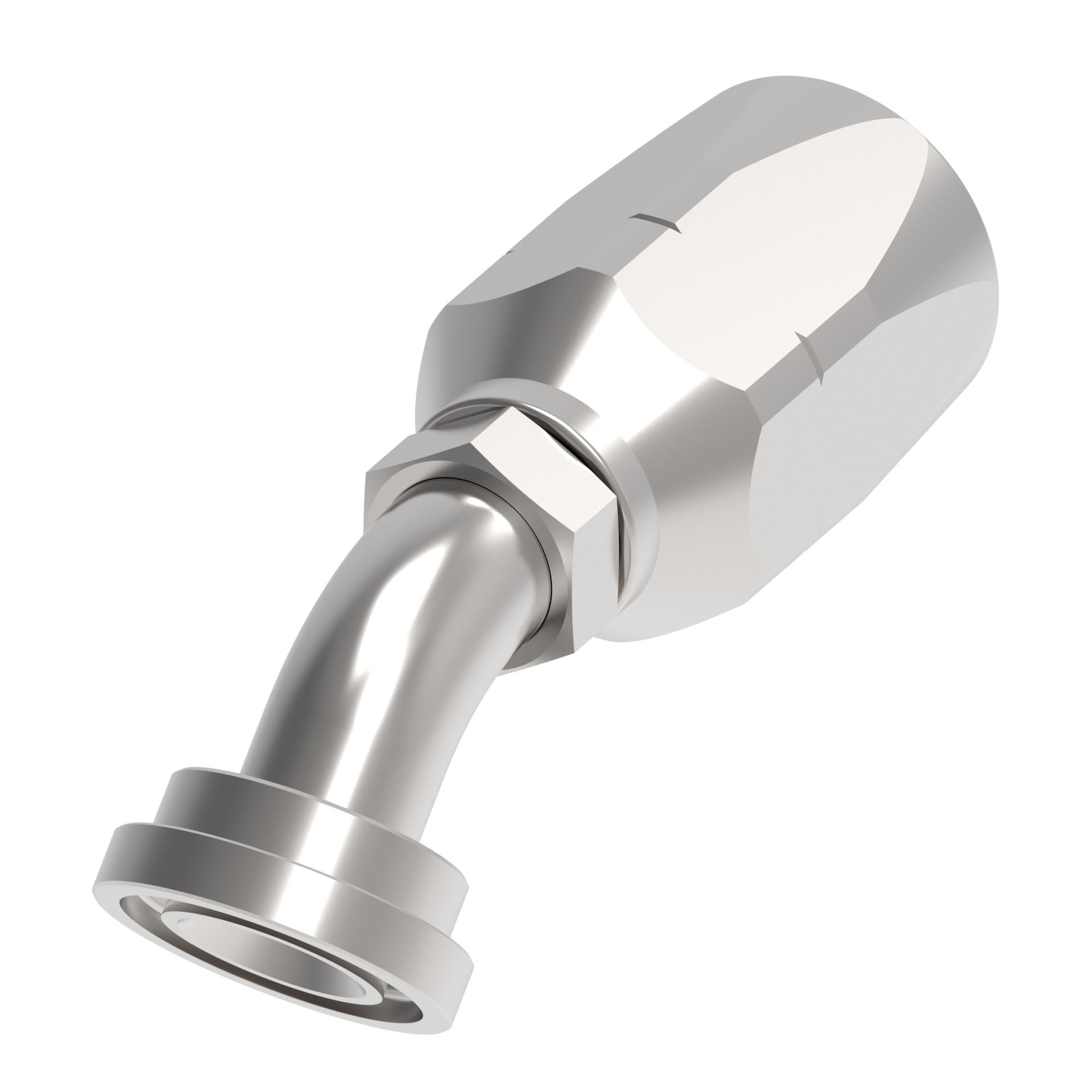

![Hose Fittings 4745-S [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213867%2FID432878339026-0101_preview.jpg&w=1920&q=75)
Aeroquip by Danfoss
4745-32S
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
4745-32S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 45 Degree | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 2 in | |
| Construction style | Reusable | |
| Drop dimension | 1.25 | |
| End type 1 | Flanged | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Finish/plating | DURA-KOTE | |
| Hex Size 2 | 3 in | |
| Hose cut-off factor | 4.19 in | |
| Hose dash size | -32 | |
| Inside diameter | 1.75 in | |
| Item type | Fitting Assembly | |
| Packaged Height | 14 in | |
| Packaged Length | 7 in | |
| Packaged Volume | 882 in³ | |
| Packaged Weight | 5.14 lb | |
| Packaged Width | 9 in | |
| Product Height | 4.15 in | |
| Product Length/Depth | 8.03 in | |
| Product material | Carbon Steel | |
| Product Type | Reusable Hose Fittings | |
| Product Volume | 99.974 in³ | |
| Product Weight | 5.14 lb | |
| Product Width | 3 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | 4745 Series | |
| UPC | 678146056207 |
