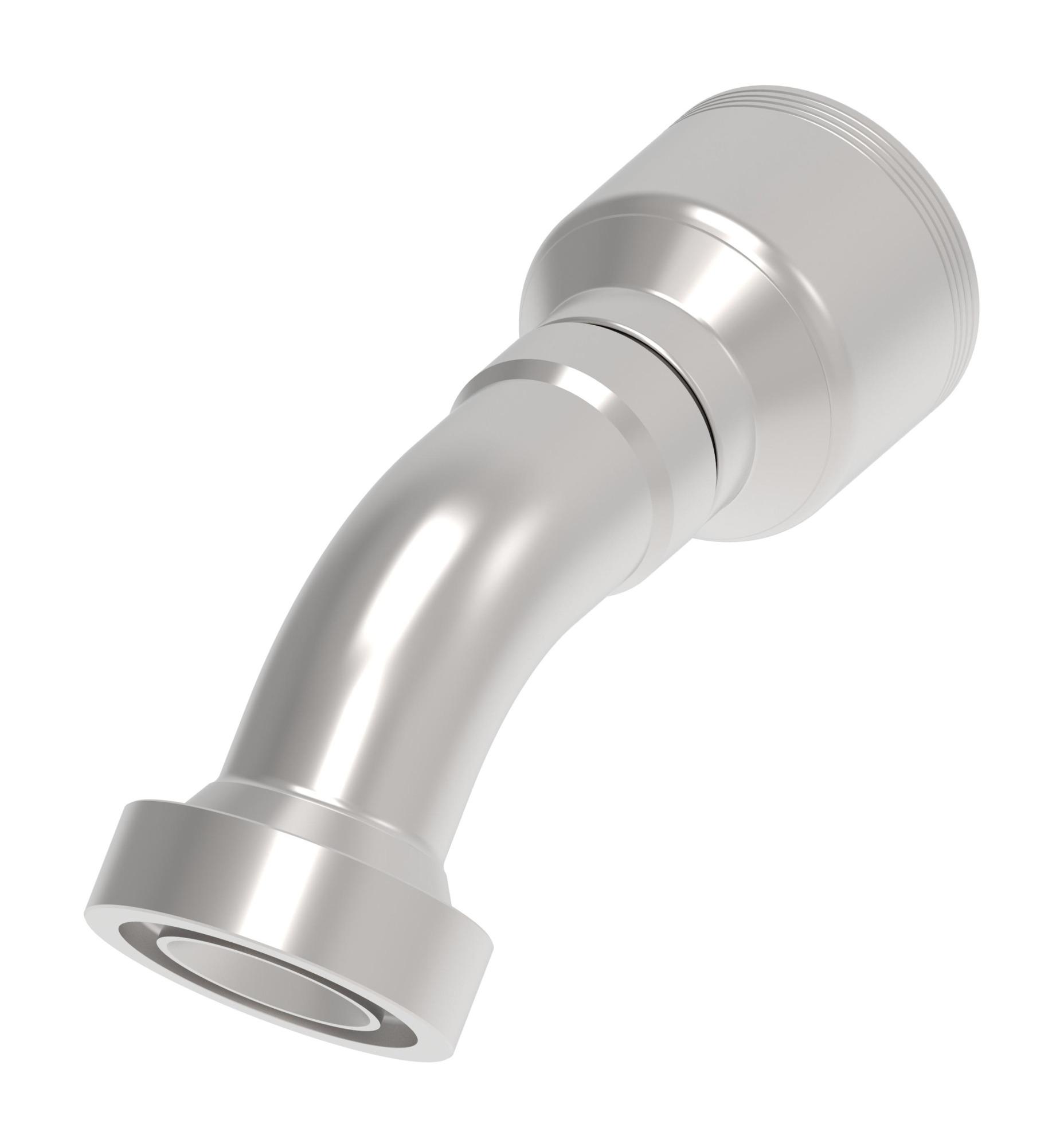

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.170 |
| A dimension MM | 131.200 |
| Angle shape | 45 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 0.750 |
| Construction Style | Crimp |
| Drop dimension IN | 1.390 |
| Drop dimension MM | 35.3 |
| End Type 1 | Caterpillar flange |
| End size 1 | -16 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 3.740 |
| Hose cut off factor MM | 95.000 |
| Inside diameter IN | 0.560 |
| Inside diameter MM | 14.200 |
| Product height in | 3.250 |
| Product height mm | 82.550 |
| Product length in | 6.140 |
| Product length mm | 155.956 |
| Product material | Carbon steel |
| Product width in | 1.840 |
| Product width mm | 46.736 mm |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 813688022437 |
