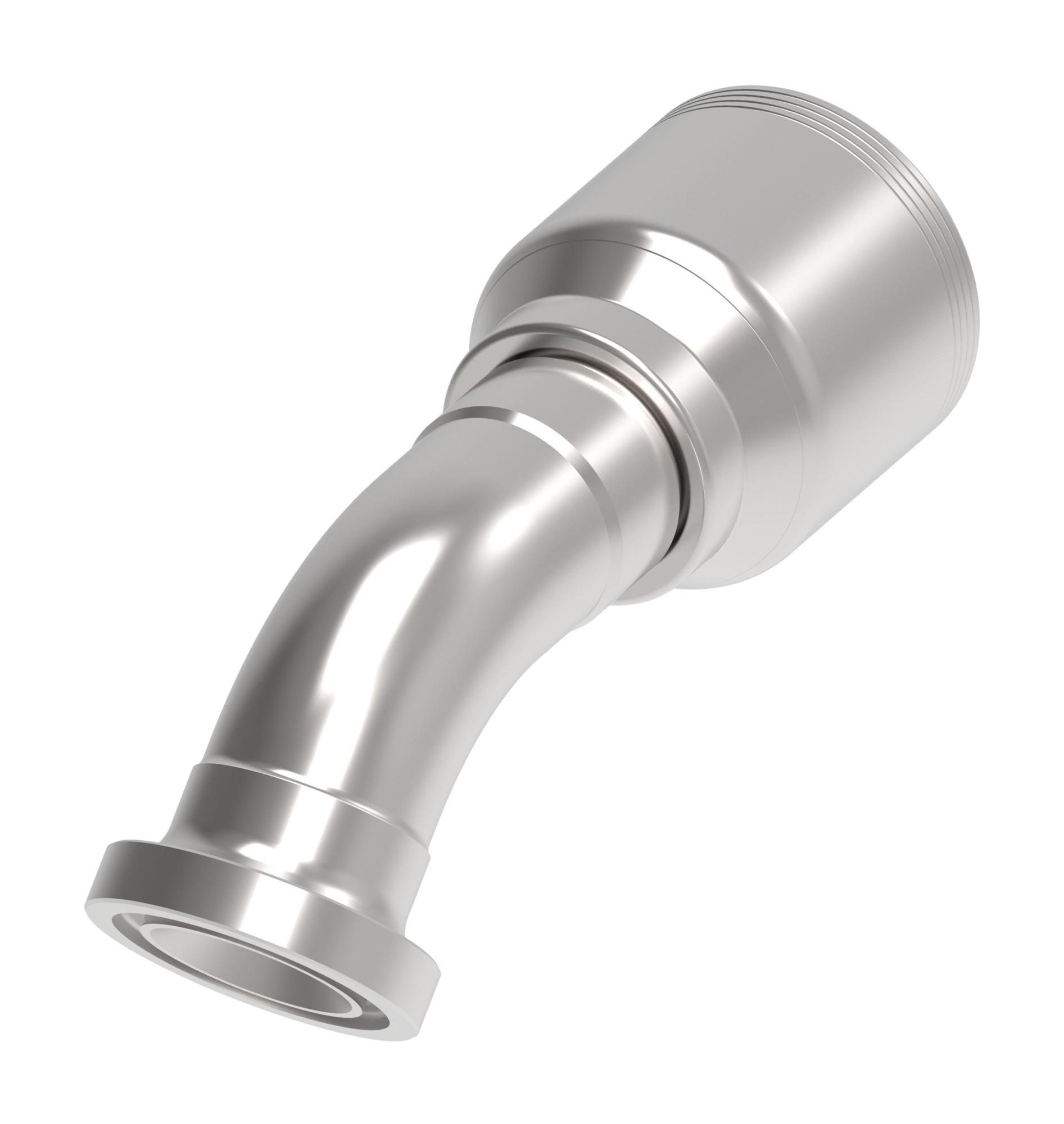

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 6.560 |
| A dimension MM | 166.600 |
| Angle shape | 45 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.250 |
| Construction Style | Crimp |
| Drop dimension IN | 1.540 |
| Drop dimension MM | 39.00 |
| End Type 1 | Split flange code 62 |
| End size 1 | -20 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 4.390 |
| Hose cut off factor MM | 111.600 |
| Inside diameter IN | 0.990 |
| Inside diameter MM | 25.200 |
| Product height in | 3.830 |
| Product height mm | 97.282 |
| Product length in | 7.670 |
| Product length mm | 194.818 |
| Product material | Carbon steel |
| Product width in | 2.460 |
| Product width mm | 62.484 mm |
| Seal material | Ethylene Propylene (EPDM) |
| Thread sealant | No |
| Working pressure max BAR | 414.00 |
| Working pressure max PSI | 6000.00 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 813688028811 |
