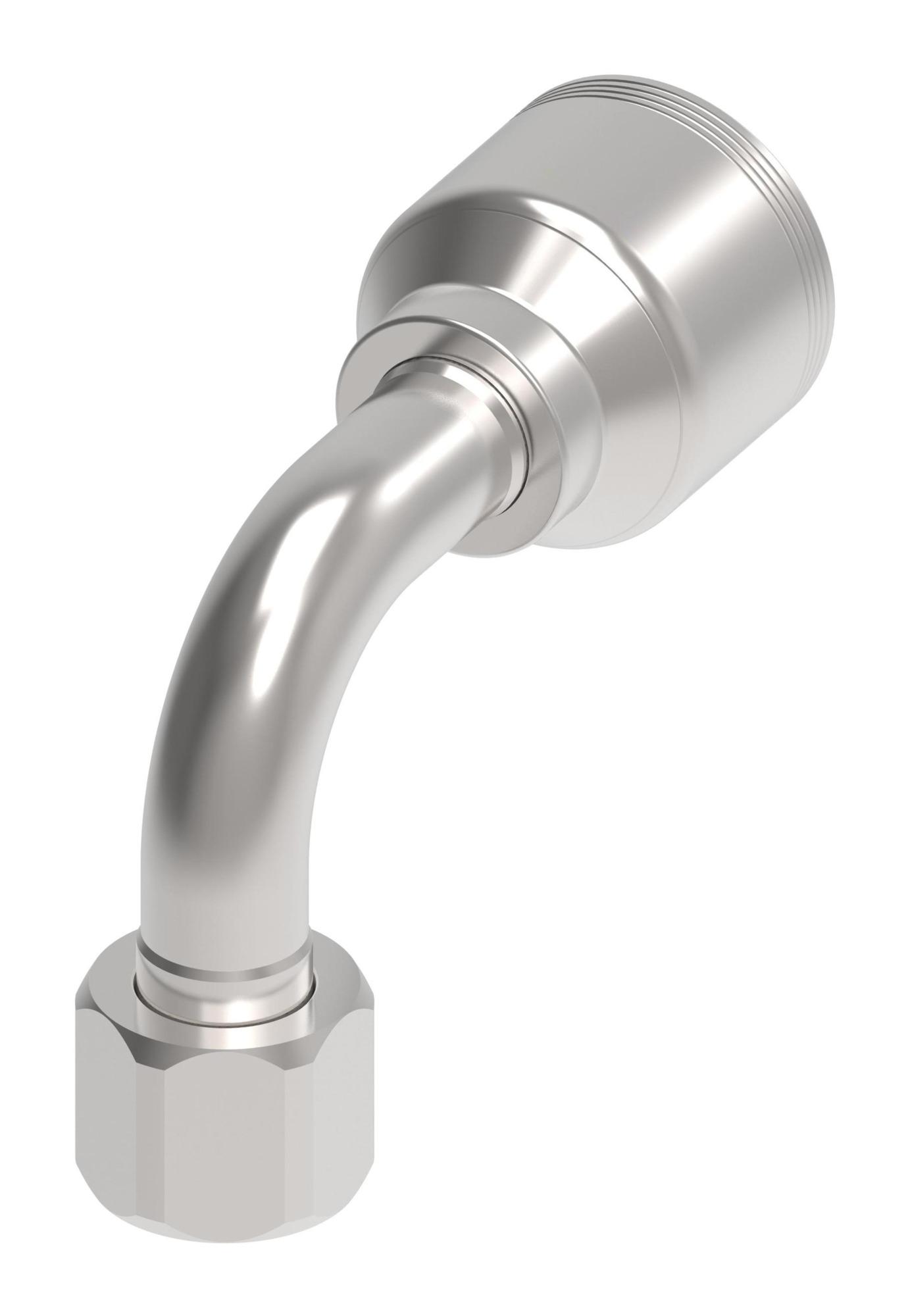

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.990 |
| A dimension MM | 101.300 |
| Angle shape | 90 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 0.750 |
| Construction Style | Crimp |
| Drop dimension IN | 2.280 |
| Drop dimension MM | 58.0 |
| End Type 1 | Female 37 degree swivel |
| End size 1 | -12 |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.250 |
| Hex size 1 MM | 31.8 |
| Hose cut off factor IN | 2.570 |
| Hose cut off factor MM | 65.300 |
| Inside diameter IN | 0.560 |
| Inside diameter MM | 14.200 |
| Product height in | 3.370 |
| Product height mm | 85.598 |
| Product length in | 4.625 |
| Product length mm | 117.475 |
| Product material | Carbon steel |
| Product width in | 1.836 |
| Product width mm | 46.634 mm |
| Thread sealant | No |
| Thread size 1 | 1 1/16-12 UN |
| Working pressure max bar | 330.00 |
| Working pressure max psi | 4800.00 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 813688022925 |
