Winner by Danfoss
6J9-20Z
Adaptor-elbow 过渡
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | 90 Degree |
| Brand | Winner by Danfoss |
| End Size 1 | 1 5/8 IN |
| End Size 2 | 1 5/8 IN |
| End gender 1 | Male |
| End gender 2 | Male |
| End type 1 | JIC 74 |
| End type 2 | JIC 74 |
| Feature | Dura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards |
| Finish/plating | Cr3+Zinc |
| Hex Size 1 | 41 mm |

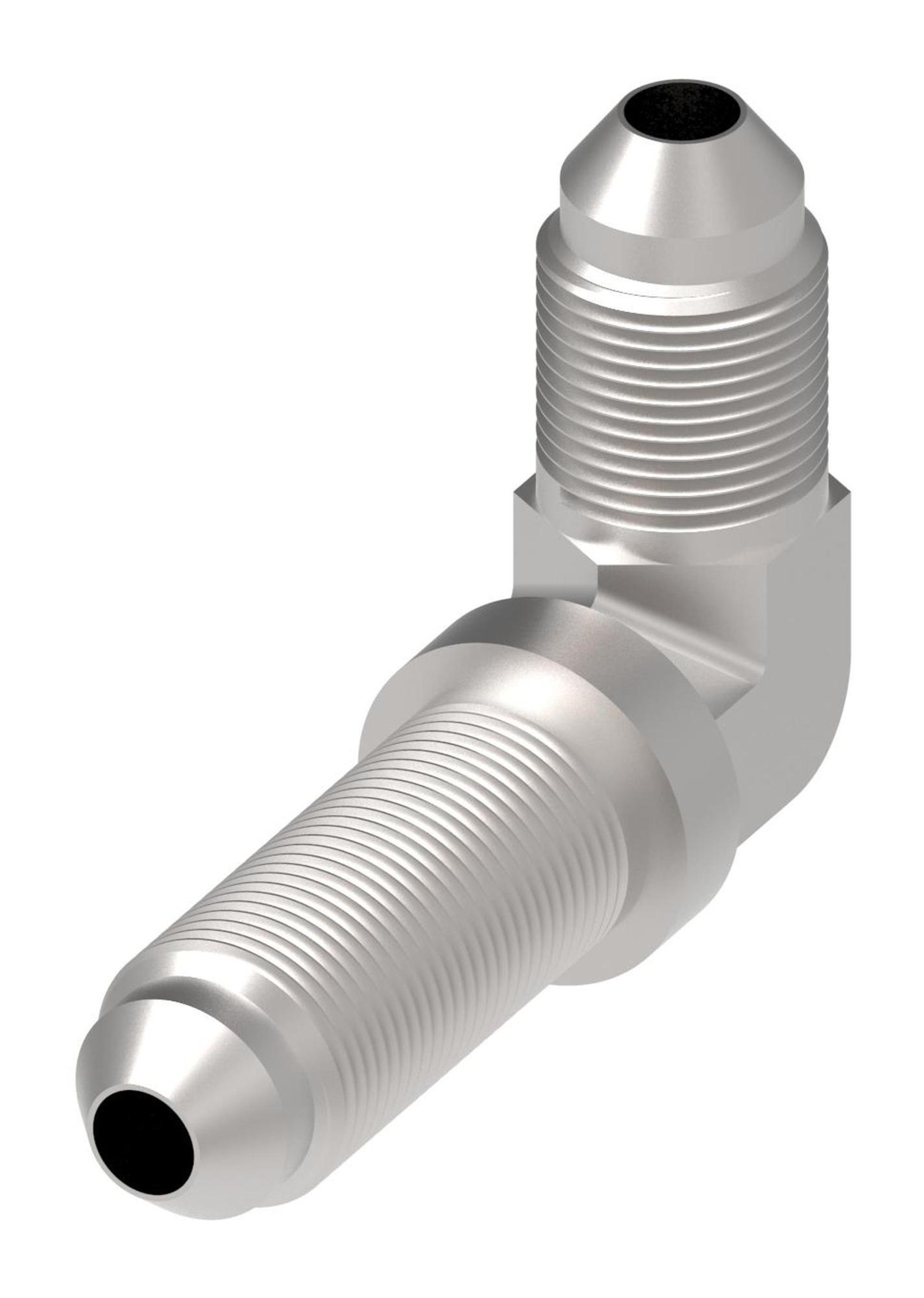

| Item type | JIC 74 Male/JIC 74 Male 90° Elbow Adapter |
| Product Height | 99.7 mm |
| Product Length/Depth | 78 mm |
| Product Type | Elbow Adapters |
| Product Volume | 318.841 cm³ |
| Product Weight | 750 g |
| Product Width | 41 mm |
| Product material | Carbon Steel |
| Sub-brand | None |
| Thread Size 1 | 1 5/8-12 |
| Thread Size 2 | 1 5/8-12 |
| Thread sealant | No |
| Trade Name | 6J9 Series |
