Product specifications
Characteristic | Value |
|---|---|
| Additional functions | No additional functions |

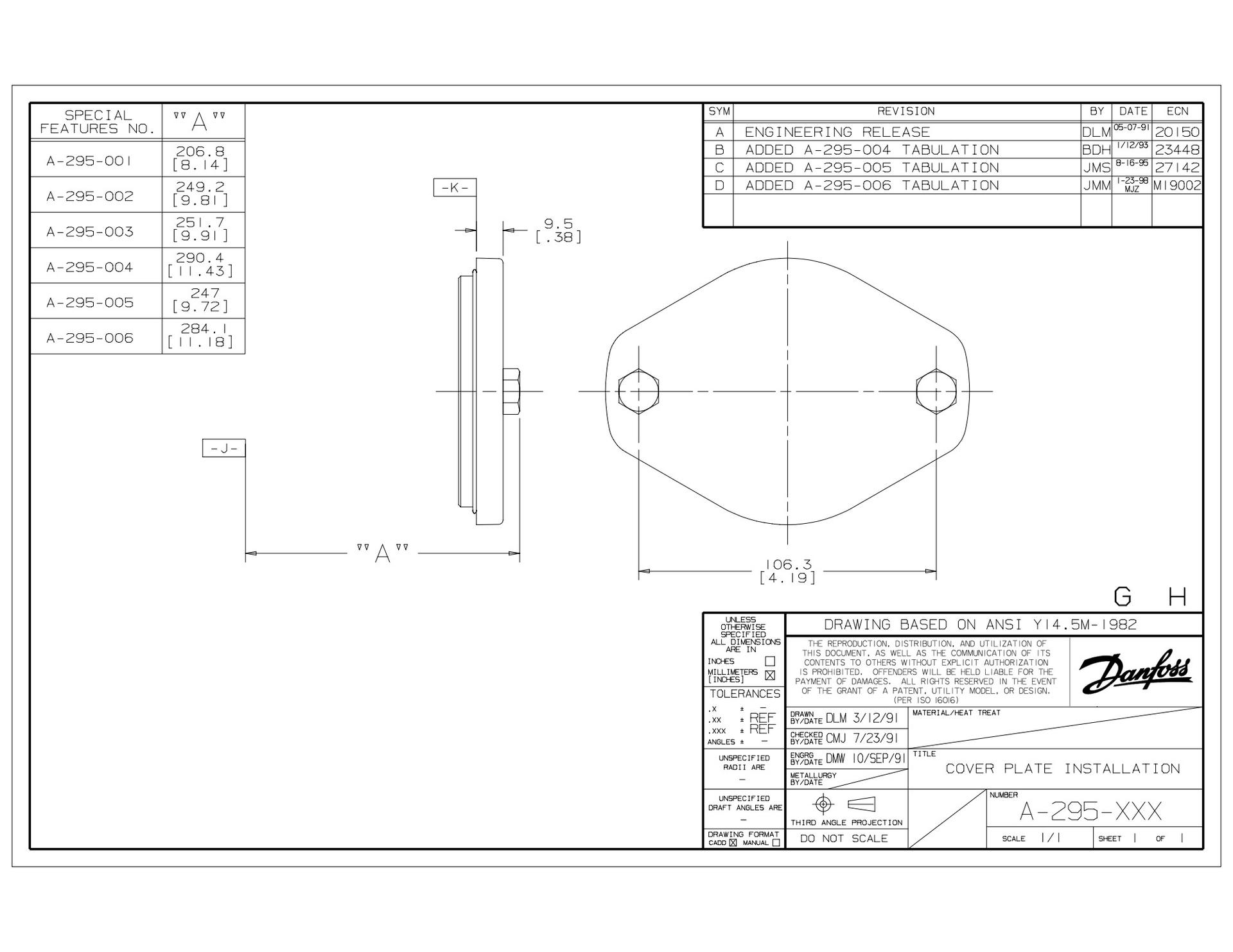

| Aux mounting features rear | [2-BOLT A] SAE flange series 82-2, with cover plate |
| Aux port size and location | M18 X 1.5 metric o-ring port - left (C1) & right(C2) sides (housing), left side plugged |
| Brand | Danfoss |
| Charge pump | No charge pump |
| CODE TITLE | 40.6 cm3/r [2.48 in3/r] servo controlled variabledisplacement pump |
| Control assembly | Electronic proportional control 12 volt DC without electronic driver |
| Control servo orf S1 and S2 | No control servo orifice |
| Control supply orifice P | Diameter 1.02 [.040] |
| CPRV setting and routing | No charge pump |
| Design code | D |
| Destroke valve | Not required |
| Drain port size and location | M27 X 2 metric o-ring port - left (D1) & right (D2) sides, left side plugged; thru drain into rear auXiliary flange (D3) |
| Flow rate gpm | 38.6 |
| Flow rate LPM | 146.3 |
| Identification | Case (customer part number on unit) |
| Input shaft | 15 tooth 16/32 external, diameter 24.98 [.984], shaft extension 46 [1.81] |
| Input shaft rotation | Left hand rotation (ccw) |
| Main port size and location | M33 x 2 metric o-ring port (A & B) – left side |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | AADLAAC00H29HH0EC0D000BCS5D |
| Mounting flange | 2-bolt-B |
| Output shaft | 9 tooth 16/32 internal, diameter 15.88 [.625], accepts shaft extension 31.8 [1.25] |
| Output torque lbf-in2 | 1184.1 |
| Output torque NM | 133.8 |
| PAINT | Black per spec 209-13B |
| Product height in | 8.060 |
| Product height mm | 204.724 |
| Product length in | 11.530 |
| Product length mm | 292.862 |
| Product width in | 12.060 |
| Relief vlv set for main port A | 206.8 bar [3000 lbf/in2] |
| Relief vlv set for main port B | 206.8 bar [3000 lbf/in2] |
| Special control options | No special control options |
| Special features | Pump with fittings installed |
| Working pressure bar | 207 |
| Working pressure psi | 3000 |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
