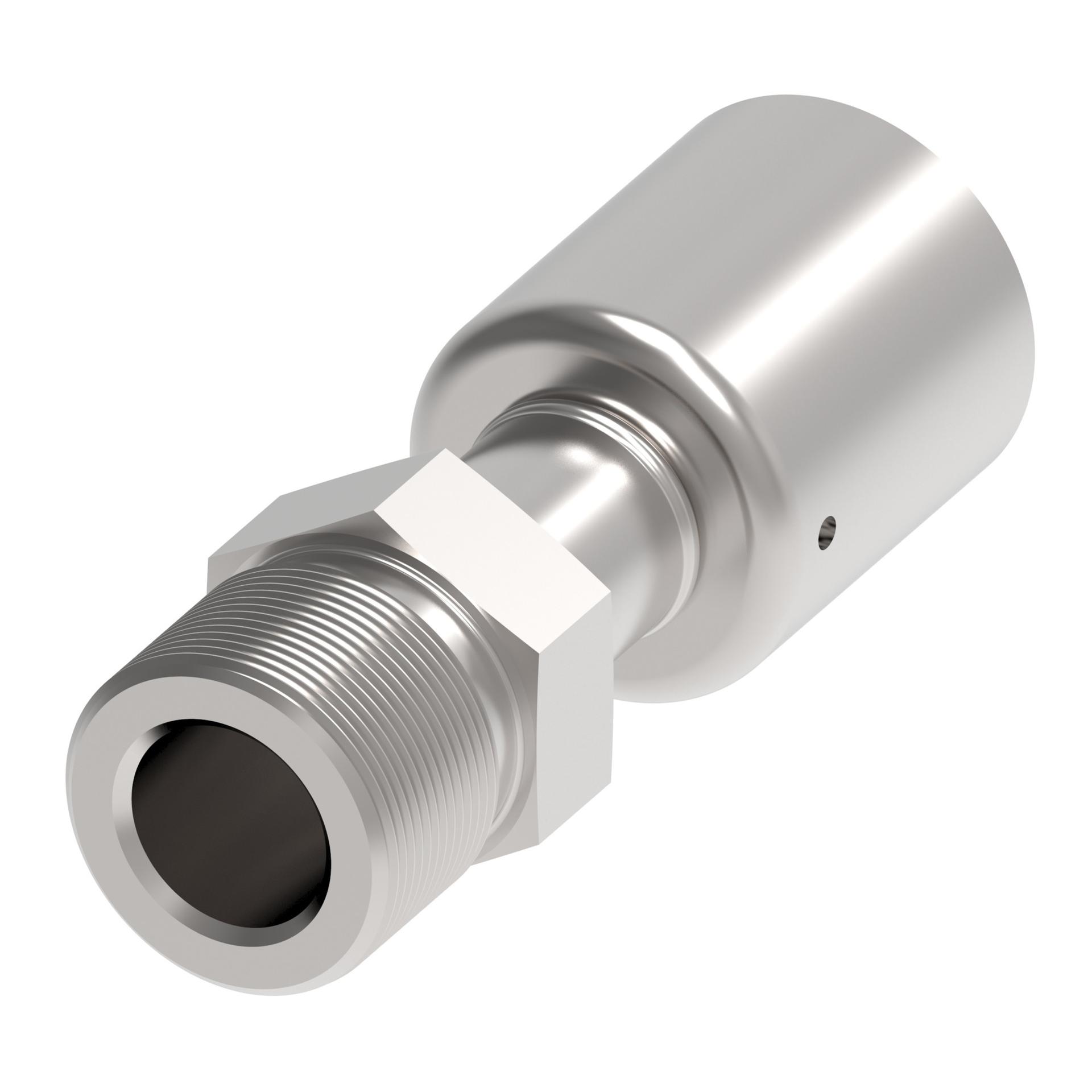

Weatherhead by Danfoss
75712E-W12
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
75712E-W12
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Weatherhead by Danfoss | |
| Compatible hose ID | .75 in | |
| Compatible hoses | H757 | |
| Compatible tube OD | .625 in | |
| Construction style | Crimp | |
| End gender 1 | Male | |
| End Size 1 | 1 1/16 IN | |
| End type 1 | MPT | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life | |
| Finish/plating | DURA-KOTE | |
| Hex Size 1 | 1.0625 in | |
| Hose cut-off factor | 2.25 in | |
| Hose dash size | -12 | |
| Item type | Fitting Assembly | |
| Outside diameter | 1.0625 in | |
| Packaged Height | 5.5 in | |
| Packaged Length | 6.75 in | |
| Packaged Volume | 250.594 in³ | |
| Packaged Weight | 1.306667 lb | |
| Packaged Width | 6.75 in | |
| Product Height | 1.0625 in | |
| Product Length/Depth | 3.56 in | |
| Product material | Carbon Steel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 4.019 in³ | |
| Product Weight | .306667 lb | |
| Product Width | 1.0625 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1 1/16-14 | |
| Trade Name | 757 E Series | |
| UNSPSC | 40183100 | |
| UPC | 757522085007 |
