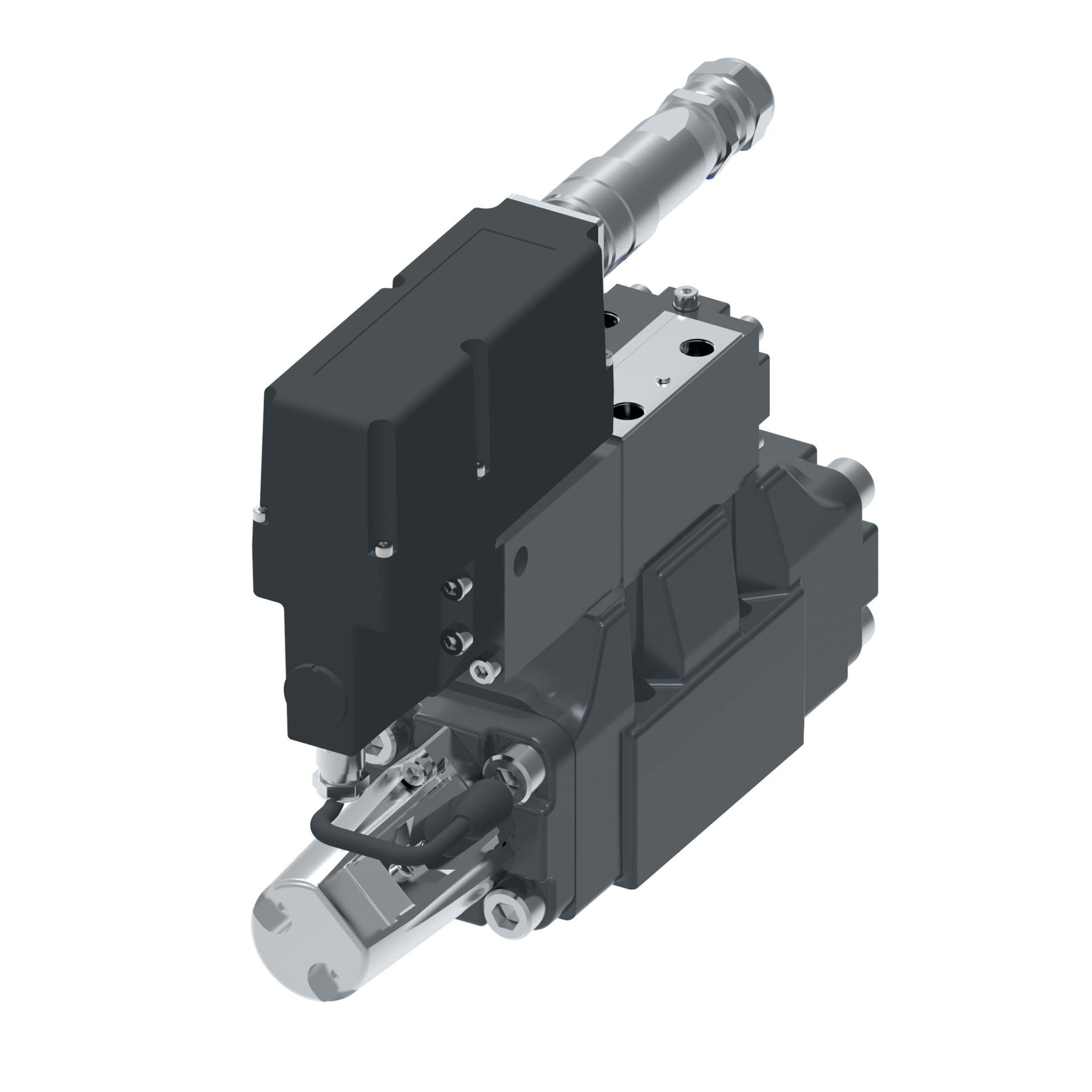

Vickers by Danfoss KBHDG5V-5 12 Design Proportional Valves with OBE KBHDG5V-5-2C95N-E-M1-PE7-H4-12 (RIGHT)

861AN00041A

KBHDG5V-5-2C95N-T-M1-PE7-H4-12
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Actuation IdentificationSolenoid A, Solenoid B
Actuation TypeSolenoid Controlled Pilot Operated
ApplicationDie casting & foundry, machine tool, marine/offshore, press, primary metal, plastics, pulp & paper, test equipmen
Body materialCast Iron
Build OrientationSolenoid 'B' at port 'A' end of valve and Solenoid 'A' at port 'B' end of valve
Build TypeSpring centered
Coil voltage24 Volt DC
Communication busNone
Connector typeELECTRICAL (PE7) 7 PIN ELECTRICAL PLUG WITH PLUG
Current3 A
Customer ProgrammableNo
Design code12
FeatureSimpler, faster and lower cost valve package installationReduced possibility of selection and installation errorsOptimized valve and electronics
Feedback SensorYes
Feedback Type+/-10V Voltage Feedback Signal, +/-10V Voltage Monitor
Flow rate95 l/min
Fluid Cleanliness17/15/12
Fluid compatibilityAntiwear Hydraulic Oils And Non Alkyl Based Phosphate Esters
FunctionDirectional Control Valve
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
LeakageStandard
LightNo
Manual OverrideNone
Model CodeKBHDG5V-5-2C95N-T-M1-PE7-H4-12
On-Board ElectronicsKBH
PerformanceServo Performance
Pilot DrainInternal
Pilot SupplyInternal
Pressure Drop at Rated Flow5 bar
Pressure Rating350 bar
Product Height7.99 in
Product Length/Depth10.42 in
Product TypeProportional Valves
Product Volume229.786 in³
Product Weight19.5 lb
Product Width2.76 in
Reducer ModuleNo
Seal materialFluorocarbon
Special featuresNone
Spool Center ConditionAll Ports Blocked
Spring ArrangementC
StageTwo Stage
Sub-brandNone
Symmetrical FlowNo
Tank Port Rating50 bar
Trade NameKBHDG5V-5 12 Design
Valve Mount TypeSubplate
Working temperature - max80 °C
Working temperature - min-40 °C
