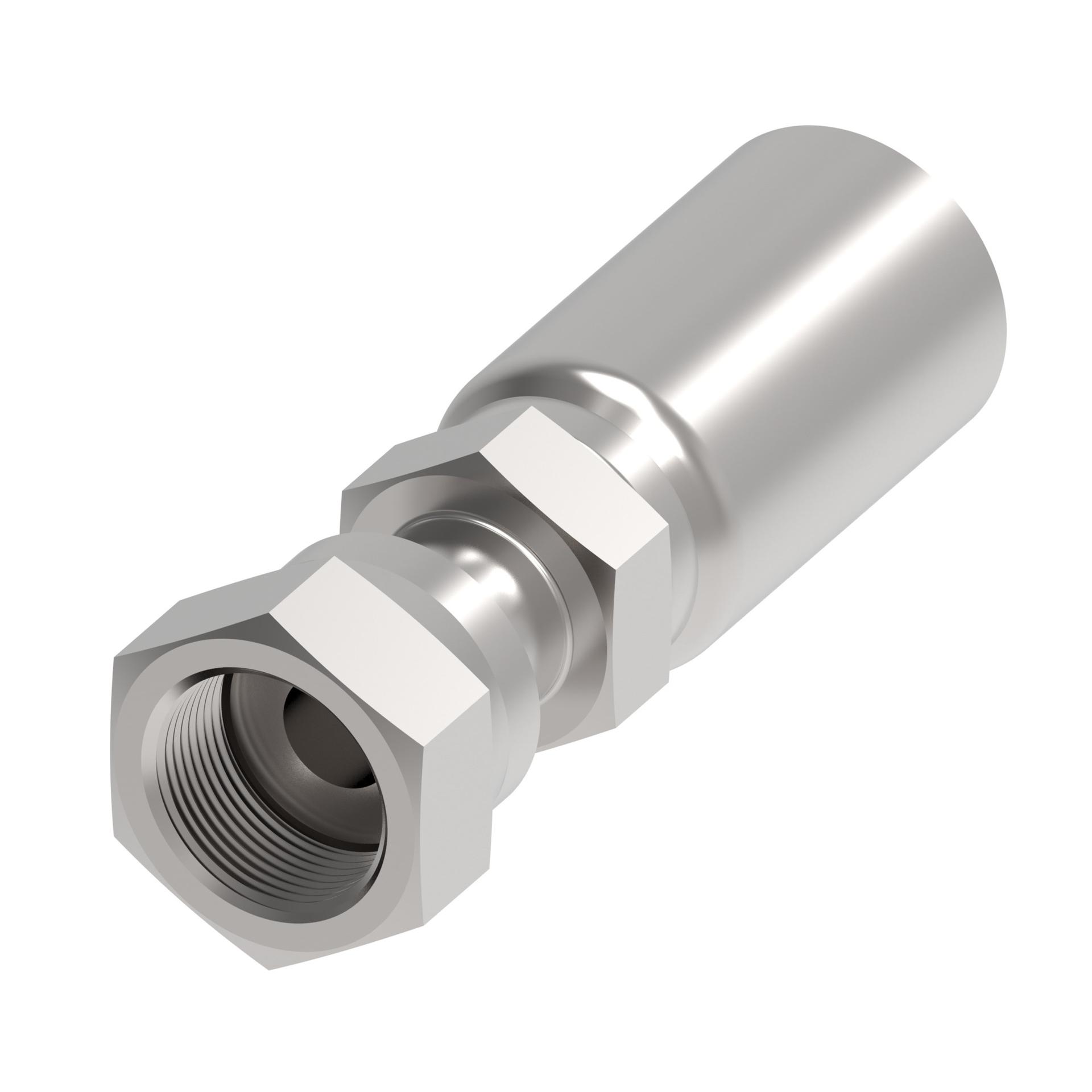

Hose Fittings 90H08-084000 (RIGHT)

Synflex by Danfoss

90H08-084000-0

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Thermoplastic fittings, Engine fittings

Recommended replacement: 4TA8FR8

Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
BrandSynflex by Danfoss
Compatible hose ID.5 in
Compatible hoses3R80 (-03 to -12), 3E80 (-03 to -12), 3630 (-16), 3440 (-12 to -16)
Construction styleSwage
End gender 1Female
End Size 113/16 IN
End type 1ORS
End type 2Line/Hose/Tube
FeatureOptimized inventory to mix and match components Dura-Kote plating for superior corrosion resistance Wide range of styles, configurations
Finish/platingZinc; Clear Trivalent Chromate
Hex Size 1.88 in
Hex Size 21.06 in
Hose cut-off factor1.57 in
Hose dash size-8
Inside diameter.38 in
Item typeFitting Assembly
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height1.06 in
Product Length/Depth3.06 in
Product materialCarbon Steel
Product TypeSwage Hose Fittings
Product Volume3.438 in³
Product Width1.06 in
Sub-brandNone
Thread sealantNo
Thread Size 113/16-16
Trade Name90H Series
UNSPSC40183100
UPC639789326249
