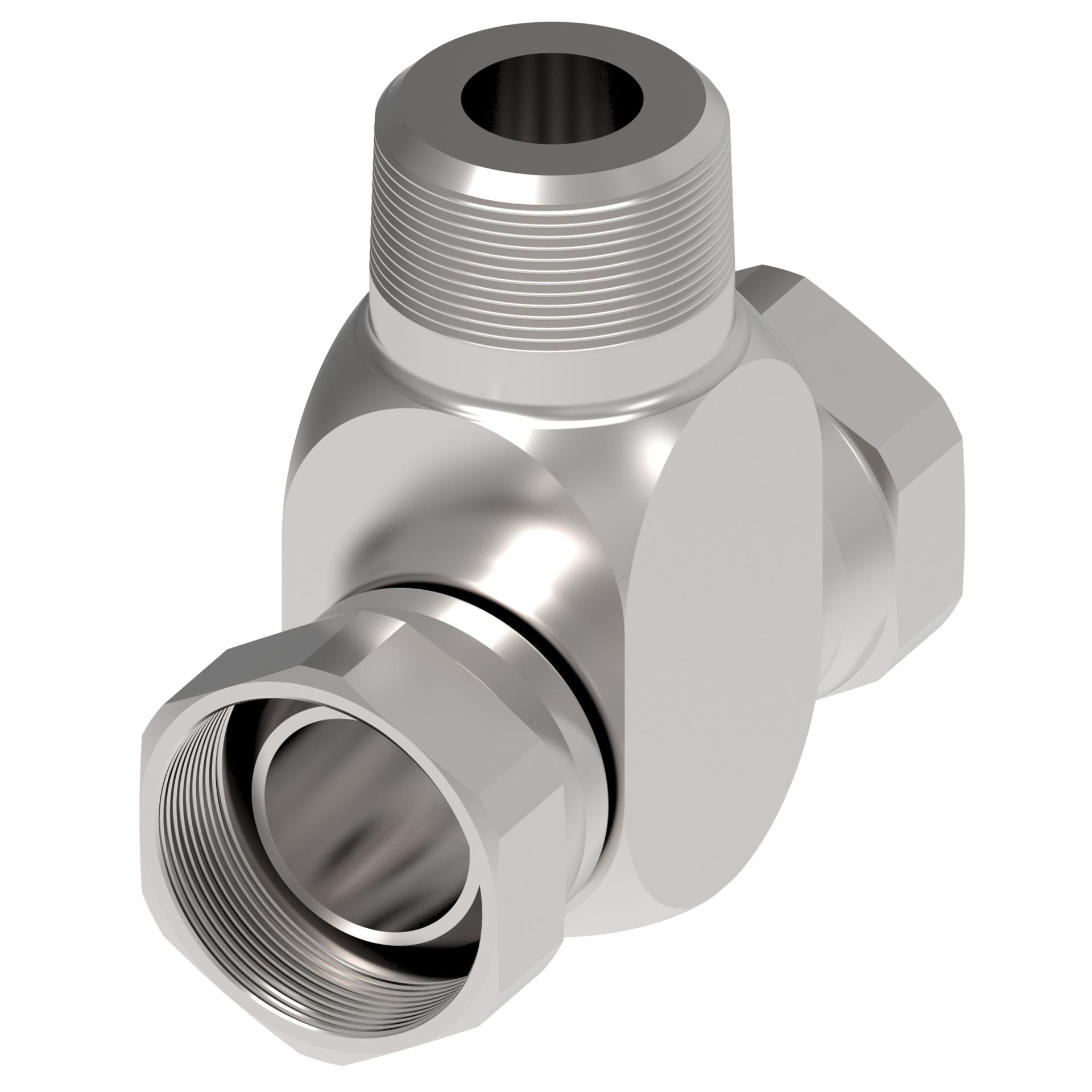

Tee/Y Adapters 2254-16-16 (RIGHT)

Weatherhead by Danfoss

9705X2X2X2

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Steel adapters

Recommended replacement: 2255-2-2S

Tools

Product specifications

Characteristic
Value
Angle (shape)Tee
BrandWeatherhead by Danfoss
End gender 1Female
End gender 2Female
End Gender 3Female
End Size 11/8 IN
End Size 21/8 IN
End Size 31/8 IN
End type 1Solder
End type 2Solder
End Type 3Solder
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingDURA-KOTE
Item typeSolder Female/Solder Female/Solder Female Tee Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight1.12 lb
Packaged Width6.75 in
Product Height.66 in
Product Length/Depth1.406 in
Product materialCarbon Steel
Product TypeTee Adapters
Product Volume.464 in³
Product Weight.12 lb
Product Width.5 in
Sub-brandNone
Thread sealantNo
Thread Size 11/8-27
Thread Size 21/8-27
Thread Size 31/8-27
Trade Name9705x Series
UNSPSC40183100
UPC725975770696
