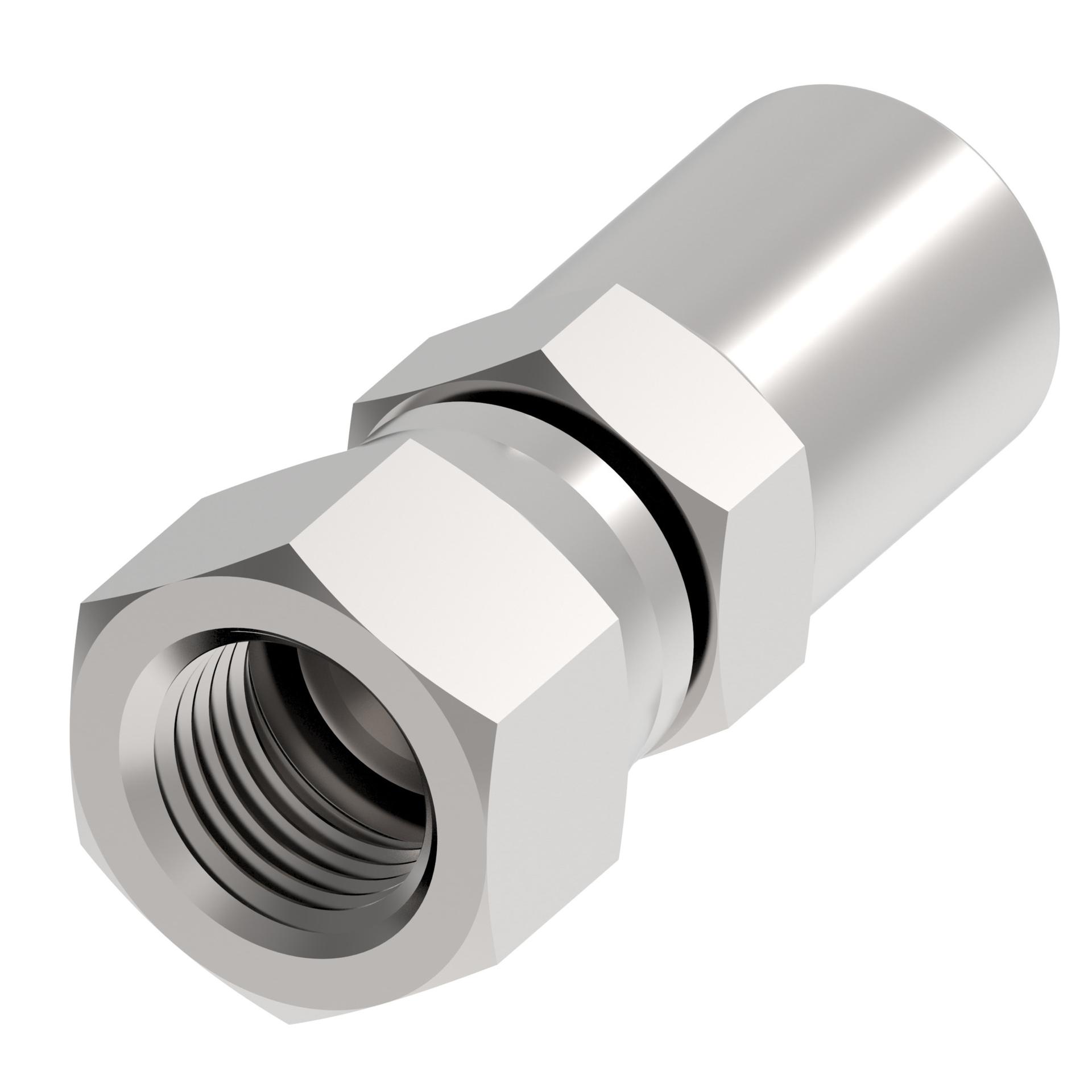

Synflex by Danfoss
9MA02-045400
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
9MA02-045400
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Synflex by Danfoss | |
| Compatible hose ID | .13 in | |
| Construction style | Swage | |
| End gender 1 | Female | |
| End Size 1 | 7/16 IN | |
| End type 1 | JIC 37 | |
| End type 2 | Line/Hose/Tube | |
| Feature | Optimized inventory to mix and match components Dura-Kote plating for superior corrosion resistance Wide range of styles, configurations | |
| Hex Size 1 | .51 in | |
| Hex Size 2 | .55 in | |
| Hose cut-off factor | .61 in | |
| Hose dash size | -2 | |
| Inside diameter | .08 in | |
| Item type | Fitting Assembly | |
| Product Height | .64 in | |
| Product Length/Depth | 1.61 in | |
| Product material | Stainless Steel | |
| Product Type | Swage Hose Fittings | |
| Product Volume | .567 in³ | |
| Product Weight | .18 lb | |
| Product Width | .55 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 7/16-20 | |
| Trade Name | 9MA Series |
