Synflex by Danfoss

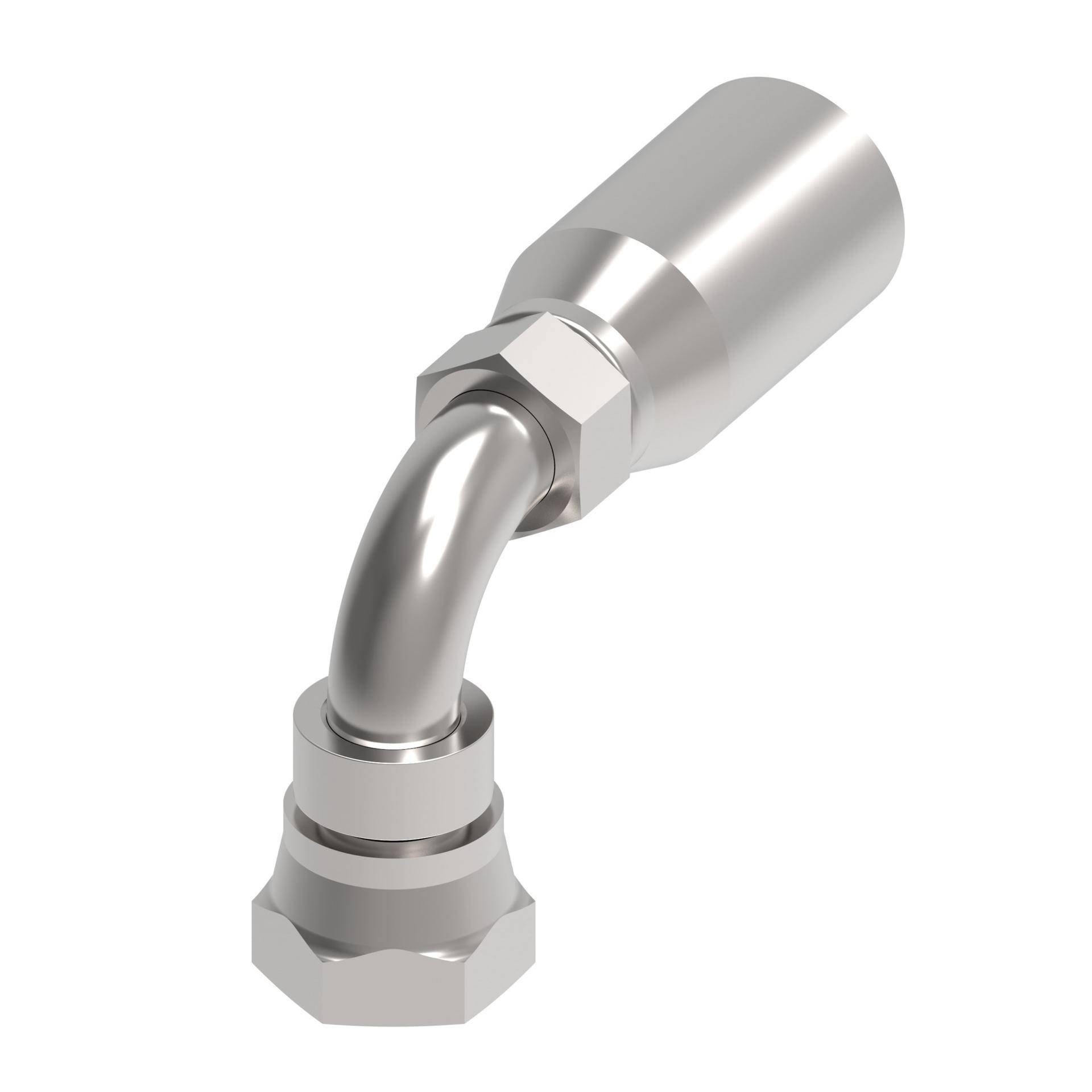

9MH06-18JL90
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
9MH06-18JL90
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 90 Degree | |
| Brand | Synflex by Danfoss | |
| Compatible hose ID | .38 in | |
| Construction style | Swage | |
| Drop dimension | .71 | |
| End gender 1 | Female | |
| End type 1 | Metric | |
| End type 2 | Line/Hose/Tube | |
| Feature | Optimized inventory to mix and match components Dura-Kote plating for superior corrosion resistance Wide range of styles, configurations | |
| Finish/plating | Zinc; Clear Trivalent Chromate | |
| Hex Size 1 | .67 in | |
| Hex Size 2 | .87 in | |
| Hose cut-off factor | 1.56 in | |
| Hose dash size | -6 | |
| Inside diameter | .81 in | |
| Item type | Fitting Assembly | |
| Product Height | 2.12 in | |
| Product Length/Depth | 3.37 in | |
| Product material | Carbon Steel | |
| Product Type | Swage Hose Fittings | |
| Product Volume | 6.216 in³ | |
| Product Weight | .26 lb | |
| Product Width | .87 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | M18X1.5 | |
| Trade Name | 9MH Series |
