Winner by Danfoss
ADDG-20-20-06OGZ

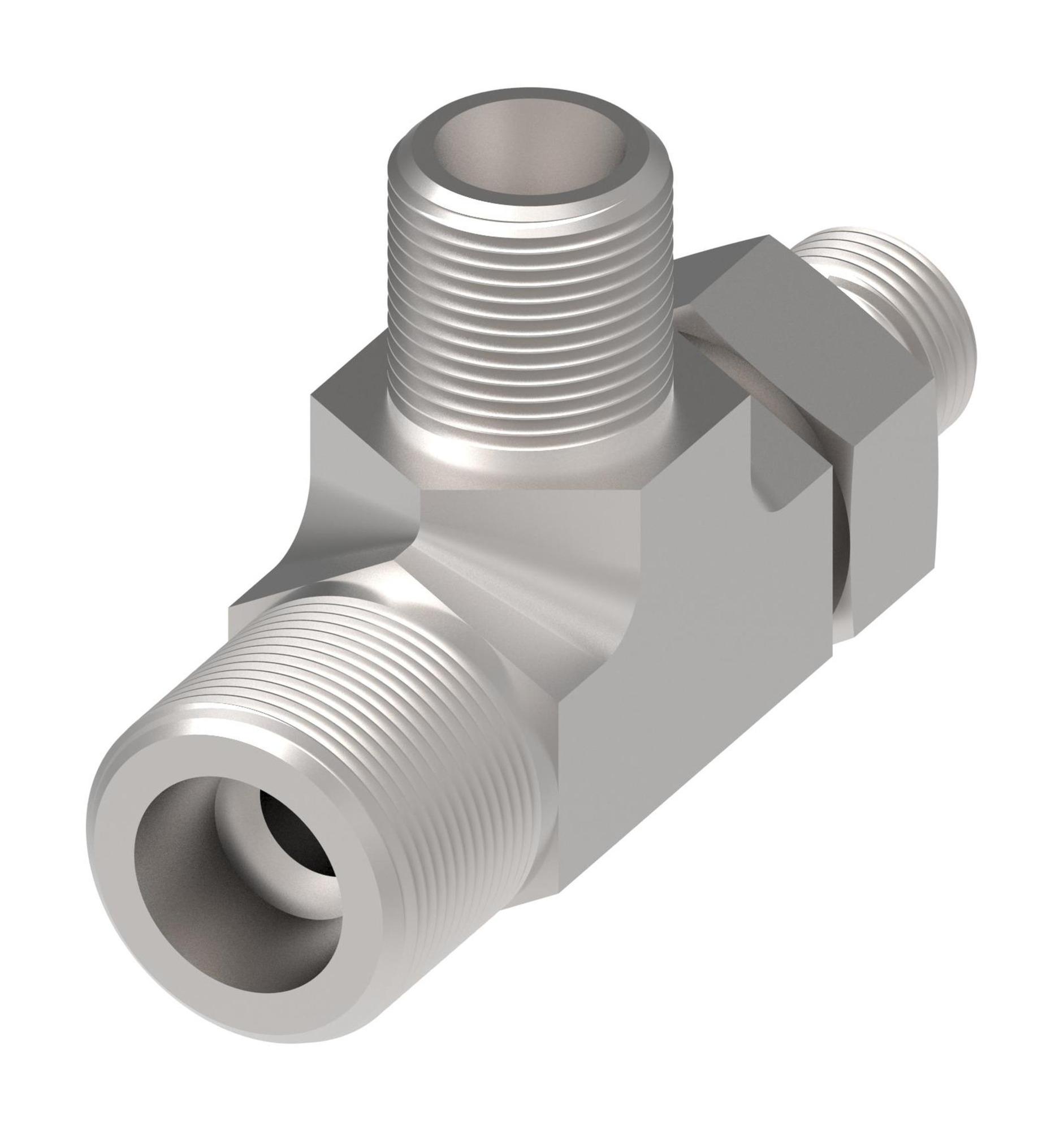

ADAPTOR-TEE
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
---|---|
Angle (shape) | Tee |
Brand | Winner by Danfoss |
Drop dimension | 27 |
End Gender 3 | Male |
End Size 1 | M20X1.5 |
End Size 2 | M20X1.5 |
End Size 3 | 3/8 IN |
End Type 3 | BSPP |
End gender 1 | Male |
End gender 2 | Male |
End type 1 | Metric 24 |
End type 2 | Metric 24 |
Feature | Dura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards |
Finish/plating | Cr3+Zinc |
Hex Size 1 | 19 mm |
Hex Size 2 | 22 mm |
Item type | Metric 24 Male/Metric 24 Male/BSPP Male Tee Adapter |
Product Height | 36.5 mm |
Product Length/Depth | 64 mm |
Product Type | Tee/Y Adapters |
Product Volume | 51.392 cm³ |
Product Weight | 137 g |
Product Width | 22 mm |
Product material | 316L Stainless Steel |
Sub-brand | None |
Thread Size 1 | M20X1.5 |
Thread Size 2 | M20X1.5 |
Thread Size 3 | 3/8-19 |
Thread sealant | No |
Trade Name | ADDG Series |
