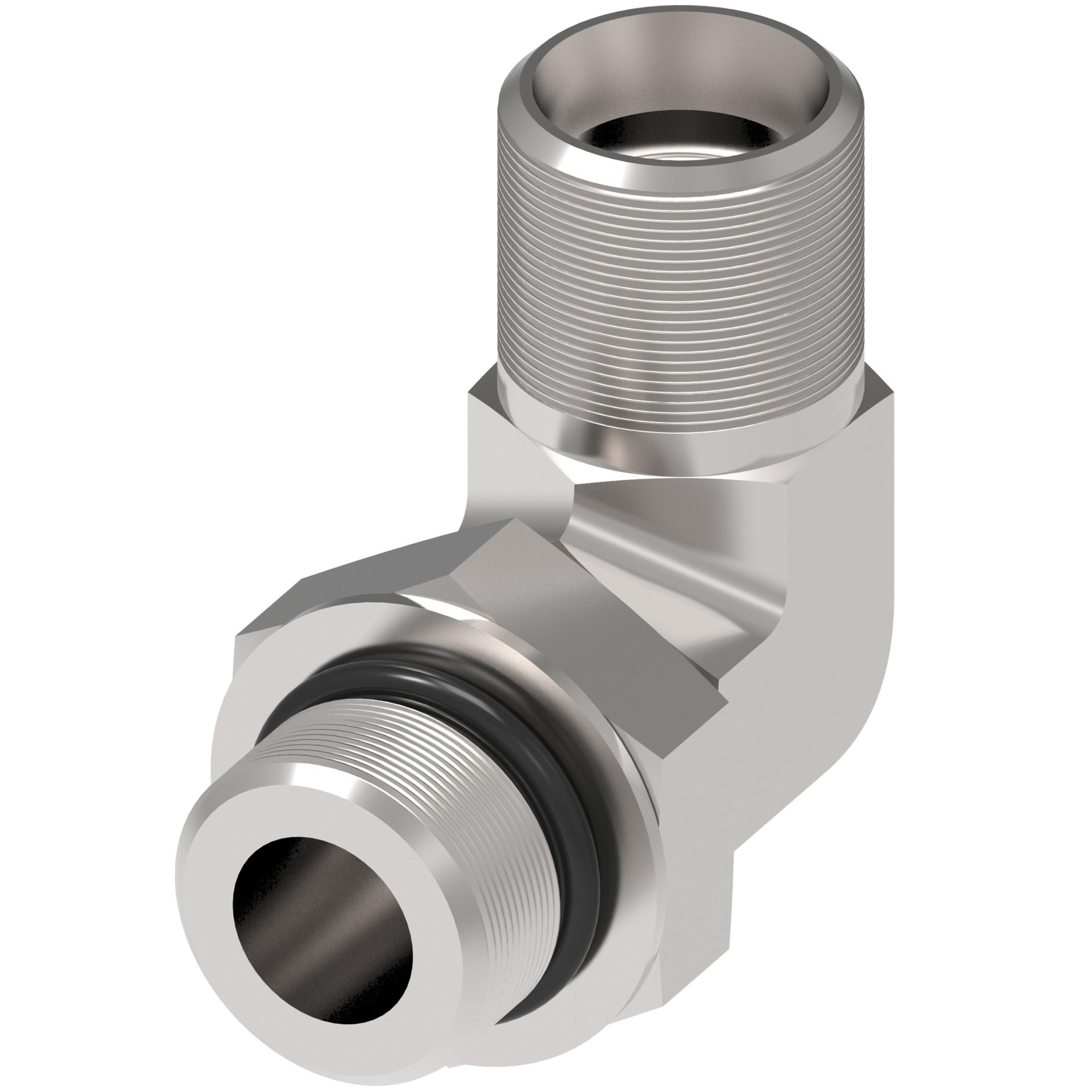

Elbow Adapters B7515 (RIGHT)

Danfoss

B7515X16

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandDanfoss
Drop dimension2.05
End gender 1Male
End gender 2Male
End Size 11 5/16 IN
End Size 21 5/16 IN
End type 1SAE
End type 2SAE
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingDURA-KOTE
Hex Size 11.26 in
Hex Size 21.5 in
Item typeSAE Male/SAE Male 90° Elbow Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height2.68 in
Product Length/Depth2.36 in
Product materialCarbon Steel
Product Type90˚ Straight Thread O-ring
Product Volume9.487 in³
Product Weight.808 lb
Product Width1.5 in
Sub-brandNone
Thread sealantNo
Thread Size 11 5/16-12
Thread Size 21 5/16-12
Trade NameErmeto
Tube OD 1.88 in
Tube OD 2.88 in
UPC725975722961
