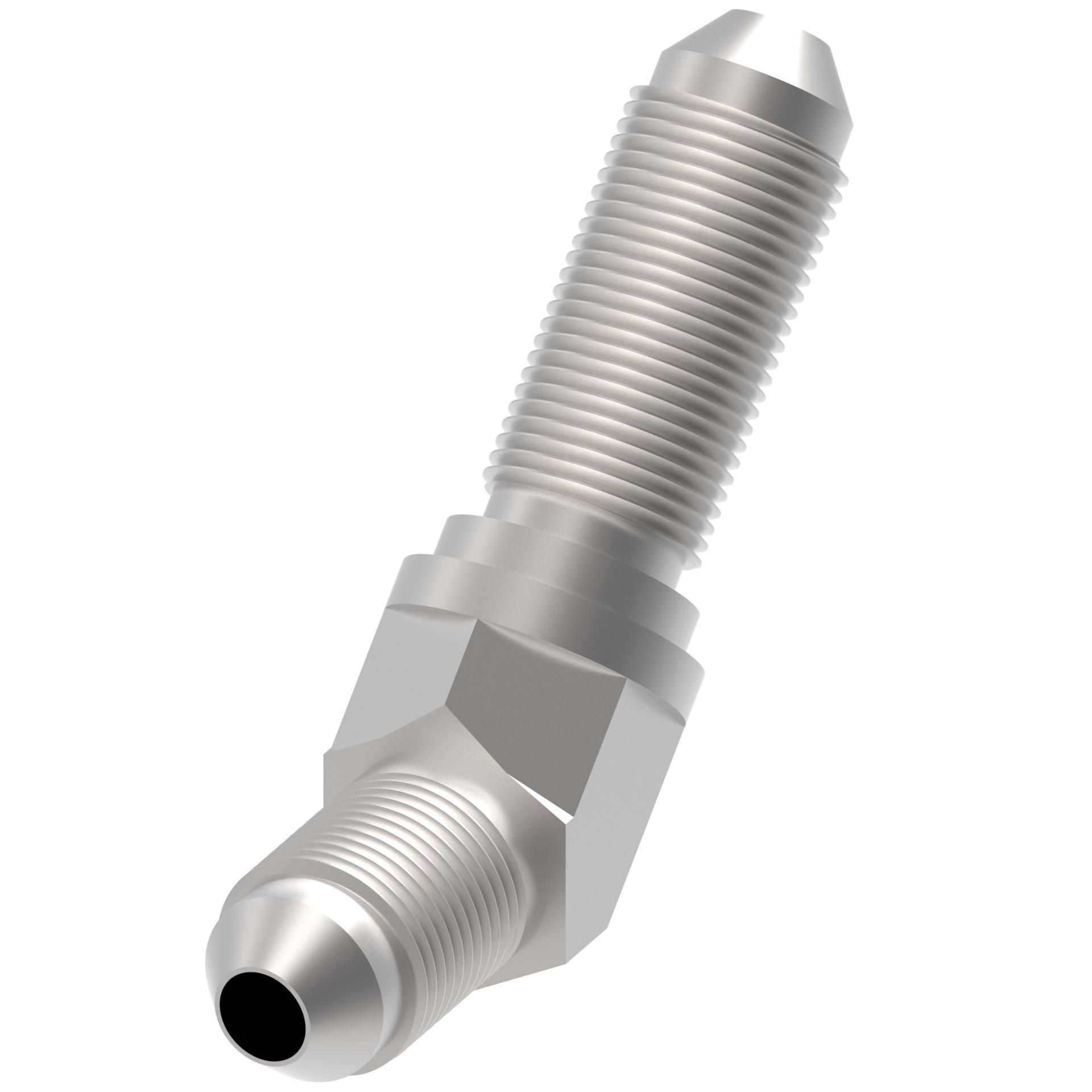

C5375X12
45° Bulkhead Union
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Steel adapters
Recommended replacement: 2042-1-12-12S
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | 45 Degree |
| Certification(s) | SAE 070801 |
| End Size 1 | 3/4 IN |
| End Size 2 | 3/4 IN |
| End gender 1 | Male |
| End gender 2 | Male |
| End type 1 | JIC 37 |
| End type 2 | Line/Hose/Tube |
| Finish/plating | Dura-Kote |
| Inside diameter (bore hole size) | .2969 in |
| Packaged Height | 5.5 in |
| Packaged Length | 6.75 in |
| Packaged Volume | 250.594 in³ |
| Packaged Weight | 1.62 lb |
| Packaged Width | 6.75 in |
| Product Height | 1.28 in |
| Product Length/Depth | 2.44 in |
| Product Volume | 3.998 in³ |
| Product Weight | .62 lb |
| Product Width | 1.28 in |
| Product material | Carbon Steel |
| Thread sealant | No |
| UNSPSC | 40183100 |
| UPC | 639789334909 |
