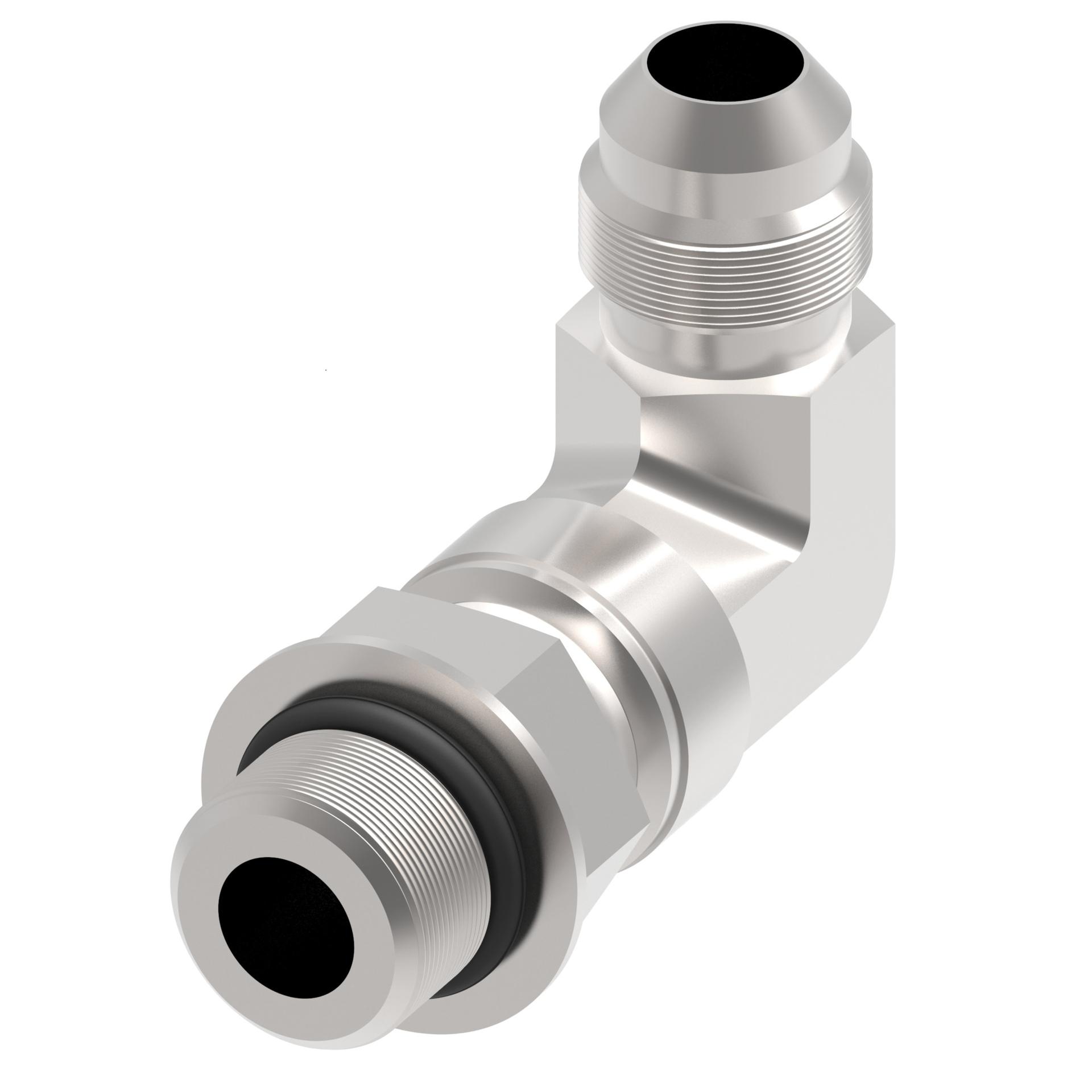

Elbow Adapters C5515-L (RIGHT)

C5515X10LL

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Steel adapters

Recommended replacement: 206209-10-10S

Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
Certification(s)ASAASMESAE 070220
End gender 1Male
End gender 2Male
End Size 17/8 IN
End Size 27/8 IN
End type 1JIC 37
End type 2MPT
Finish/platingDURA-KOTE
Hex Size 11 in
Inside diameter (bore hole size).6089 in
Item typeJIC 37 Male/MPT Male Elbow Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight1.57 lb
Packaged Width6.75 in
Product Height1.45 in
Product Length/Depth3.25 in
Product materialCarbon steel
Product Volume4.713 in³
Product Weight.57 lb
Product Width1 in
Seal part number if included22617-10
Thread sealantNo
Thread Size 17/8-14
Thread Size 27/8-14
UNSPSC40183100
UPC639789334466
