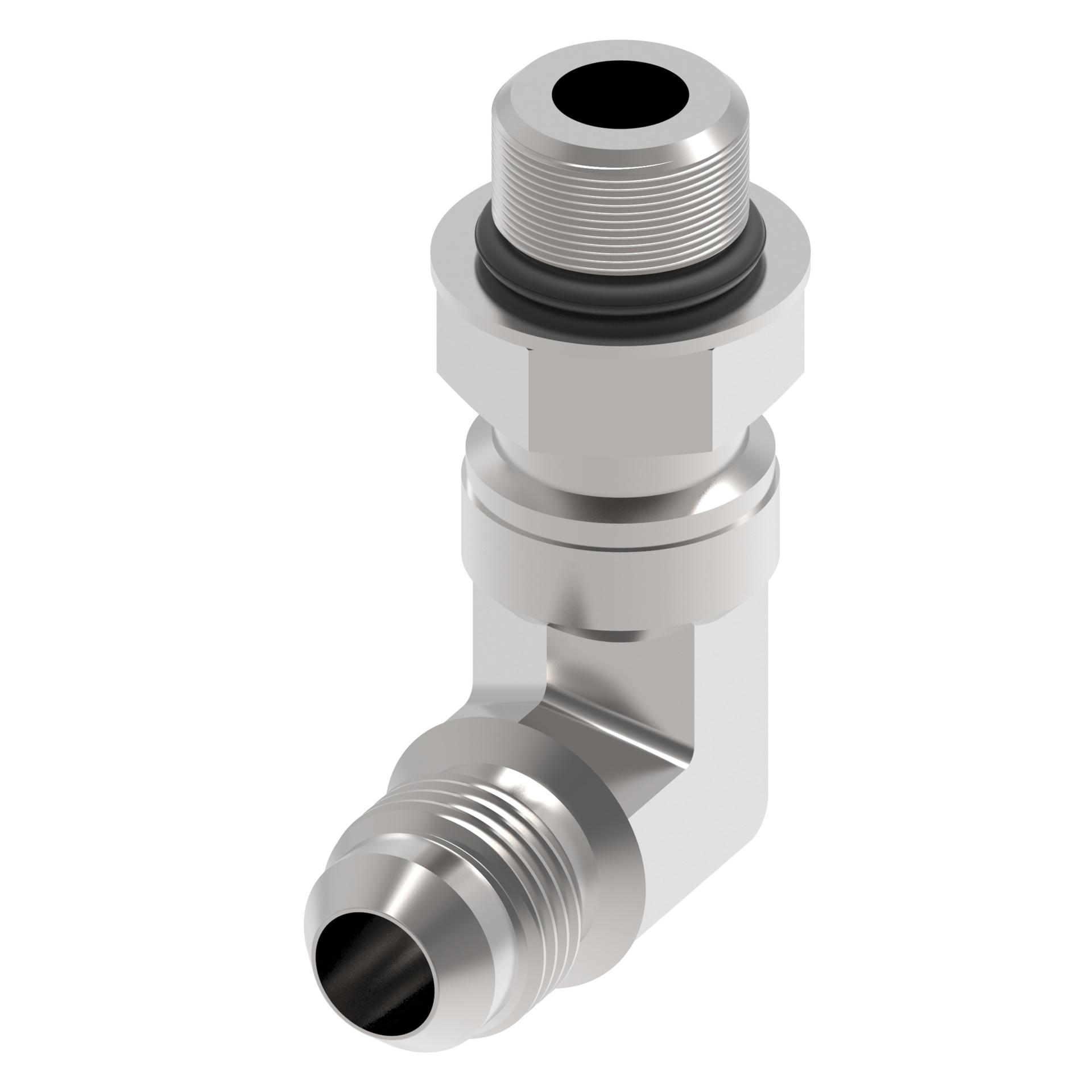

Elbow Adapters FF3910-0606 (RIGHT)

C5515X24X20

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Steel adapters

Recommended replacement: 2062-20-24S

Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
Certification(s)ASMEASASAE 070220
End gender 1Male
End gender 2Male
End Size 11 7/8 IN
End Size 21 5/8 IN
End type 1JIC 37
End type 2MPT
Finish/platingDURA-KOTE
Hex Size 11.88 in
Inside diameter (bore hole size).1719 in
Item typeJIC 37 Male/MPT Male Elbow Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight3.15 lb
Packaged Width6.75 in
Product Height2.33 in
Product Length/Depth2.37 in
Product materialCarbon steel
Product Volume10.354 in³
Product Weight2.15 lb
Product Width1.875 in
Seal part number if included22617-20
Thread sealantNo
Thread Size 11 7/8-12
Thread Size 21 5/8-12
UNSPSC40183100
UPC639789334374
