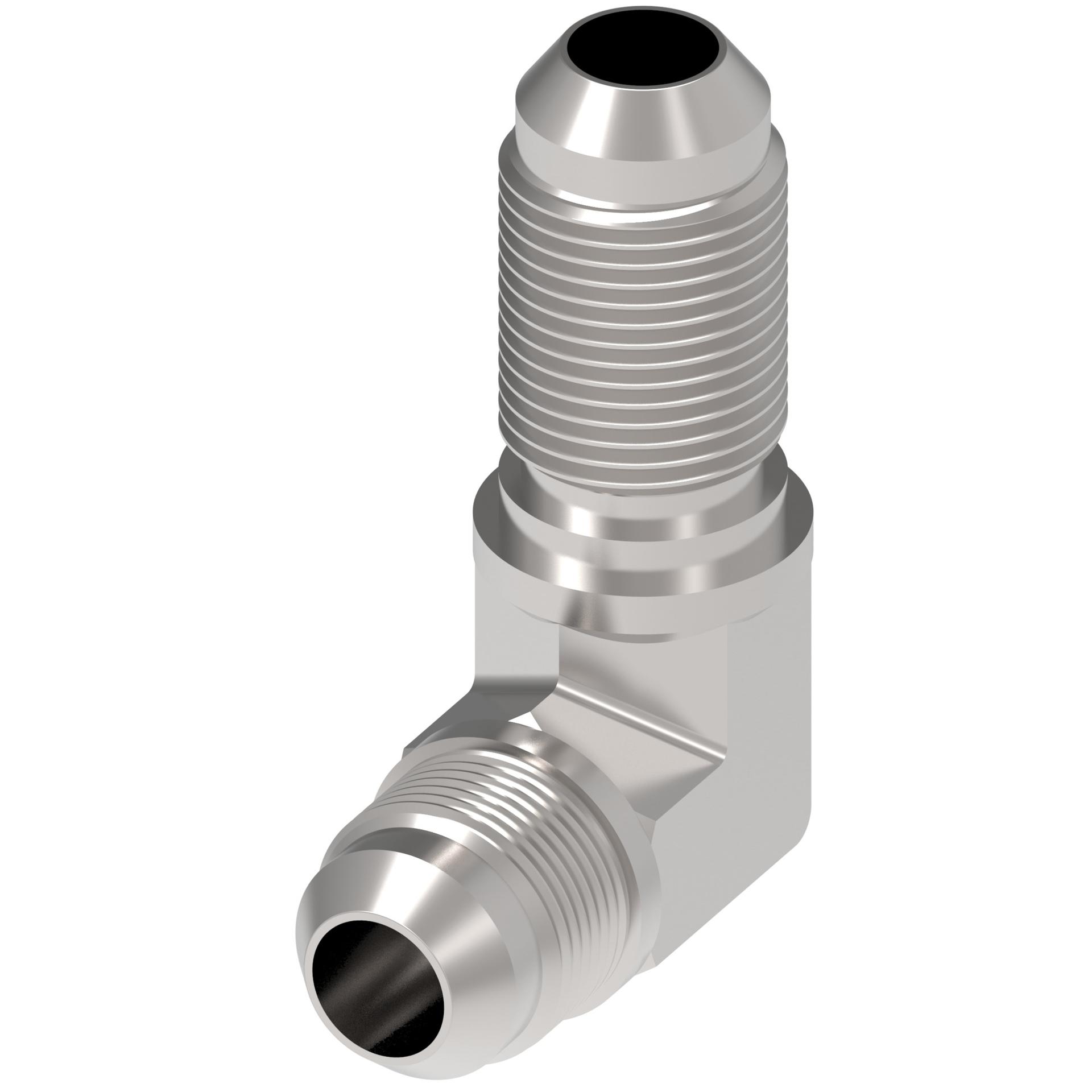

C5525X16
90° Bulkhead Elbow
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Steel adapters
Recommended replacement: 2043-1-16-16S, 2043-16-16S
Product specifications
Characteristic | Value |
---|---|
Angle (shape) | 90 Degree |
Certification(s) | SAE 070701 |
End Size 1 | 1 5/16 IN |
End Size 2 | 1 5/16 IN |
End gender 1 | Male |
End gender 2 | Male |
End type 1 | JIC 37 |
End type 2 | MPT |
Finish/plating | DURA-KOTE |
Inside diameter (bore hole size) | .2969 in |
Item type | JIC 37 Male/MPT Male Elbow Adapter |
Packaged Height | 5.5 in |
Packaged Length | 6.75 in |
Packaged Volume | 250.594 in³ |
Packaged Weight | 2 lb |
Packaged Width | 6.75 in |
Product Height | 1.94 in |
Product Length/Depth | 2.8 in |
Product Volume | 4.563 in³ |
Product Weight | 1 lb |
Product Width | .84 in |
Product material | Carbon steel |
Thread Size 1 | 1 5/16-12 |
Thread Size 2 | 1 5/16-12 |
Thread sealant | No |
UNSPSC | 40183100 |
UPC | 725975744031 |
