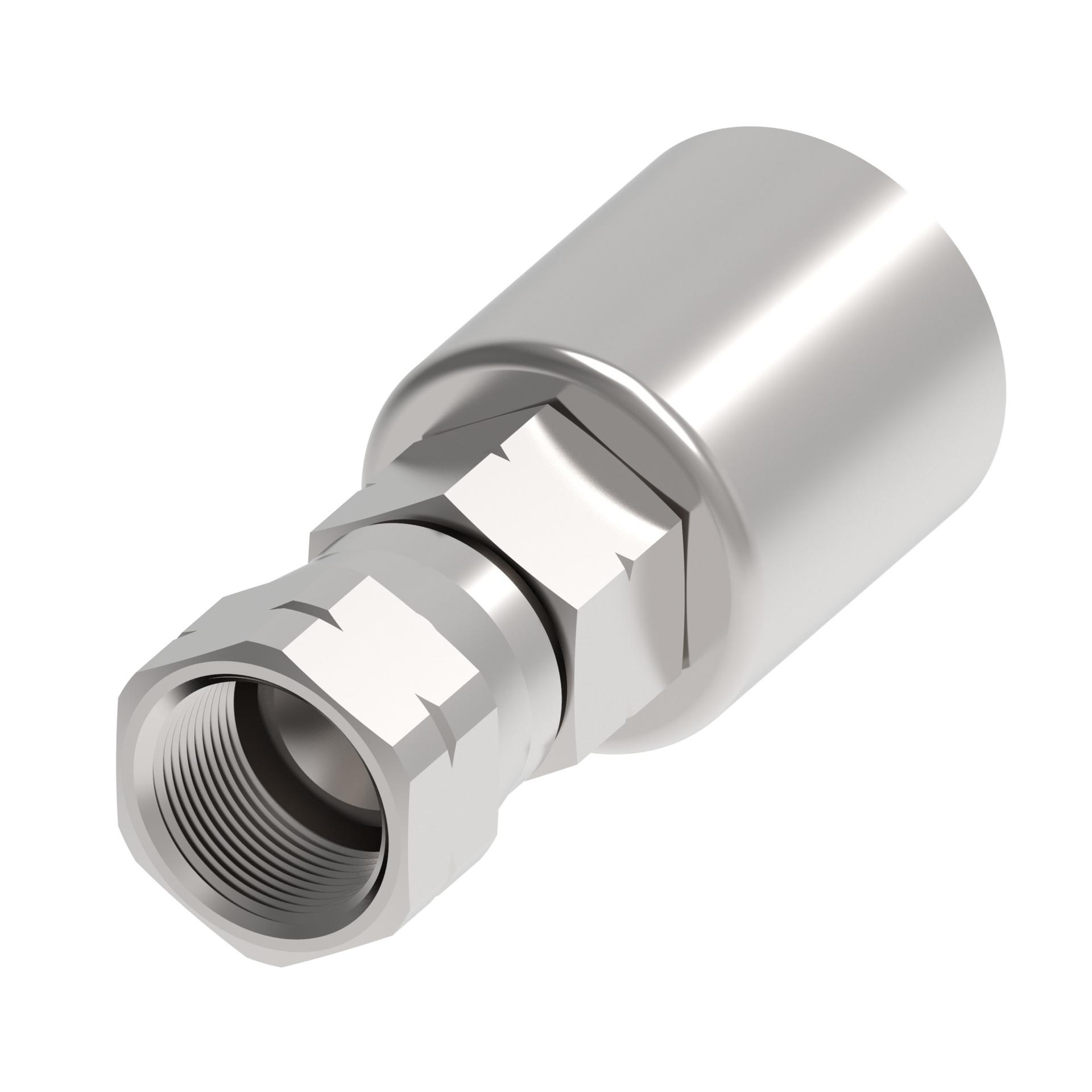

Hose Fittings CNA294-S [RIGHT]

Aeroquip by Danfoss

CNA294-0808-259

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
BrandAeroquip by Danfoss
Compatible hose ID.5 in
Compatible hosesH104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949
Construction styleCrimp
End gender 1Female
End Size 13/4 IN
End type 1SAE
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Hex Size 21.125 in
Hose cut-off factor1.54 in
Hose dash size-8
Inside diameter.26 in
Item typeNipple Assembly
Outside diameter1.22 in
Product Height1.29 in
Product Length/Depth2.49 in
Product materialStainless Steel
Product TypeCrimp Hose Fittings
Product Volume3.614 in³
Product Weight.27 lb
Product Width1.125 in
Sub-brandNone
Thread sealantNo
Thread Size 13/4-16
Trade NameCNA294 Series
