Aeroquip by Danfoss

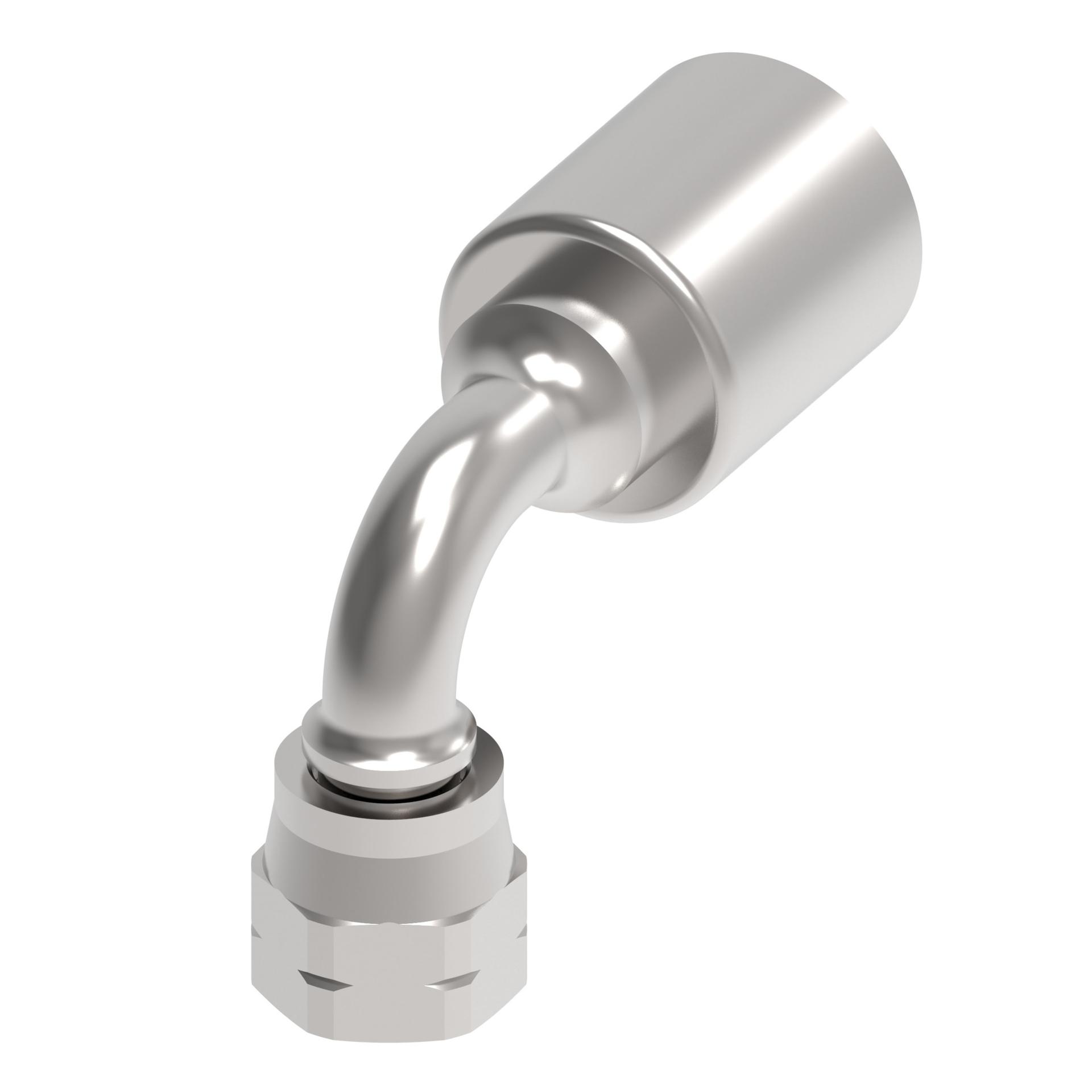

CNA295-0606-259

This product has been discontinued.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Characteristic	Value
Angle (shape)	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID	.375 in
Compatible hoses	H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949
Construction style	Crimp
Drop dimension	1.5
End gender 1	Female
End Size 1	5/8 IN
End type 1	SAE 45
End type 2	Line/Hose/Tube
Feature	Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Hex Size 1	.75 in
Hose cut-off factor	.874 in
Hose dash size	-6
Inside diameter	.21 in
Item type	Nipple Assembly
Outside diameter	1.22 in
Product Height	1.84 in
Product Length/Depth	2.65 in
Product material	Stainless Steel
Product Type	Crimp Hose Fittings
Product Volume	3.657 in³
Product Weight	.21 lb
Product Width	.75 in
Sub-brand	None
Thread sealant	No
Thread Size 1	5/8-18
Trade Name	CNA295 Series
