Aeroquip by Danfoss

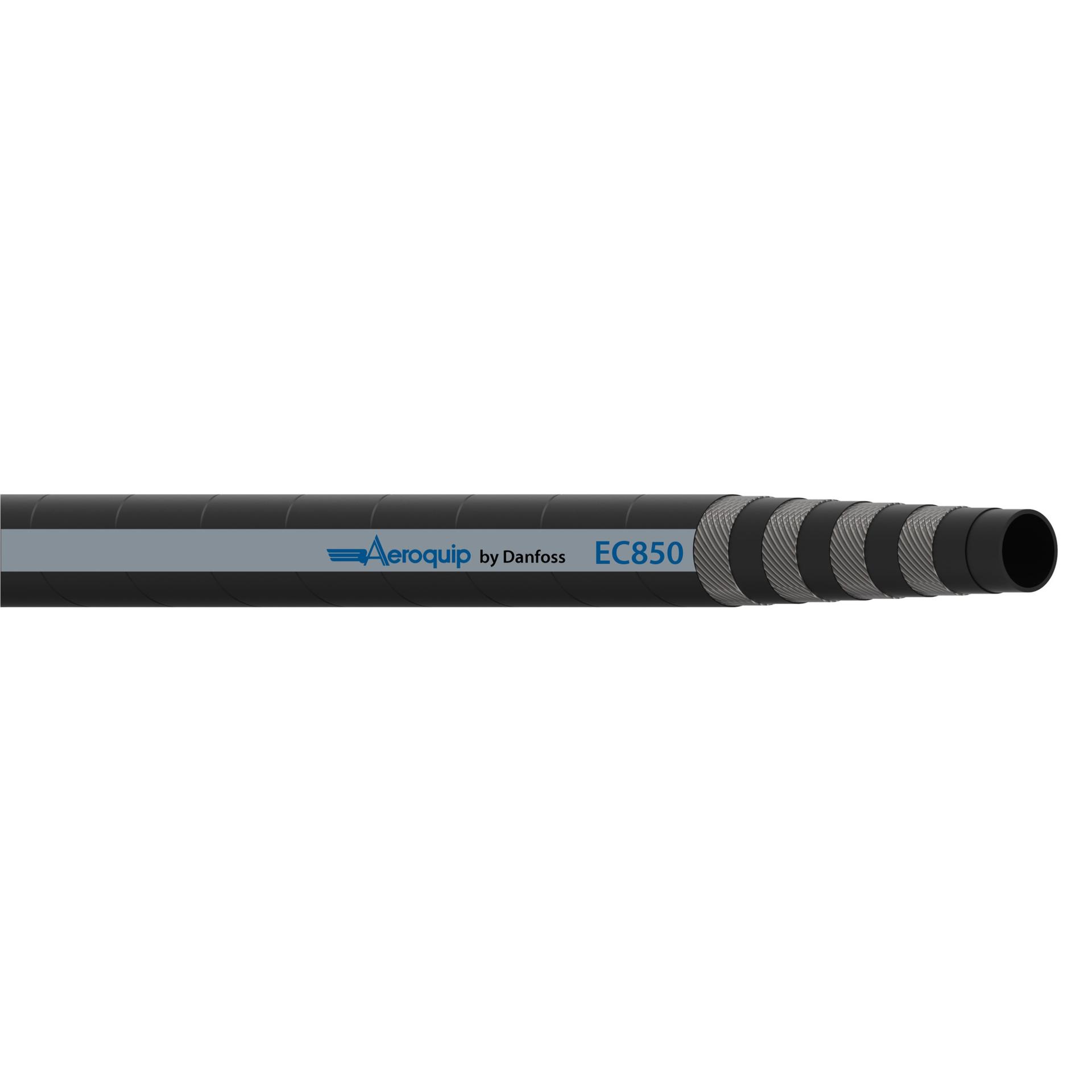

EC850-16MT39
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EC850-16MT39
Product specifications
Characteristic | Value |
|---|---|
| Abrasion resistance | Premium |
| Application | Industrial installation |
| Bend radius - min | 10.63 in |
| Brand | Aeroquip by Danfoss |
| Burst pressure | 29000 Psi |
| Certification(s) | SAE 100R15EN856 Type R15 |
| Compliance(s) | EN45545MSHA Approved |
| Conductivity | Conductive |
| Construction | Multi Spiral |
| Cover material | Nitrile |
| Dash size | -16 |
| Feature | Maximum durability under harsh operating conditionsRobust construction able to withstand highest pressuresSystem engineered to extend hose assembly life |
| Impulse cycle life | 500000 cycles |
| Inside diameter | 1.04 in |
| Lay line style | Transfer Tape |
| Outside diameter | 1.57 in |
| Product Height | 1.57 in |
| Product Length/Depth | 127.96 ft |
| Product Type | Rubber Hydraulic |
| Product Volume | 3784.903 in³ |
| Product Weight | 5.09 lb |
| Product Width | 1.57 in |
| Qualified hose fittings | 1W |
| Reinforcement material | Wire |
| Sub-brand | None |
| Trade Name | EC850 Series |
| Tube material | Nitrile |
| Working pressure | 7250 Psi |
| Working temperature - max | 212 °F |
| Working temperature - min | -40 °F |
