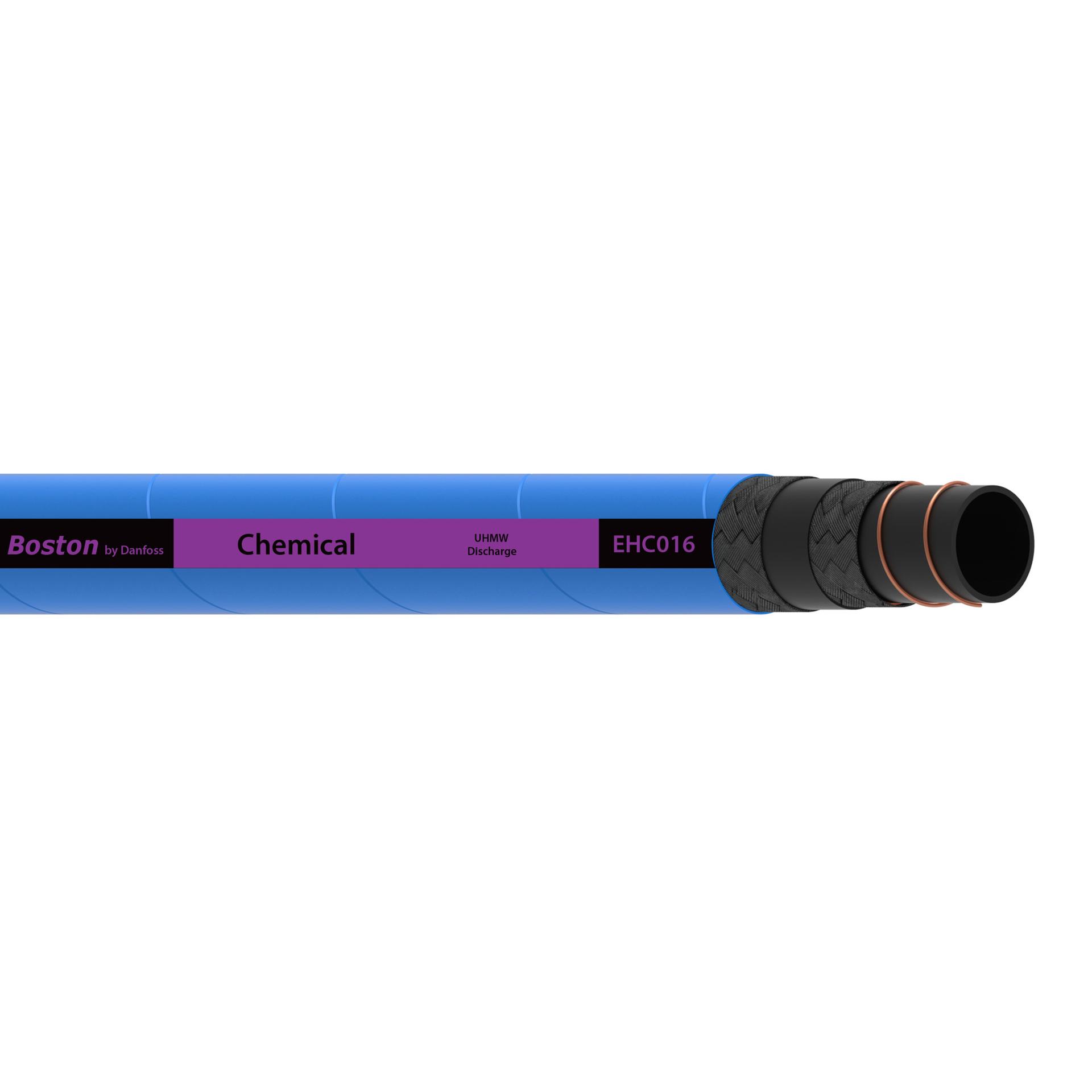

Boston by Danfoss
EHC016-48GN-100
This product has been discontinued and is no longer available.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHC016-48GN-100
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | For discharge of all corrosive chemicals, especially high aromatic solvents. | |
| Bend radius - min | 3.94 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 600 Psi | |
| Color | Green | |
| Construction | 2-ply braid | |
| Cover material | EPDM | |
| Dash size | -48 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 76.2 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | 92 in | |
| Product Height | 92 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 58.778 ft³ | |
| Product Weight | 3765 lb | |
| Product Width | 92 in | |
| Reinforcement material | High-tensile synthetic textile and anti-static copper wire | |
| Sub-brand | None | |
| Trade Name | EHC016 Series | |
| Tube material | UHMW-PE FDA approved material | |
| Tube wall thickness | 1.75 in | |
| Working pressure | 150 Psi | |
| Working temperature - max | 158 °F | |
| Working temperature - min | -40 °F |
