Boston by Danfoss
EHF018-48BU-M40
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

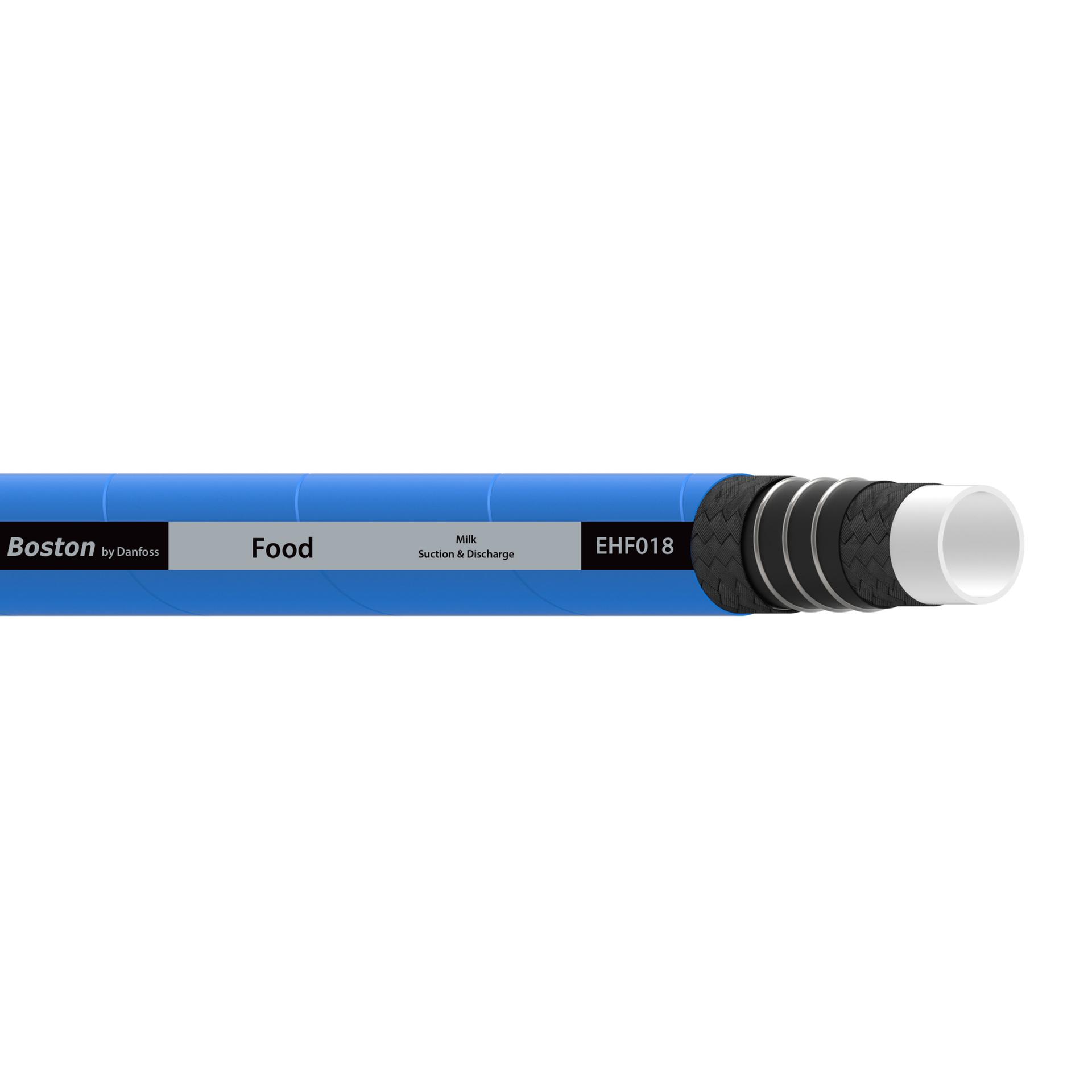

EHF018-48BU-M40
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Suction and discharge of milk for use on tank truck or tank wagon. | |
| Bend radius - min | 14.96 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 300 Psi | |
| Color | Blue | |
| Conductivity | Conductive | |
| Construction | 2-ply braid | |
| Cover material | Synthetic Rubber | |
| Dash size | -48 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 3 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | 3 in | |
| Product Height | 3 in | |
| Product Length/Depth | 12.19 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 1316.52 in³ | |
| Product Weight | 6.7914 lb | |
| Product Width | 3 in | |
| Qualified hose fittings | Cam and groove, Combination nipple | |
| Reinforcement material | High-tensile synthetic textile and steel helix wire | |
| Sub-brand | None | |
| Trade Name | EHF018 Series | |
| Tube material | Vegetable oil resistant NBR | |
| Tube wall thickness | 1.75 in | |
| Vacuum rating | 28 iHg | |
| Working pressure | 100 Psi | |
| Working temperature - max | 176 °F | |
| Working temperature - min | -40 °F |
