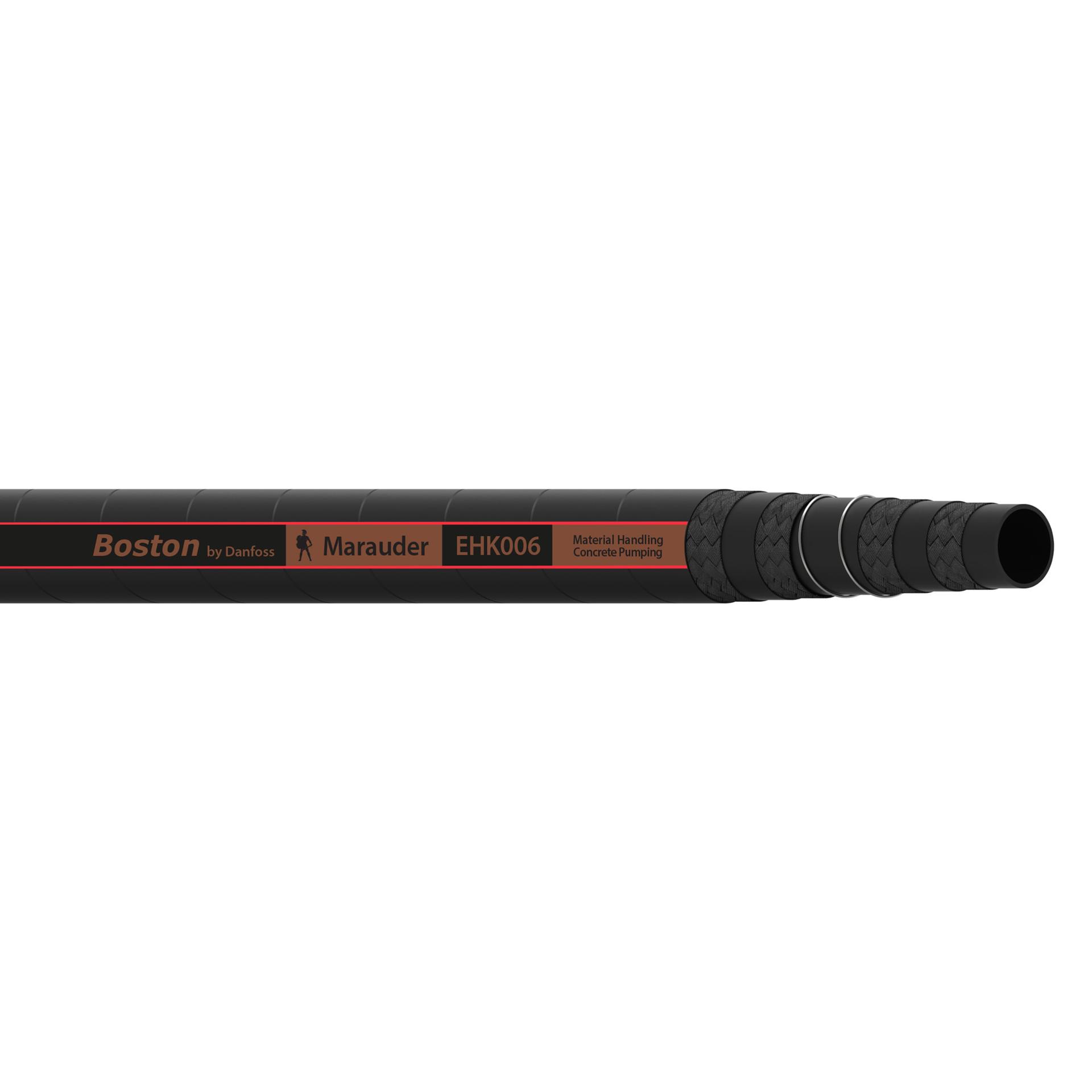

Boston by Danfoss
EHK006-40-M40
This product has been discontinued and is no longer available.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHK006-40-M40
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Application | High pressure hydraulic system with petroleum and water glycol base fluids for lubricating oils and water | |
| Bend radius - min | 3.54 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 2581 Psi | |
| Color | Black | |
| Conductivity | Non-Conductive | |
| Construction | 4 Ply | |
| Cover material | Polyethelene | |
| Dash size | -40 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 1.96 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | 2.83 in | |
| Product Height | 1.96 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 46.099 in³ | |
| Product Weight | 1.61 lb | |
| Product Width | 1.96 in | |
| Reinforcement material | High-tensile synthetic textile and anti-static copper wire | |
| Sub-brand | None | |
| Trade Name | Marauder | |
| Tube material | Polyester | |
| Tube wall thickness | 1.96 in | |
| Working pressure | 1233 Psi | |
| Working temperature - max | 212 °F | |
| Working temperature - min | -40 °F |
