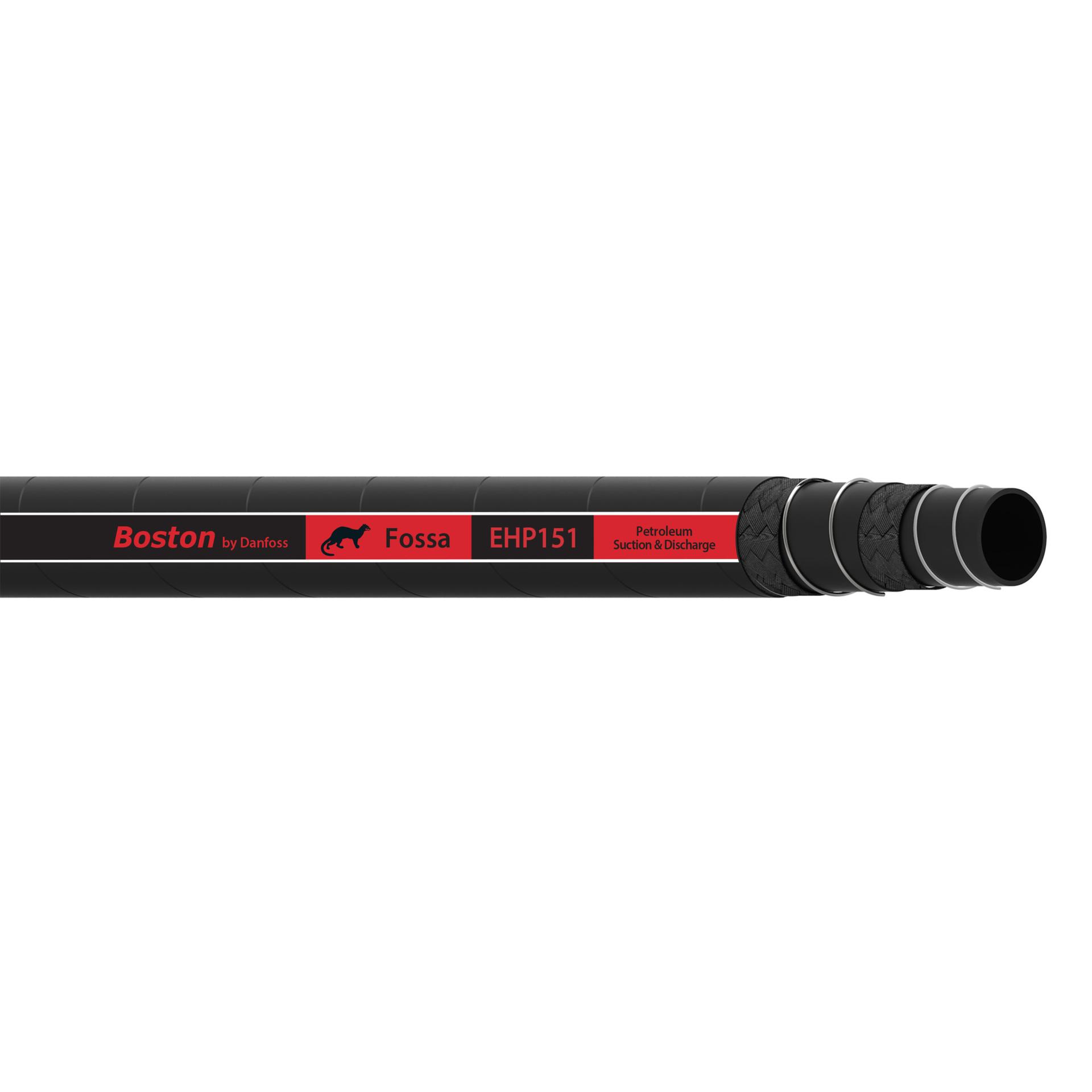

Boston by Danfoss
EHP151-128BK-100
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHP151-128BK-100
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Suction and discharge of petroleum products with aromatic content up to 50% | |
| Bend radius - min | 43.31 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 450 Psi | |
| Color | Black | |
| Conductivity | Conductive | |
| Construction | 2-ply braid | |
| Cover material | Nitrile | |
| Dash size | -128 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 8 in | |
| Lay line style | Embossed | |
| Outside diameter | 9.07 in | |
| Product Height | 9.07 in | |
| Product Length/Depth | 100 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 98717.88 in³ | |
| Product Weight | 965 lb | |
| Product Width | 9.07 in | |
| Reinforcement material | High-tensile synthetic textile with helical wire and anti-static copper wire | |
| Sub-brand | None | |
| Trade Name | Fossa | |
| Tube material | Nitrile | |
| Tube wall thickness | .3585 in | |
| Vacuum rating | 24 iHg | |
| Working pressure | 150 Psi | |
| Working temperature - max | 180 °F | |
| Working temperature - min | -31 °F |
