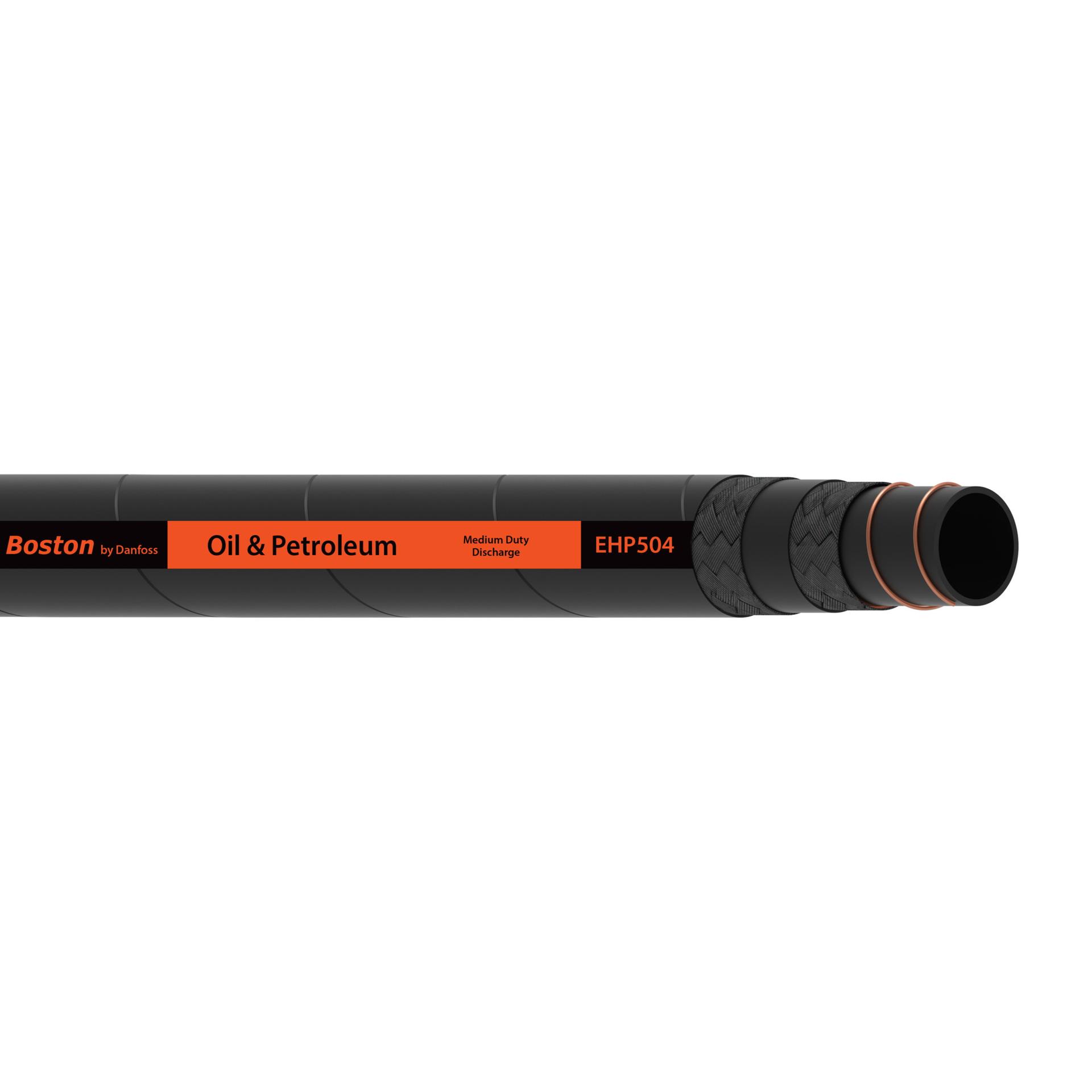

Boston by Danfoss
EHP504-24-M40
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHP504-24-M40
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | For delivery of petroleum products with aromatic content up to 50%. | |
| Bend radius - min | 440 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 750 Psi | |
| Color | Black | |
| Conductivity | Conductive | |
| Construction | 2-ply braid | |
| Cover material | Synthetic Rubber | |
| Dash size | -24 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 1.56 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | 1.93 in | |
| Product Height | 1.93 in | |
| Product Length/Depth | 40 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 1787.952 in³ | |
| Product Weight | 2.14 lb | |
| Product Width | 1.93 in | |
| Qualified hose fittings | Cam and groove, Combination nipple | |
| Reinforcement material | High-tensile synthetic textile with helical wire and anti-static copper wire | |
| Sub-brand | None | |
| Trade Name | EHP504 Series | |
| Tube material | Nitrile | |
| Tube wall thickness | 6 in | |
| Working pressure | 250 Psi | |
| Working temperature - max | 158 °F | |
| Working temperature - min | -31 °F |
