Boston by Danfoss

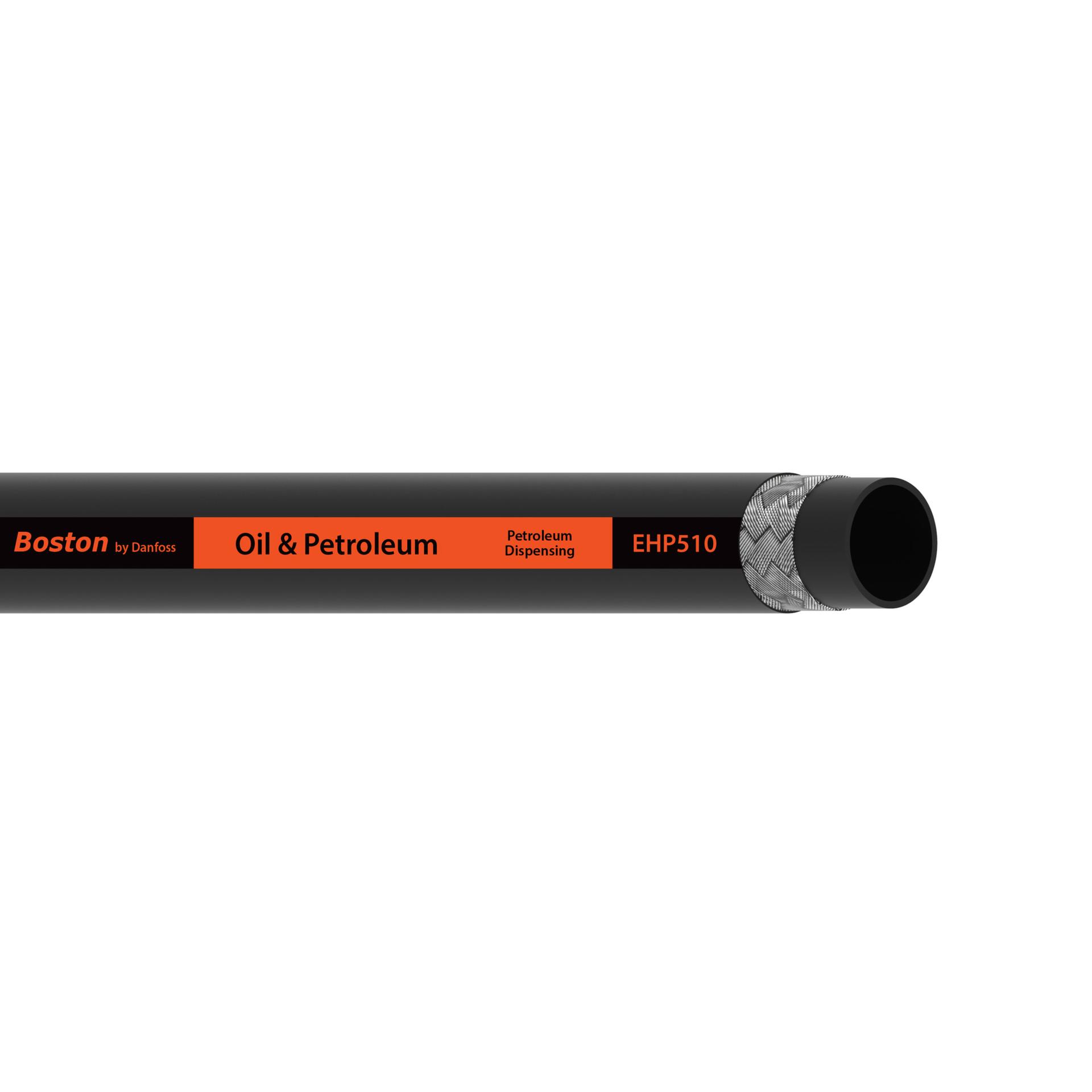

EHP510-16RD-M40
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHP510-16RD-M40
Product specifications
Characteristic | Value |
|---|---|
| Application | For all types of gasoline dispensing applications (regular, premium gasoline and diesel). |
| Bend radius - min | 5.12 in |
| Brand | Boston by Danfoss |
| Burst pressure | 696 Psi |
| Color | Red |
| Conductivity | Conductive |
| Construction | 1 Ply Braid |
| Cover material | Synthetic Rubber |
| Dash size | -16 |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability |
| Inside diameter | 1.04 in |
| Lay line style | Ink Transfer |
| Outside diameter | 1.44 in |
| Product Height | 1.44 in |
| Product Length/Depth | 40 ft |
| Product Type | Industrial Hose |
| Product Volume | 995.328 in³ |
| Product Weight | 1.9 lb |
| Product Width | 1.44 in |
| Qualified hose fittings | Male NPT |
| Reinforcement material | Steel Wire |
| Sub-brand | None |
| Trade Name | EHP510 Series |
| Tube material | Nitrile |
| Tube wall thickness | 6 in |
| Working pressure | 232 Psi |
| Working temperature - max | 131 °F |
| Working temperature - min | -22 °F |
