Boston by Danfoss

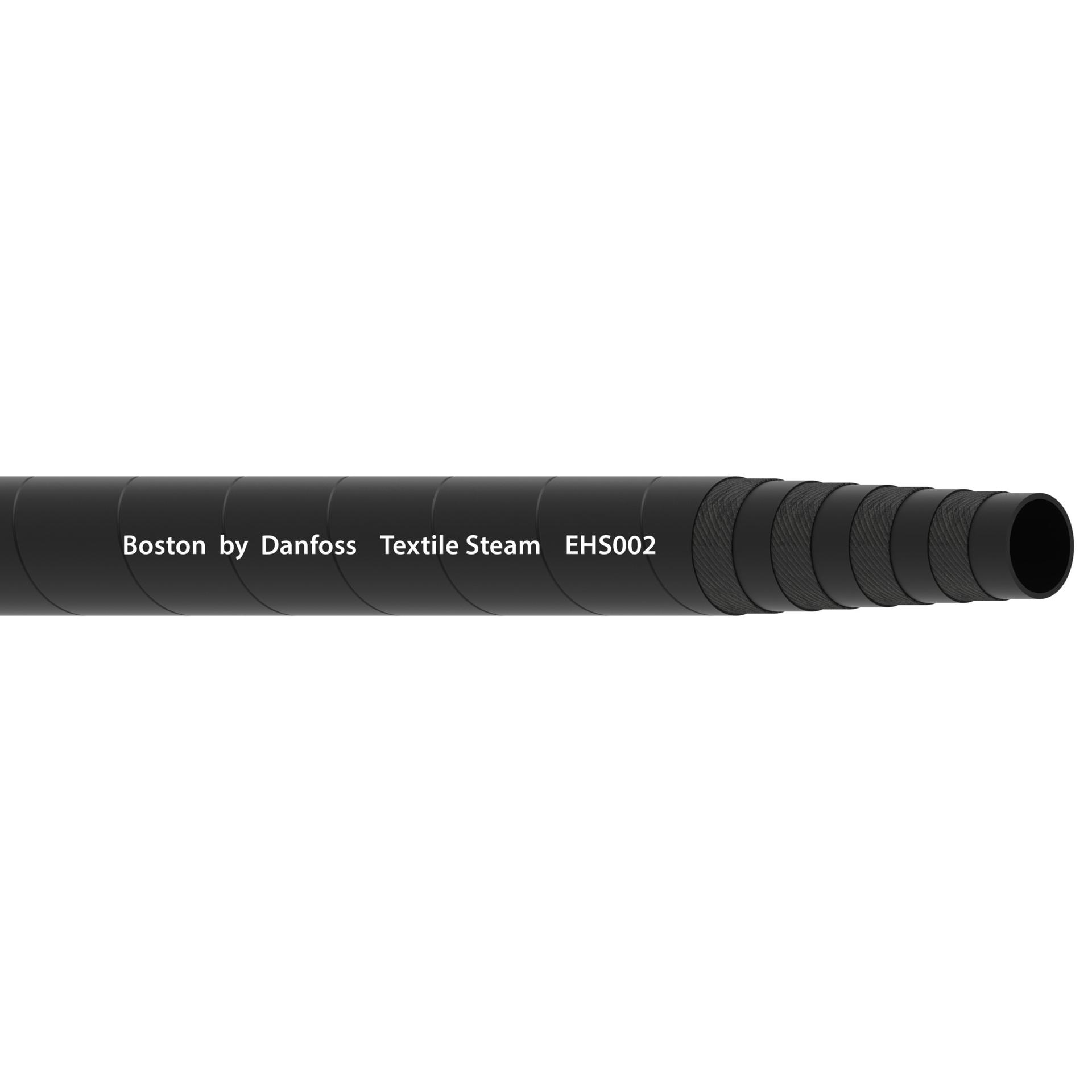

EHS002-28
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHS002-28
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Application | For general saturated steam services at a maximum working pressure os 7 bars (102 psi). | |
| Bend radius - min | 11.8 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 1015 Psi | |
| Color | Black | |
| Construction | 4 Spiral | |
| Cover material | Synthetic Rubber | |
| Cover style | Pin-Pricked | |
| Dash size | -28 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 1.75 in | |
| Lay line style | Embossed | |
| Outside diameter | 2.36 in | |
| Product Height | 2.36 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 66.835 in³ | |
| Product Weight | .94 lb | |
| Product Width | 2.36 in | |
| Reinforcement material | High-tensile synthetic textile | |
| Sub-brand | None | |
| Trade Name | EHS002 Series | |
| Tube material | EPM Blend | |
| Tube wall thickness | .4252 in | |
| Working pressure | 102 Psi | |
| Working temperature - max | 329 °F | |
| Working temperature - min | -40 °F |
