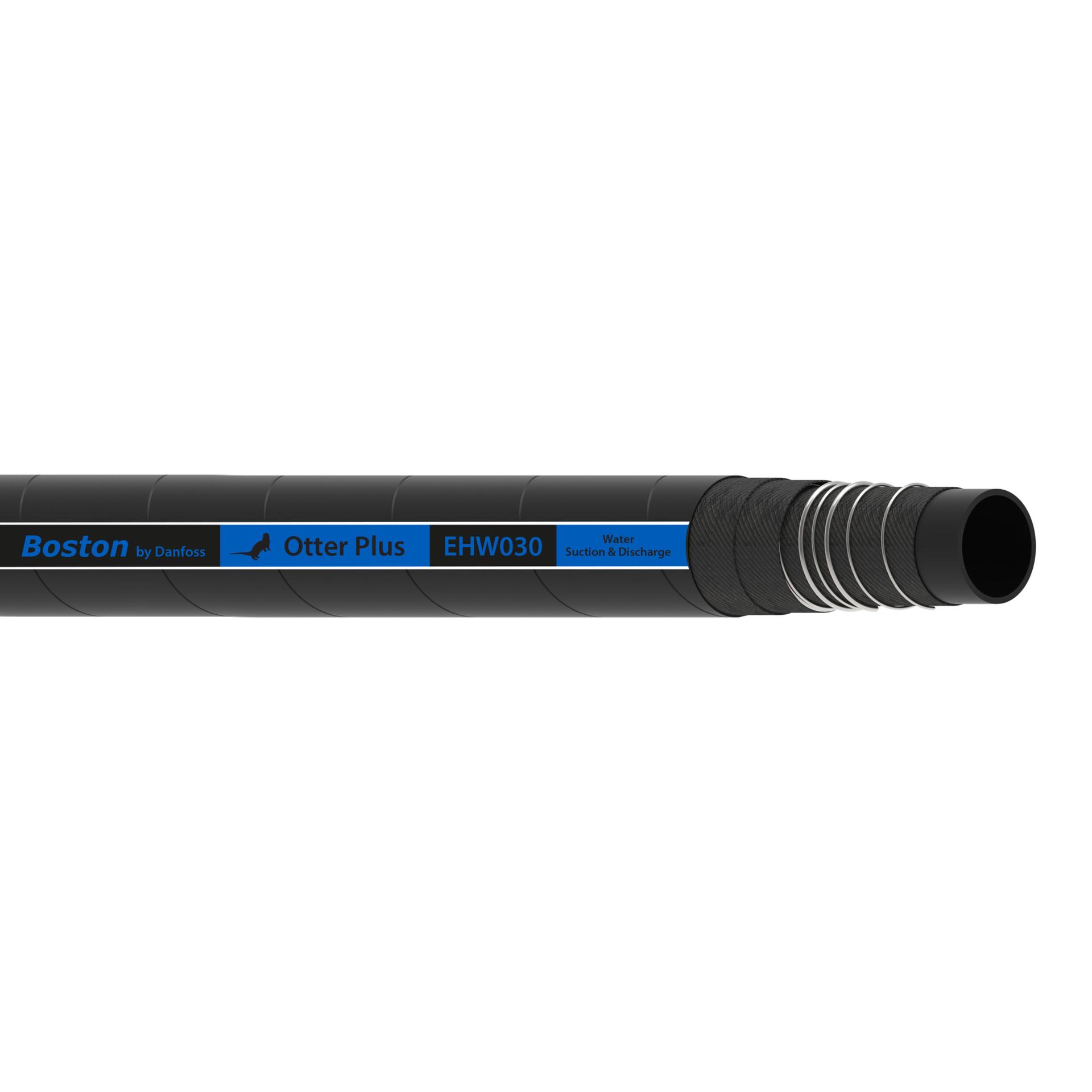

Boston by Danfoss
EHW030-80-100
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHW030-80-100
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Heavy duty transfer of water, pumping and suction, discharge of water and slurries. | |
| Bend radius - min | 22.83 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 1000 Psi | |
| Color | Black | |
| Construction | Extruded | |
| Cover material | EPDM | |
| Dash size | -80 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 5 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | 5.76 in | |
| Product Height | 5.76 in | |
| Product Length/Depth | 100 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 39813.12 in³ | |
| Product Weight | 425 lb | |
| Product Width | 5.76 in | |
| Qualified hose fittings | Cam and groove, Combination nipple | |
| Reinforcement material | High-tensile synthetic textile and steel helix wire | |
| Sub-brand | None | |
| Trade Name | EHW030 Series | |
| Tube material | EPDM | |
| Tube wall thickness | .42 in | |
| UPC | 639789345356 | |
| Vacuum rating | 30 iHg | |
| Working pressure | 250 Psi | |
| Working temperature - max | 248 °F | |
| Working temperature - min | -40 °F |
