Aeroquip by Danfoss

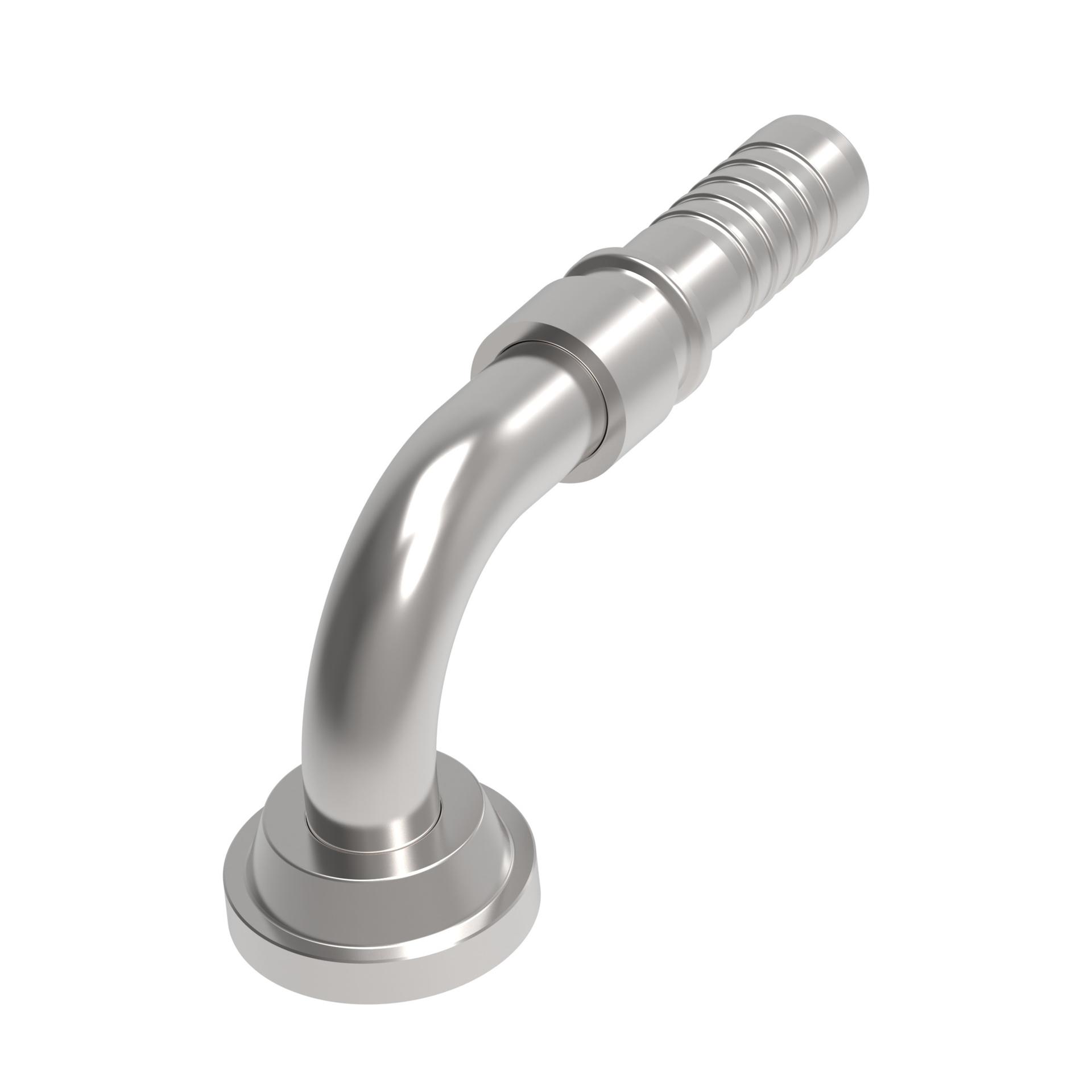

EJ2221-1612-001S
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EJ2221-1612-001S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 100 Degree | |
| Brand | Aeroquip by Danfoss | |
| Compatible hoses | H430 | |
| Construction style | Crimp | |
| Drop dimension | 2.33 | |
| End Size 1 | 3/4 IN | |
| End Size 2 | 1 IN | |
| End type 1 | Flanged | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life | |
| Finish/plating | Dura-Kote | |
| Hose cut-off factor | 2.81 in | |
| Inside diameter | .56 in | |
| Item type | Nipple Assembly | |
| Packaged Weight | .675 lb | |
| Product Height | 2.38 in | |
| Product Length/Depth | 5.79 in | |
| Product material | Carbon steel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 24.115 in³ | |
| Product Weight | .675 lb | |
| Product Width | 1.75 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | EJ2221 Series |
