Danfoss Everflex
EJ9354-0404S
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

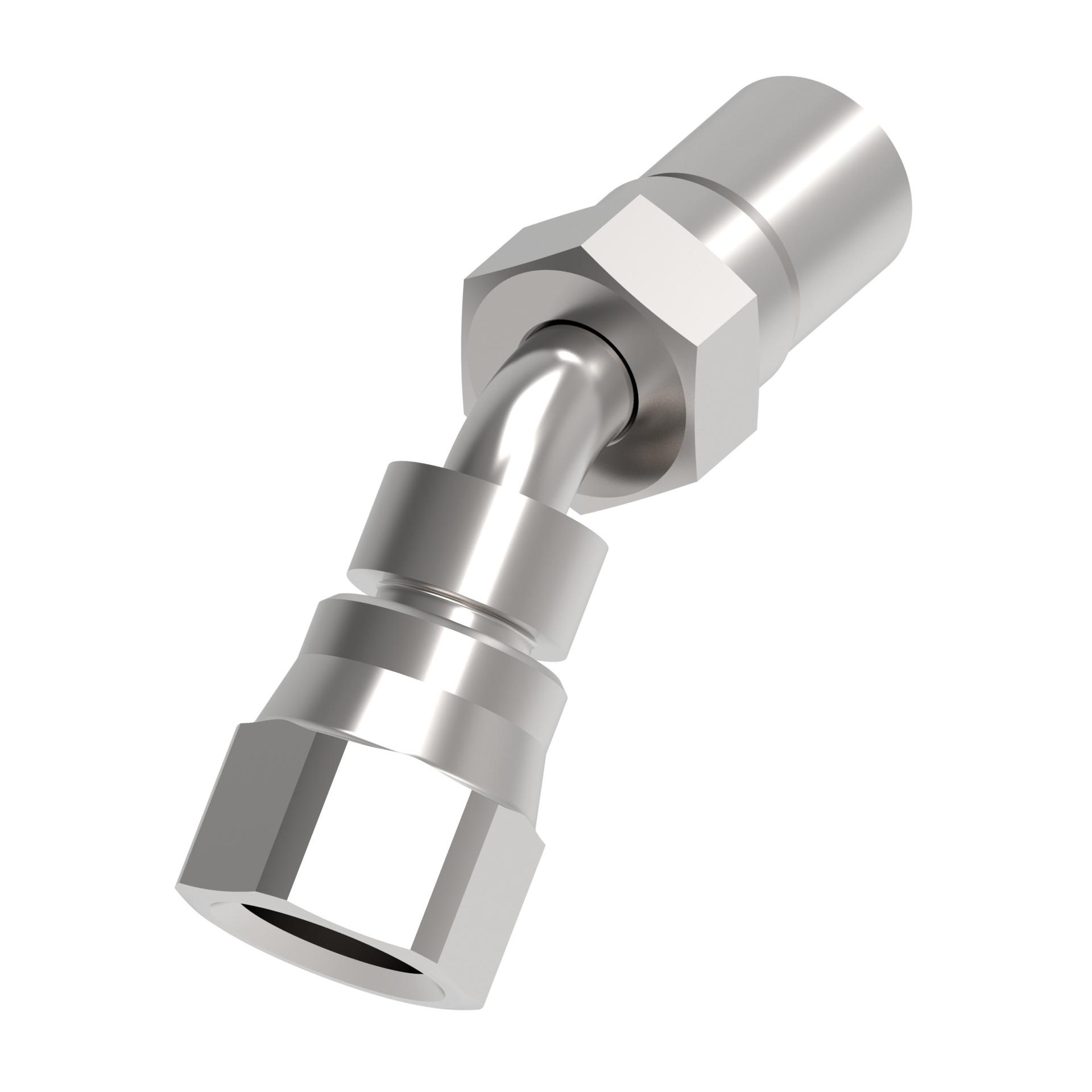

EJ9354-0404S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 45 Degree | |
| Brand | Danfoss | |
| Compatible hose ID | .25 in | |
| Construction style | Swage | |
| Drop dimension | .49 | |
| End gender 1 | Female | |
| End Size 1 | 7/16 IN | |
| End type 1 | SAE 37 | |
| End type 2 | Line/Hose/Tube | |
| Feature | Optimized inventory to mix and match components Dura-Kote plating for superior corrosion resistance Wide range of styles, configurations | |
| Finish/plating | DURA-KOTE | |
| Hex Size 1 | .56 in | |
| Hex Size 2 | .5 in | |
| Hose cut-off factor | .91 in | |
| Hose dash size | -4 | |
| Inside diameter | .16 in | |
| Item type | Fitting Assembly | |
| Packaged Height | 5 in | |
| Packaged Length | 8 in | |
| Packaged Volume | 160 in³ | |
| Packaged Weight | 1.063 lb | |
| Packaged Width | 4 in | |
| Product Height | 1.39 in | |
| Product Length/Depth | 2.19 in | |
| Product material | Carbon Steel | |
| Product Type | Swage Hose Fittings | |
| Product Volume | 1.705 in³ | |
| Product Weight | .06 lb | |
| Product Width | .56 in | |
| Sub-brand | Everflex | |
| Thread sealant | No | |
| Thread Size 1 | 7/16-20 | |
| Trade Name | Everswage |
