Danfoss
EJ9440-1216S
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

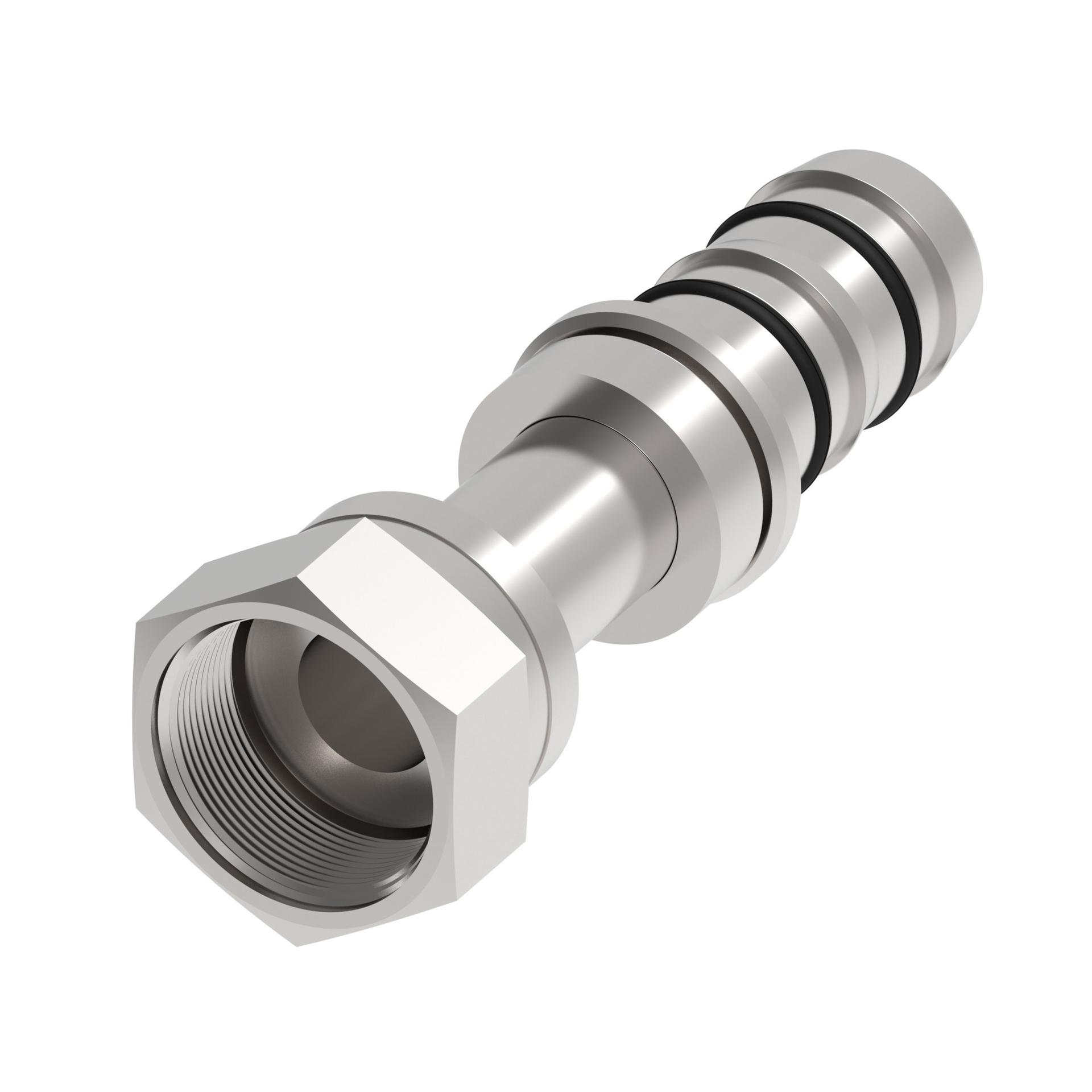

EJ9440-1216S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Danfoss | |
| Compatible hose ID | 1 in | |
| Compatible hoses | GH001 | |
| End gender 1 | Female | |
| End Size 1 | 1 3/16 IN | |
| End Size 2 | 1 IN | |
| End type 1 | ORS | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Finish/plating | Dura-Kote | |
| Hex Size 1 | 1.375 in | |
| Hose cut-off factor | 2.17 in | |
| Hose dash size | -16 | |
| Inside diameter | .61 in | |
| Item type | Fitting Assembly | |
| Packaged Height | 5 in | |
| Packaged Length | 8 in | |
| Packaged Volume | 160 in³ | |
| Packaged Width | 4 in | |
| Product Height | 1.58 in | |
| Product Length/Depth | 4.41 in | |
| Product material | Carbon steel | |
| Product Type | A/C Refrigeration Products | |
| Product Volume | 9.581 in³ | |
| Product Width | 1.375 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1 3/16-12 | |
| Trade Name | E-Z Clip System |
