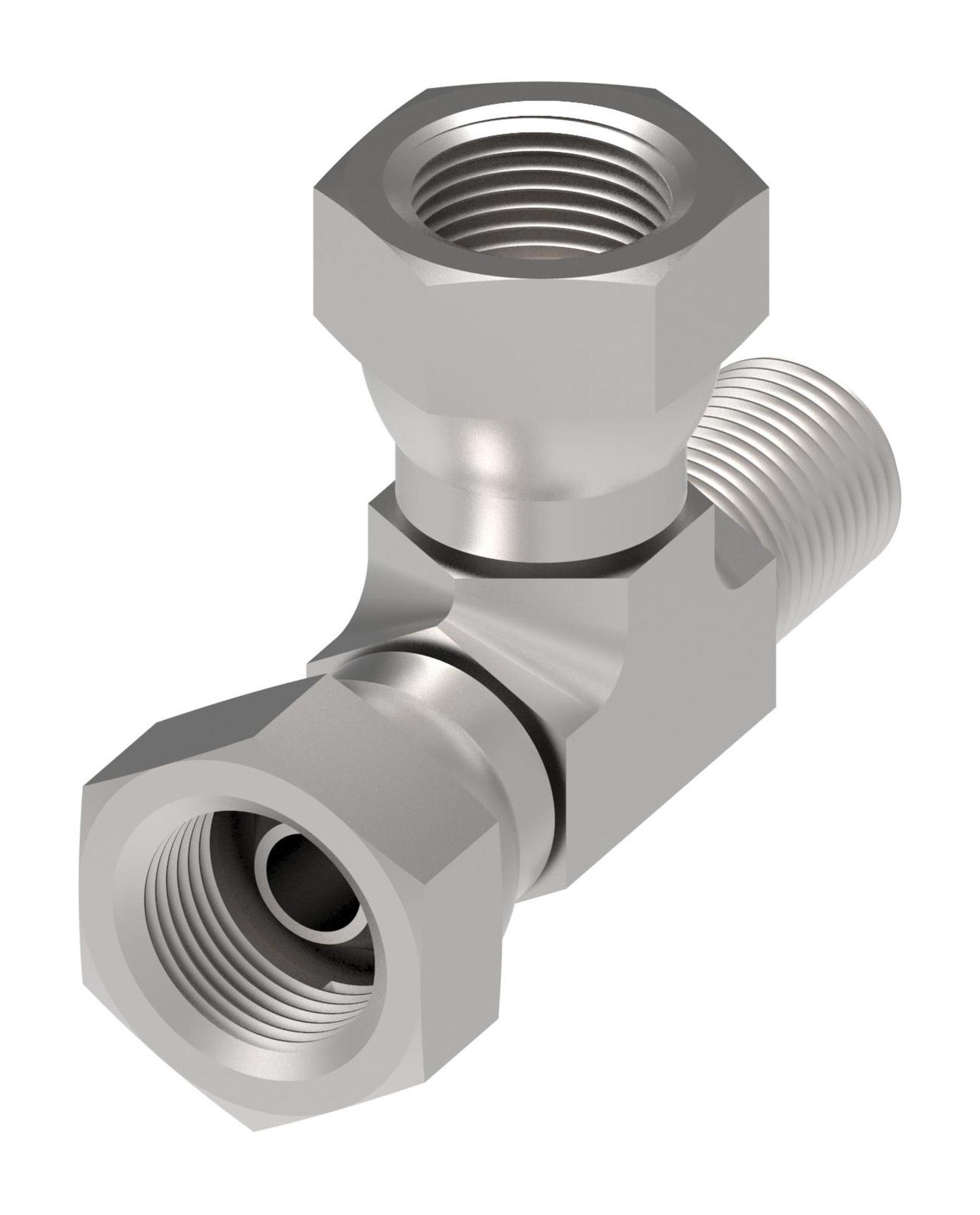

Tee/Y Adapters FB-04Z (RIGHT)

Winner by Danfoss

FB-16Z

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Description
Angle (shape)Tee
BrandWinner by Danfoss
Drop dimension53.7
End gender 1Female
End gender 2Female
End Gender 3Male
End Size 11 IN
End Size 21 IN
End Size 31 IN
End type 1BSPP
End type 2BSPP
End Type 3BSPP
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingCr3+Zinc
Hex Size 133 mm
Hex Size 241 mm
Hex Size 341 mm
Item typeBSPP Female/BSPP Female/BSPP Male Tee Adapter
Product Height70.2 mm
Product Length/Depth95.7 mm
Product materialCarbon Steel
Product TypeTee/Y Adapters
Product Volume275.444 cm³
Product Weight580 g
Product Width41 mm
Sub-brandNone
Thread sealantNo
Thread Size 1G1-11
Thread Size 2G1-11
Thread Size 31-11
Trade NameFB Series
