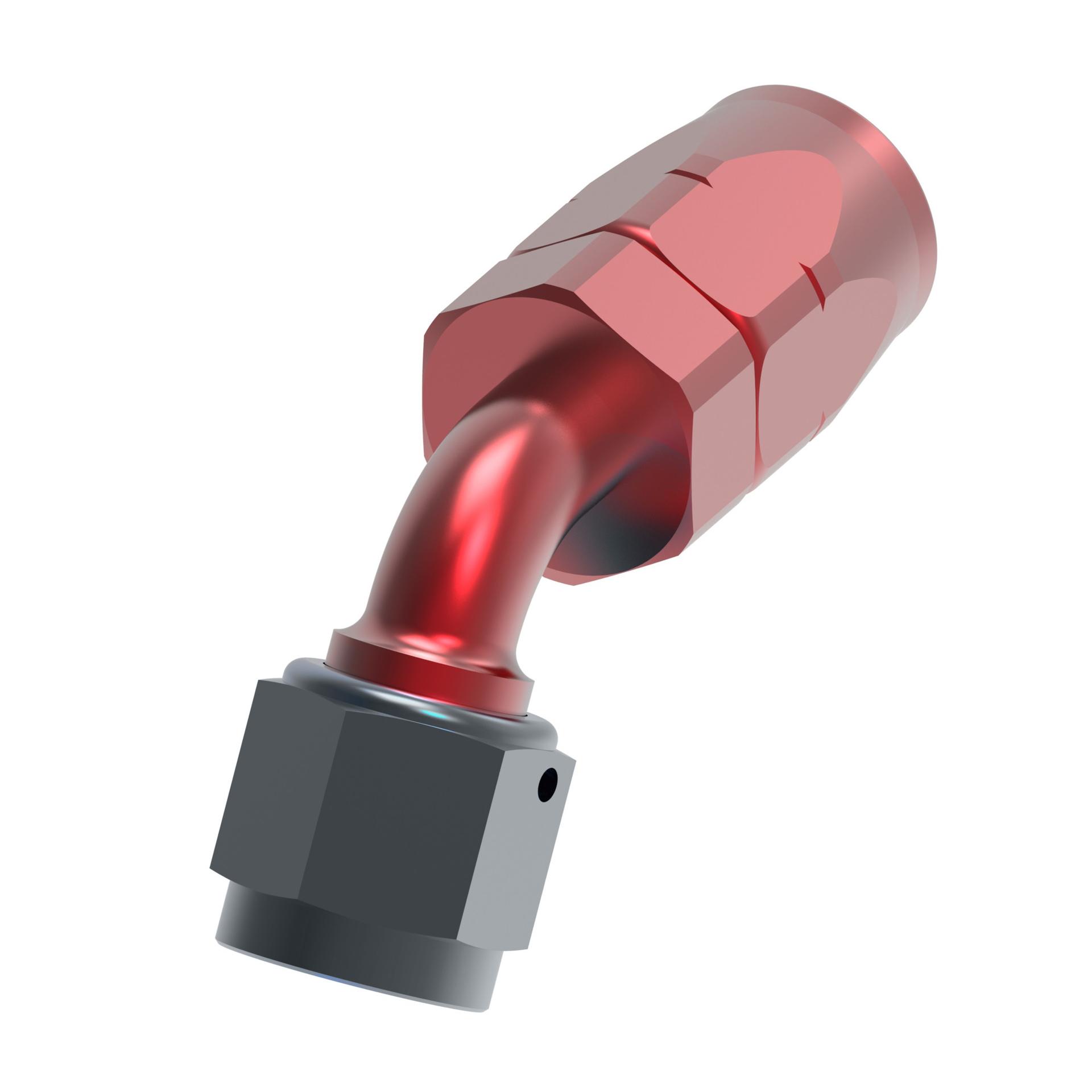

Aeroquip Performance by Danfoss Reusable Hose Fittings SAE 37° JIC/AN 60° Non-swivel FCM1148 (RIGHT)

Aeroquip Performance by Danfoss

FBM1148

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)60 Degree
BrandAeroquip Performance by Danfoss
Compatible hose ID1.25 in
Compatible hosesFBA
Construction styleReusable
Drop dimension1.152
End gender 1Female
End Size 11 5/8 IN
End type 1SAE 37
End type 2Line/Hose/Tube
FeatureSystem engineered to extend hose assembly lifeHigh performance to increase uptime in critical operationsSuperior durability made to last
Finish/platingRed and Blue anodized
Hex Size 11.8125 in
Hex Size 21.75 in
Hose cut-off factor2.15 in
Hose dash size-20
Inside diameter.99 in
Item typeFitting Assembly
Outside diameter1.8125 in
Packaged Height6.5 in
Packaged Length9 in
Packaged Volume819 in³
Packaged Weight1 lb
Packaged Width14 in
Product Height2.8 in
Product Length/Depth4.37 in
Product materialCarbon Steel
Product TypeReusable Hose Fittings
Product Volume22.178 in³
Product Weight1 lb
Product Width1.8125 in
Sub-brandNone
Thread sealantNo
Thread Size 11 5/8-12
Trade NameNone
UPC678146060266
