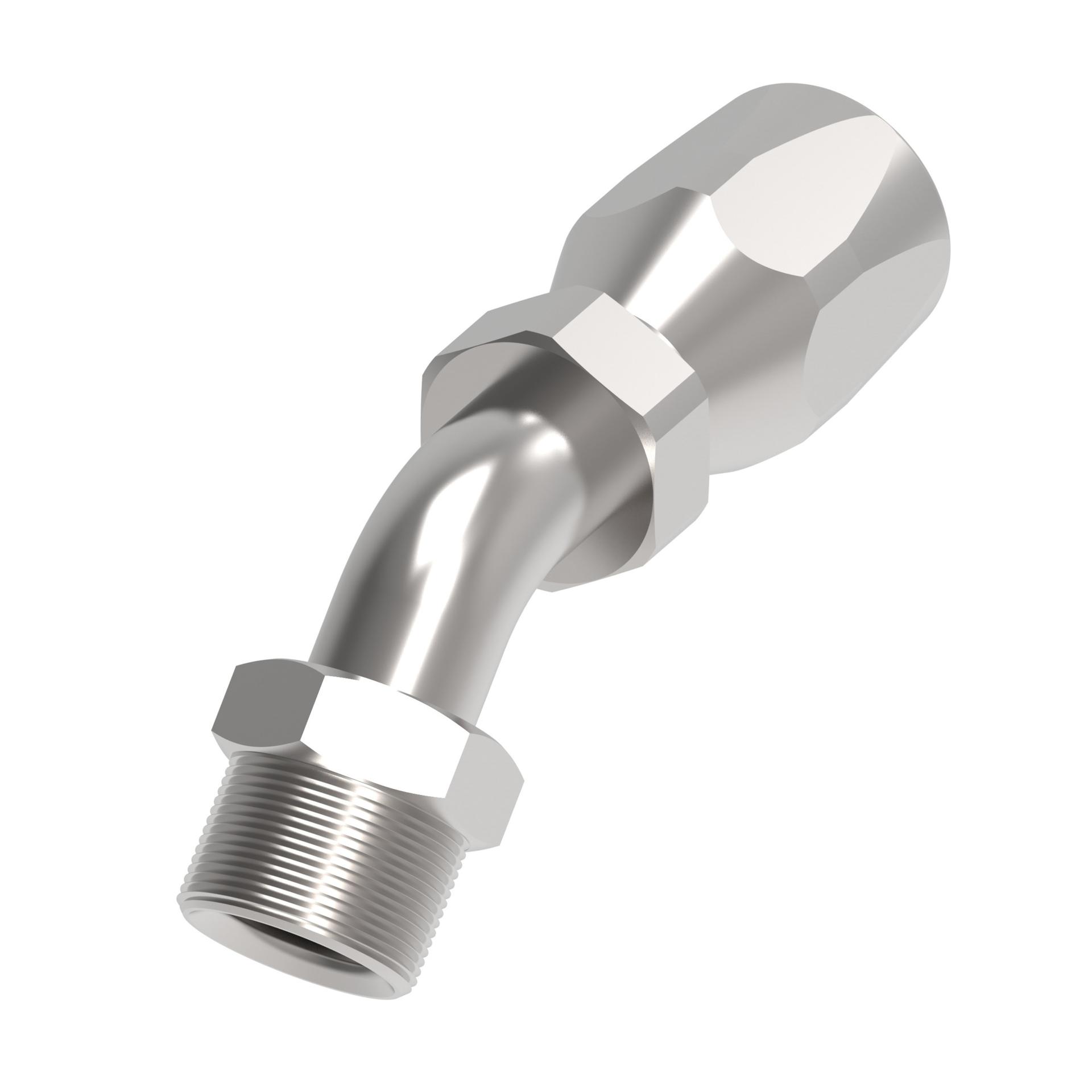

Hose Fittings FBM1382 [RIGHT]

Aeroquip Performance by Danfoss

FBM1383

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)45 Degree
BrandAeroquip Performance by Danfoss
Compatible hose ID.5 in
Construction styleReusable
End gender 1Male
End Size 13/4 IN
End type 1SAE
End type 2Line/Hose/Tube
FeatureSystem engineered to extend hose assembly lifeHigh performance to increase uptime in critical operationsSuperior durability made to last
Hex Size 1.9375 in
Hex Size 2.75 in
Hose dash size-8
Item typeFitting Assembly
Packaged Height6.5 in
Packaged Length9 in
Packaged Volume819 in³
Packaged Weight1.2477 lb
Packaged Width14 in
Product Height.99 in
Product Length/Depth3.39 in
Product materialCarbon Steel
Product TypeReusable Hose Fittings
Product Volume3.155 in³
Product Weight.2477 lb
Product Width.94 in
Sub-brandNone
Thread sealantNo
Thread Size 13/4-18
Trade NameNone
UPC678146118059
