Aeroquip by Danfoss

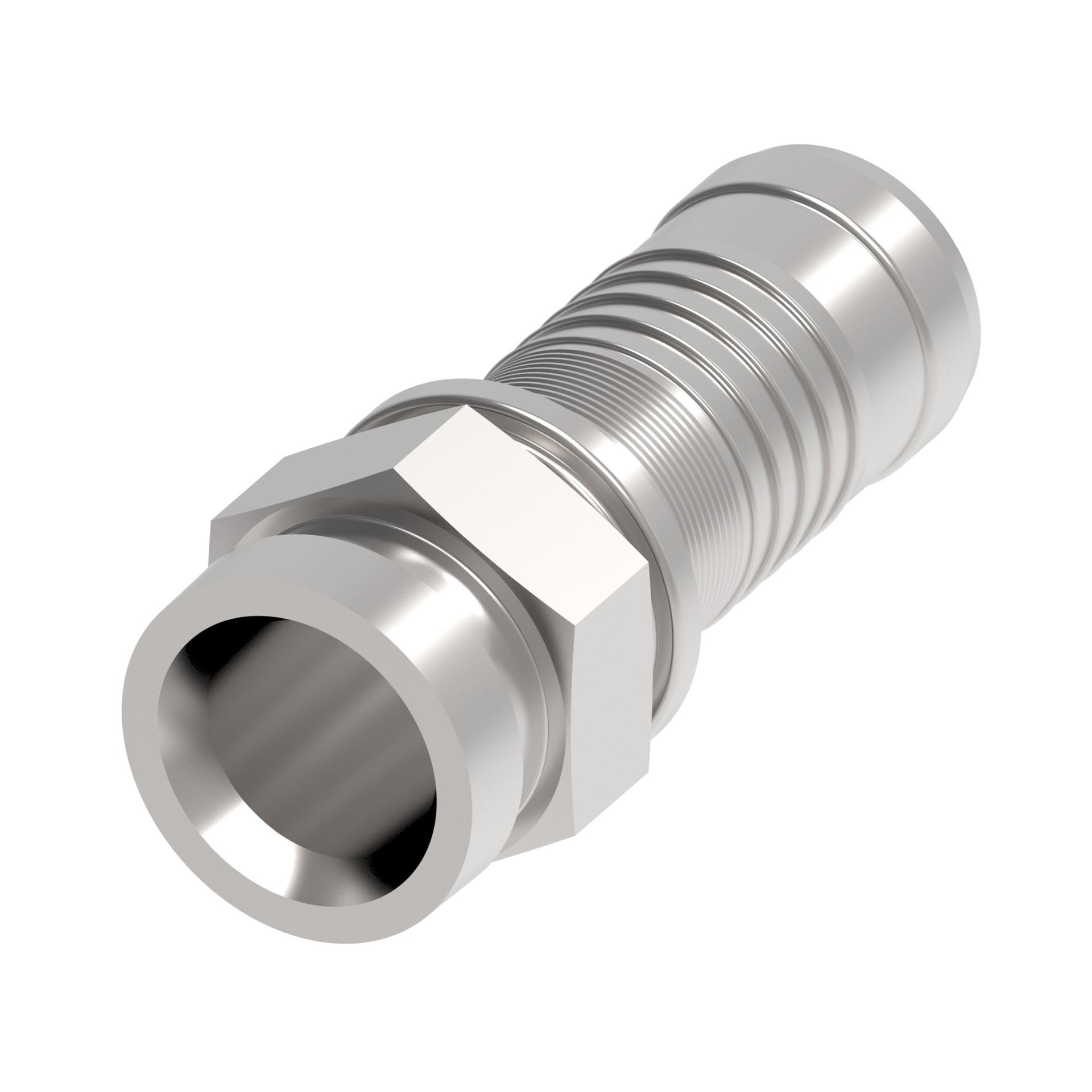

FC1412-1616S
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC1412-1616S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 1 in | |
| Compatible hoses | FC323 | |
| Construction style | Crimp | |
| End type 1 | SAE 37 | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life | |
| Finish/plating | Dura-Kote | |
| Hex Size 1 | 1.25 in | |
| Hose cut-off factor | 1.319 in | |
| Hose dash size | -16 | |
| Inside diameter | .77 in | |
| Item type | Nipple | |
| Packaged Weight | .39 lb | |
| Product Height | 1.25 in | |
| Product Length/Depth | 3.2 in | |
| Product material | Carbon steel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 5 in³ | |
| Product Weight | .39 lb | |
| Product Width | 1.25 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | FC1412 Series |
