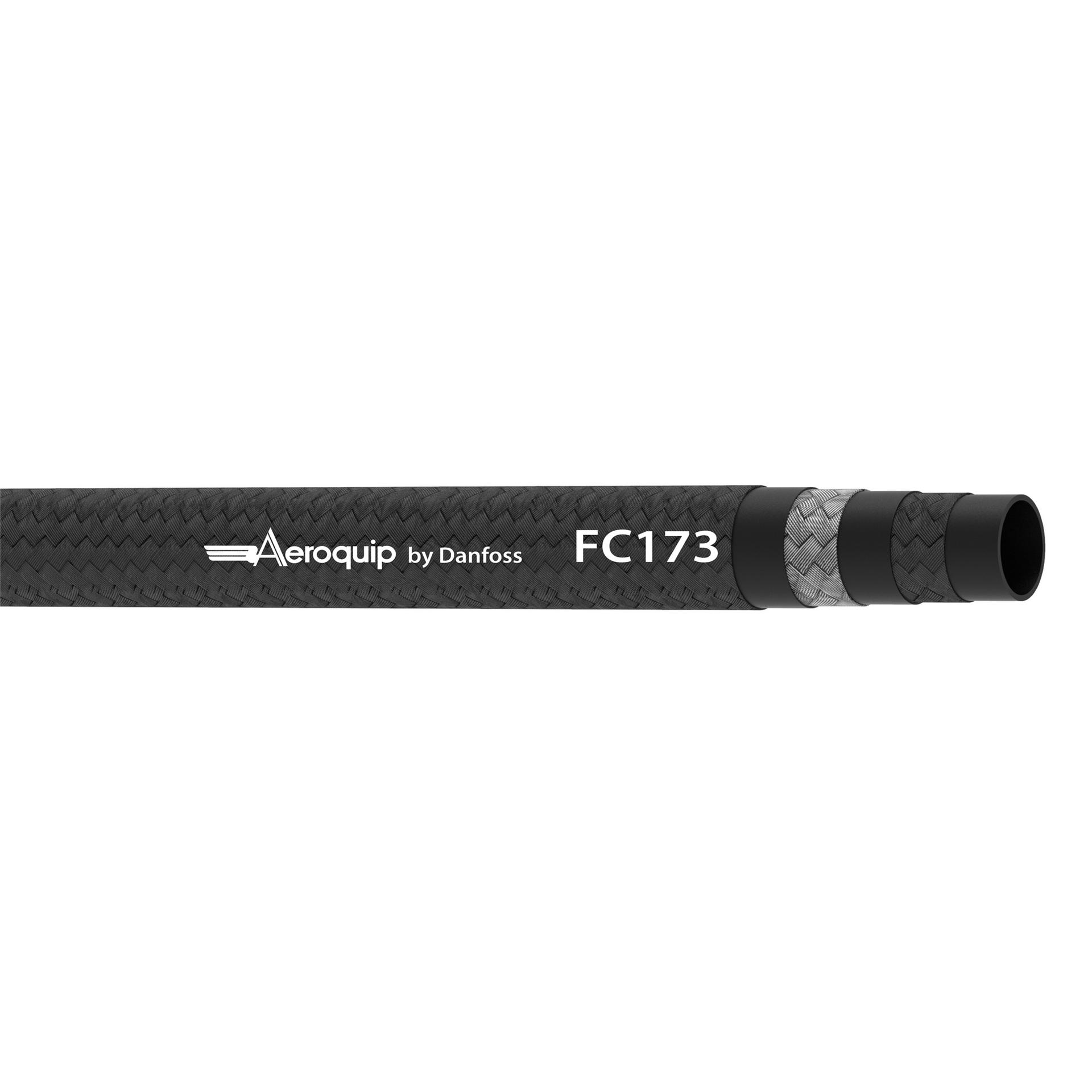

Aeroquip by Danfoss
FC173-16
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC173-16
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Diesel fuel, gasoline, hot lube oil, water and air. | |
| Bend radius - min | 3.5 in | |
| Brand | Aeroquip by Danfoss | |
| Burst pressure | 1500 Psi | |
| Color | Black | |
| Compliance(s) | MIL-DTL-13444, Type III | |
| Conductivity | Conductive | |
| Construction | 2-ply braid | |
| Cover material | Textile | |
| Cover style | Impregnated | |
| Dash size | -16 | |
| Feature | Designed for safety and reliabilityWide range of styles, configurationsMaximum durability under harsh operating conditions | |
| Inside diameter | .9 in | |
| Lay line style | Ink Jet | |
| Outside diameter | 1.24 in | |
| Package form | Bulk | |
| Product Height | 1.24 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Marine Military | |
| Product Volume | 18.451 in³ | |
| Product Weight | .33 lb | |
| Product Width | 1.24 in | |
| Reinforcement material | Textile and wire | |
| Sub-brand | None | |
| Trade Name | FC173 Series | |
| Tube material | Oil resistant inner tube | |
| Tube wall thickness | .34 in | |
| Working pressure | 375 Psi | |
| Working temperature - max | 300 °F | |
| Working temperature - min | -55 °F |
