Aeroquip by Danfoss

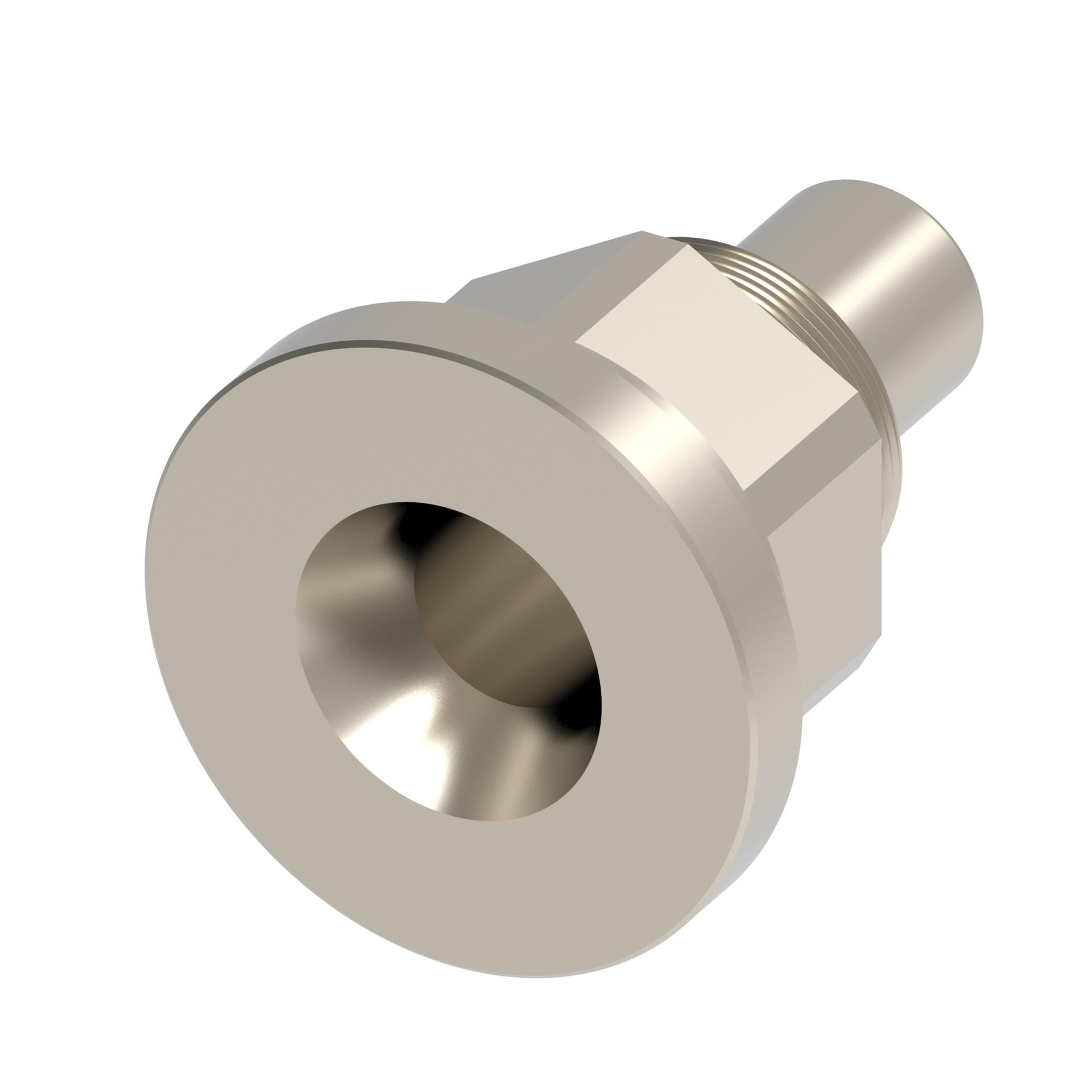

FC2552-2020-4
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC2552-2020-4
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 1.25 in | |
| Compatible hoses | 2808 | |
| End gender 2 | Male | |
| End Size 2 | 1 11/16 IN | |
| End type 1 | Flanged | |
| End type 2 | UNEF | |
| Feature | Maximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability | |
| Finish/plating | Passivate | |
| Hex Size 1 | 2.125 in | |
| Hose cut-off factor | 2.616 in | |
| Hose dash size | -20 | |
| Inside diameter | 1.06 in | |
| Item type | Nipple | |
| Outside diameter | 2.745 in | |
| Product Diameter | 2.745 in | |
| Product Height | 2.745 in | |
| Product Length/Depth | 2.616 in | |
| Product material | Stainless Steel | |
| Product Type | Marine Military | |
| Product Volume | 19.712 in³ | |
| Product Width | 2.745 in | |
| Sub-brand | None | |
| Thread Size 2 | 1 11/16-18 | |
| Trade Name | FC2552 Series |
