Aeroquip by Danfoss
FC2710-12-12S
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

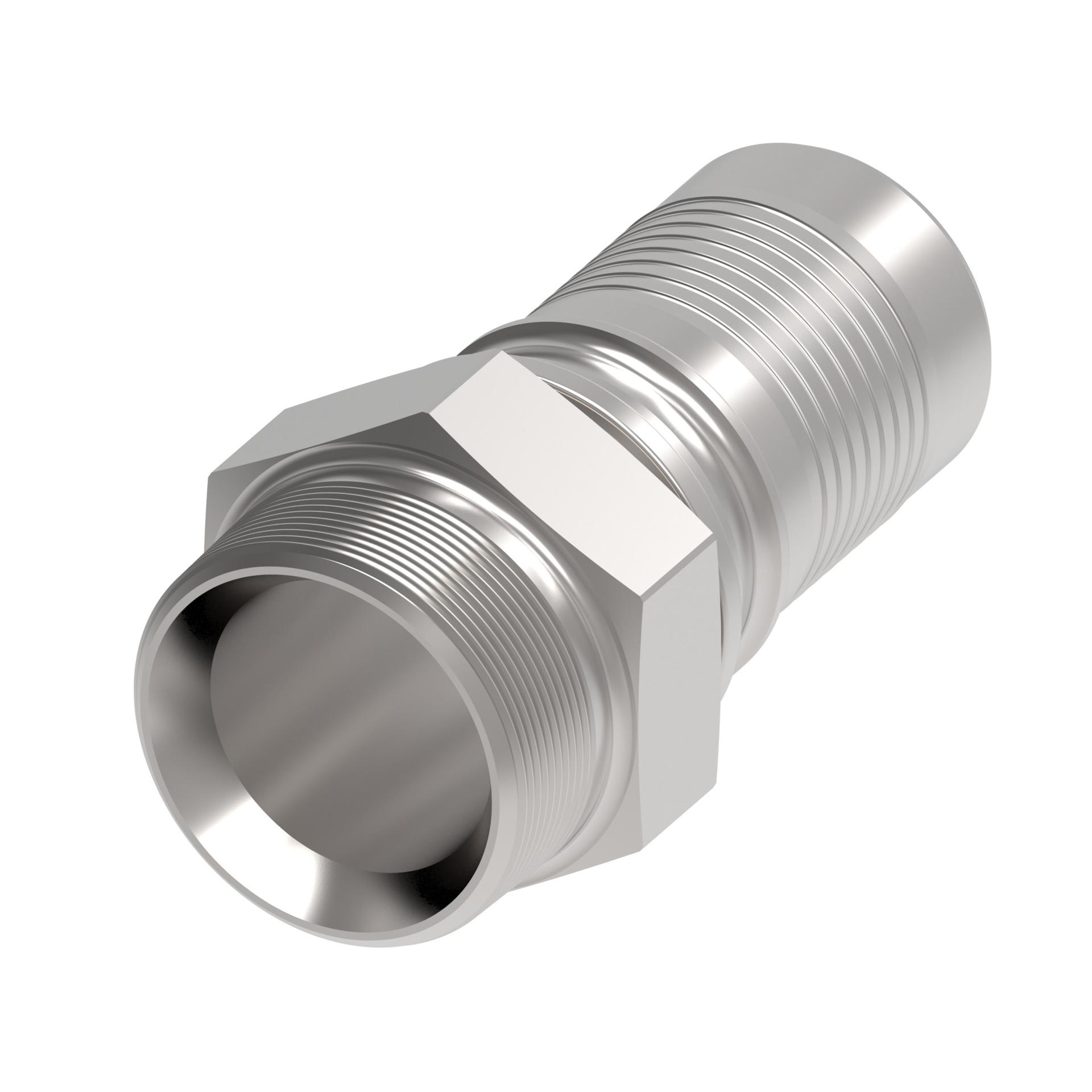

FC2710-12-12S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hoses | FC254 | |
| Construction style | Crimp | |
| End Size 1 | 3/4 IN | |
| End type 1 | MPT | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life | |
| Finish/plating | Dura-Kote | |
| Hex Size 1 | 26.9 mm | |
| Hose dash size | -12 | |
| Inside diameter | 15.5 mm | |
| Item type | Nipple Assembly | |
| Packaged Height | 355.6 mm | |
| Packaged Length | 177.8 mm | |
| Packaged Volume | 14.453 dm³ | |
| Packaged Weight | .36 kg | |
| Packaged Width | 228.6 mm | |
| Product Height | 31.15 mm | |
| Product Length/Depth | 90.4 mm | |
| Product material | Carbon Steel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 75.996 cm³ | |
| Product Weight | .27 kg | |
| Product Width | 26.9875 mm | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 3/4-14 | |
| Trade Name | FC2710 Series |
