Aeroquip by Danfoss
FC3056-1612-4
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

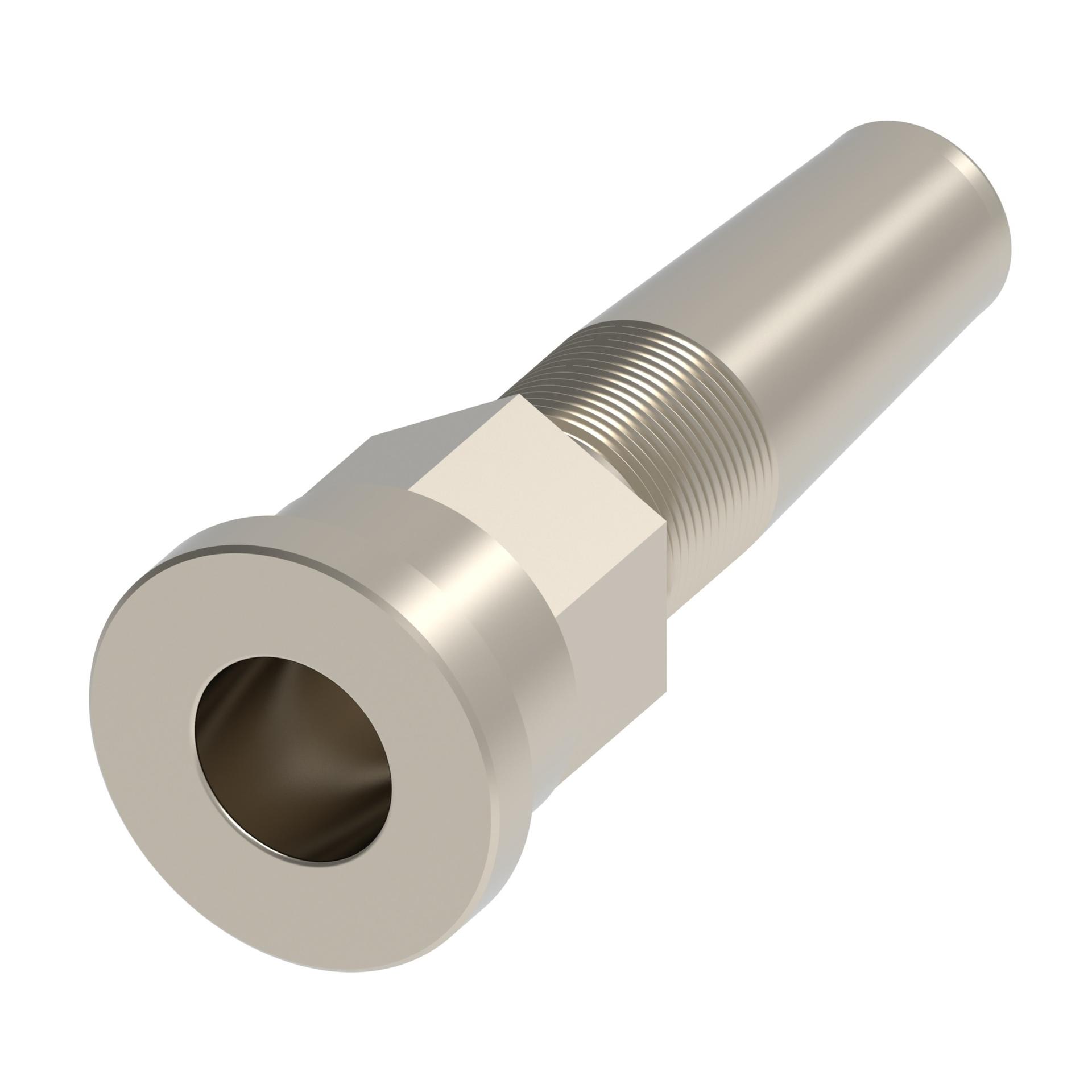

FC3056-1612-4
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | .25 in | |
| Compatible hoses | 1509 | |
| End gender 2 | Male | |
| End Size 2 | 7/8 IN | |
| End type 1 | Flanged | |
| End type 2 | UNS | |
| Feature | Maximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability | |
| Hex Size 1 | 1.12 in | |
| Hose cut-off factor | 1.577 in | |
| Hose dash size | -4 | |
| Inside diameter | .6 in | |
| Item type | Nipple | |
| Outside diameter | 1.49 in | |
| Product Diameter | 1.49 in | |
| Product Height | 1.49 in | |
| Product Length/Depth | 3.94 in | |
| Product material | Monel | |
| Product Type | Marine Military | |
| Product Volume | 8.747 in³ | |
| Product Width | 1.49 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 2 | 7/8-18 | |
| Trade Name | FC3056 Series |
