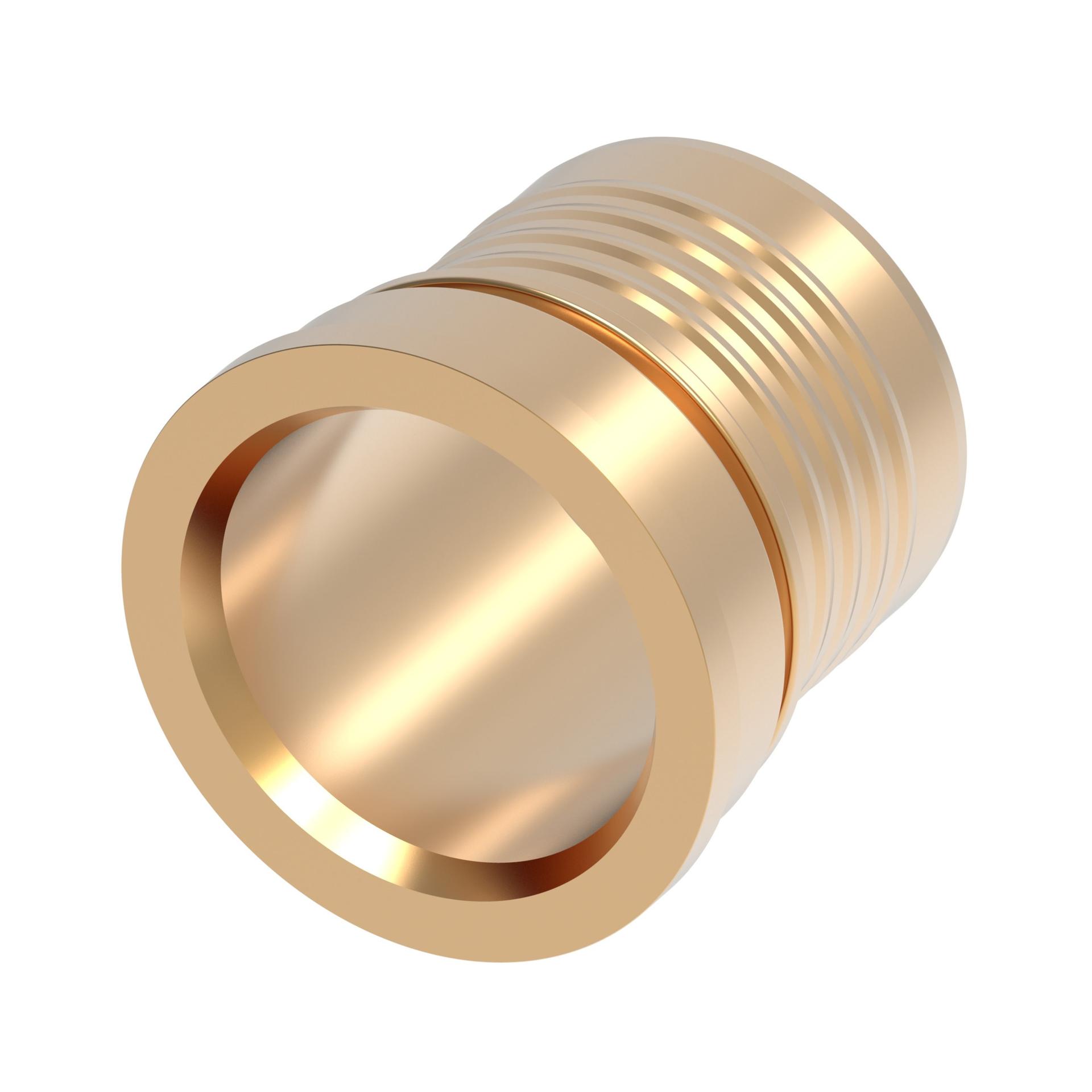

Aeroquip by Danfoss
FC3478-4848-188
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC3478-4848-188
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 3 in | |
| Compatible hoses | FC132 | |
| End Size 1 | 3.3 IN | |
| End Size 2 | 3 IN | |
| End type 1 | Flanged | |
| End type 2 | Line/Hose/Tube | |
| Feature | Maximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability | |
| Hose cut-off factor | 1.305 in | |
| Hose dash size | -48 | |
| Inside diameter | 2.5 in | |
| Item type | Nipple | |
| Outside diameter | 4.49 in | |
| Packaged Height | 14 in | |
| Packaged Length | 7 in | |
| Packaged Volume | 882 in³ | |
| Packaged Weight | 5 lb | |
| Packaged Width | 9 in | |
| Product Diameter | 4.495 in | |
| Product Height | 4.495 in | |
| Product Length/Depth | 5.034 in | |
| Product material | Nickel-Aluminum Bronze | |
| Product Type | Marine Military | |
| Product Volume | 101.712 in³ | |
| Product Weight | 4 lb | |
| Product Width | 4.495 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | FC3478 Series |
