Aeroquip by Danfoss

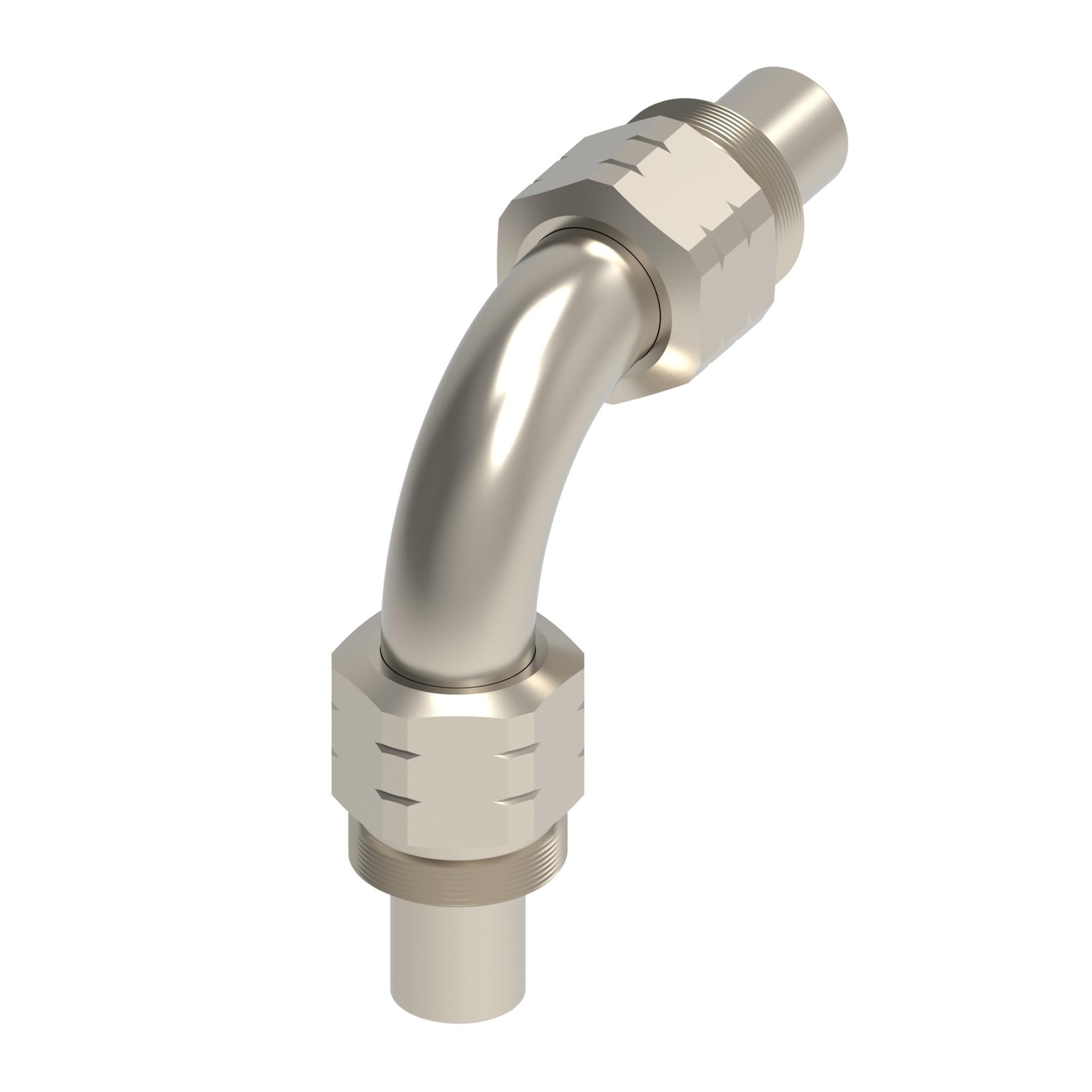

FC4307-1212-4
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC4307-1212-4
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 90 Degree | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | .75 in | |
| Compatible hoses | 2808 | |
| Drop dimension | 3.2 | |
| End gender 1 | Male | |
| End gender 2 | Male | |
| End Size 1 | 1 1/16 IN | |
| End Size 2 | 1 1/16 IN | |
| End type 1 | UN | |
| End type 2 | UN | |
| Feature | Maximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability | |
| Hex Size 1 | 1.125 in | |
| Hex Size 2 | 1.125 in | |
| Hose cut-off factor | 2.455 in | |
| Hose dash size | -12 | |
| Inside diameter | .56 in | |
| Item type | Nipple Assembly | |
| Packaged Height | 14 in | |
| Packaged Length | 7 in | |
| Packaged Volume | 882 in³ | |
| Packaged Width | 9 in | |
| Product Height | 3.76 in | |
| Product Length/Depth | 3.76 in | |
| Product material | Monel | |
| Product Type | Marine Military | |
| Product Volume | 15.905 in³ | |
| Product Width | 1.125 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1 1/16-20 | |
| Thread Size 2 | 1 1/16-20 | |
| Trade Name | FC4307 Series |
