Aeroquip by Danfoss

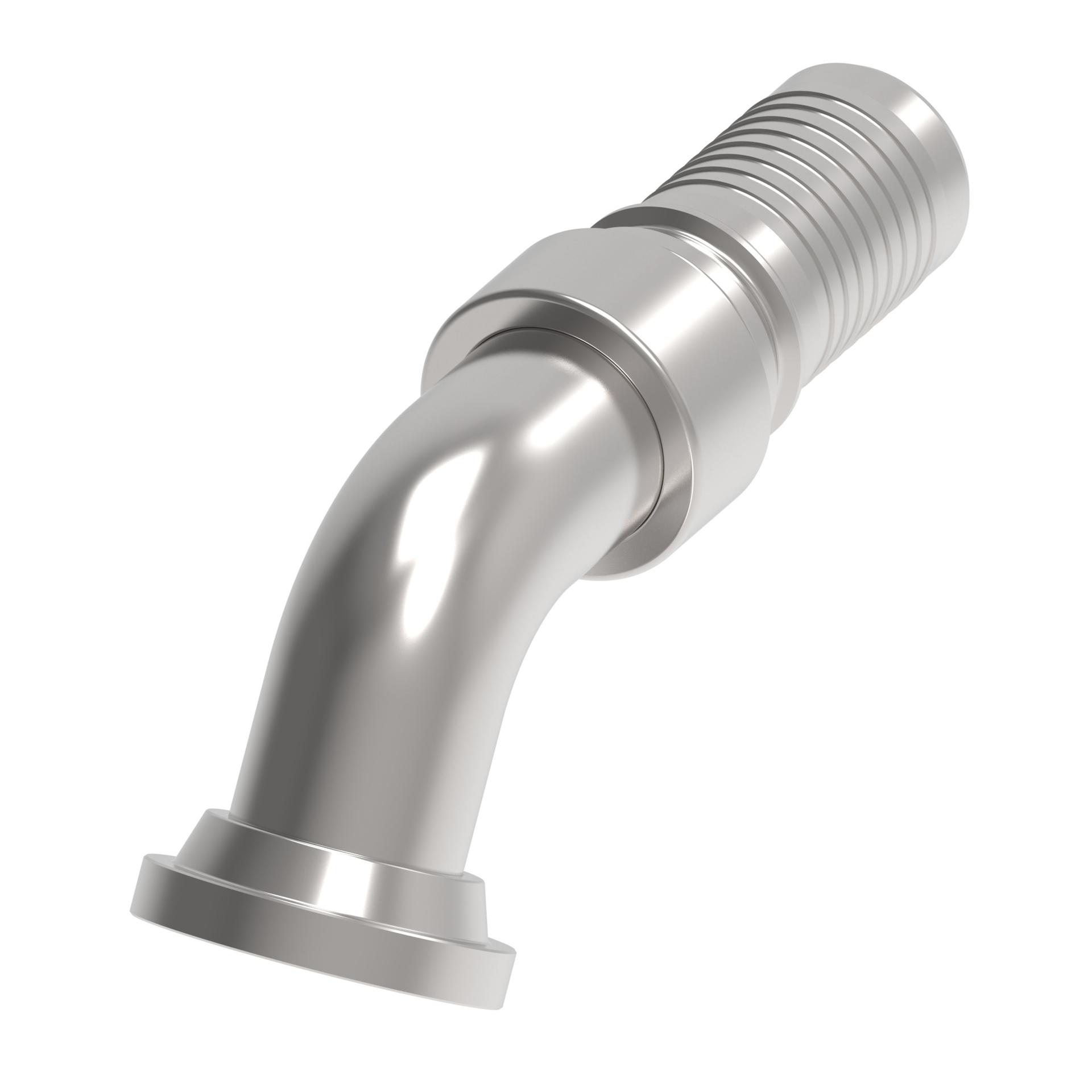

FC4504-3232S
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Recommended replacement: 4S32FLG32
FC4504-3232S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 60 Degree | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 2 in | |
| Compatible hoses | FC254 | |
| Construction style | Crimp | |
| Drop dimension | 2.875 | |
| End type 1 | Flanged | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life | |
| Finish/plating | Dura-Kote | |
| Hose cut-off factor | 5.36 in | |
| Hose dash size | -32 | |
| Inside diameter | 1.62 in | |
| Item type | Nipple Assembly | |
| Outside diameter | 1.22 in | |
| Product Height | 4.3 in | |
| Product Length/Depth | 9.75 in | |
| Product material | Carbon Steel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 117.809 in³ | |
| Product Weight | 4.15 lb | |
| Product Width | 2.81 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | FC4504 Series |
