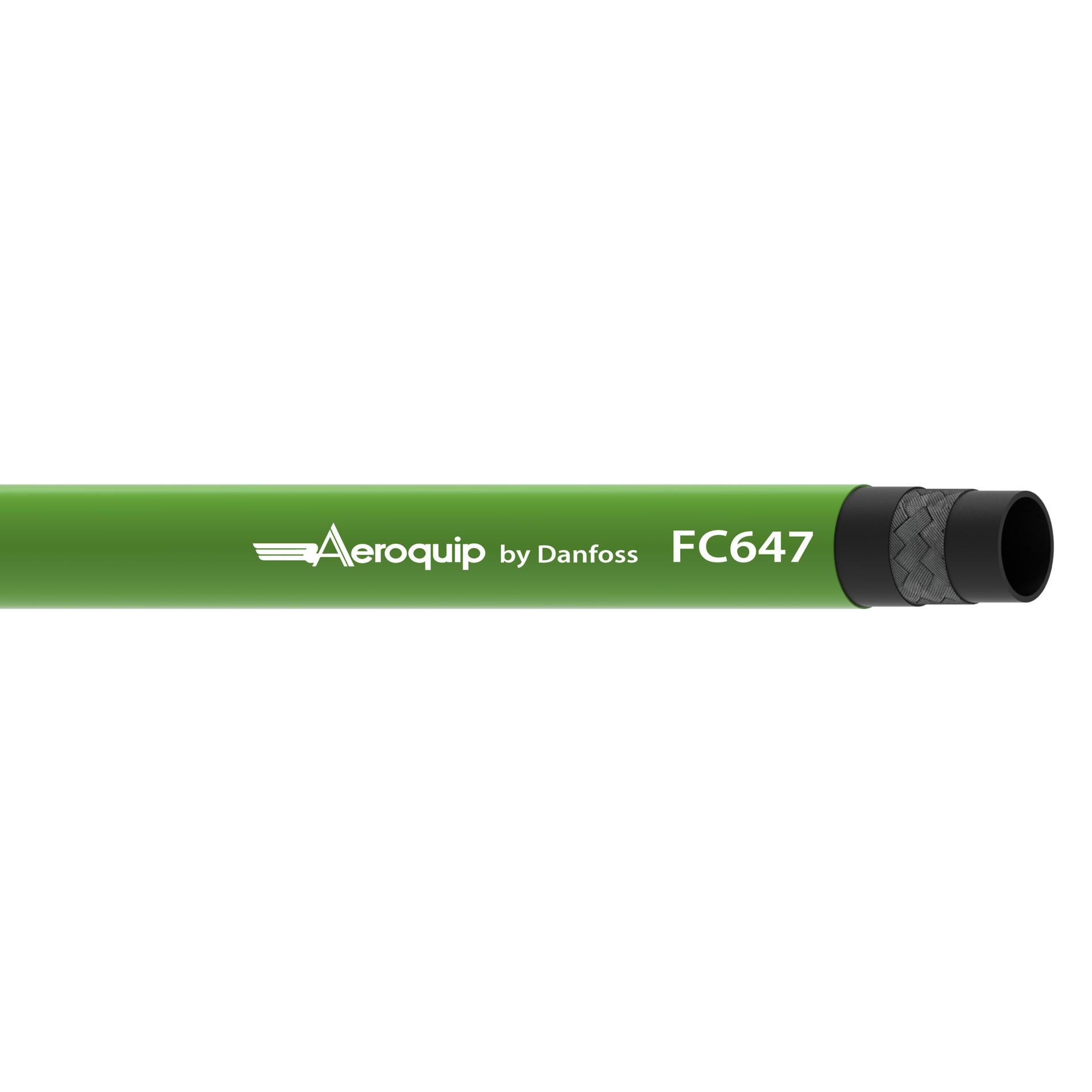

Aeroquip by Danfoss
FC647-04GRN
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC647-04GRN
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Premium | |
| Application | For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications and not approved for air brake applications. | |
| Bend radius - min | 3 in | |
| Brand | Aeroquip by Danfoss | |
| Burst pressure | 1440 Psi | |
| Color | Green | |
| Conditional temperature range | Water not to exceed 66 C [150 F]; Air not to exceed 71 C [160 F] | |
| Conductivity | Conductive | |
| Construction | 1 Ply Braid | |
| Cover material | Polyester | |
| Dash size | -4 | |
| Feature | Longer hsoe assembly lifeWithstands high pressure and temperaturesKink resistant | |
| Inside diameter | .25 in | |
| Lay line style | Ink Wheel | |
| Outside diameter | .52 in | |
| Package form | Bulk | |
| Product Height | .52 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Socketless Low Pressure Hose | |
| Product Volume | 3.245 in³ | |
| Product Weight | .01 lb | |
| Product Width | .52 in | |
| Qualified hose fittings | Reusable | |
| Reinforcement material | Polyester | |
| Sub-brand | None | |
| Trade Name | FC647 Series | |
| Tube material | Nitrile | |
| Tube wall thickness | .135 in | |
| UPC | 678146068675 | |
| Vacuum rating | 28 iHg | |
| Working pressure | 360 Psi | |
| Working temperature - max | 212 °F | |
| Working temperature - min | -40 °F |
