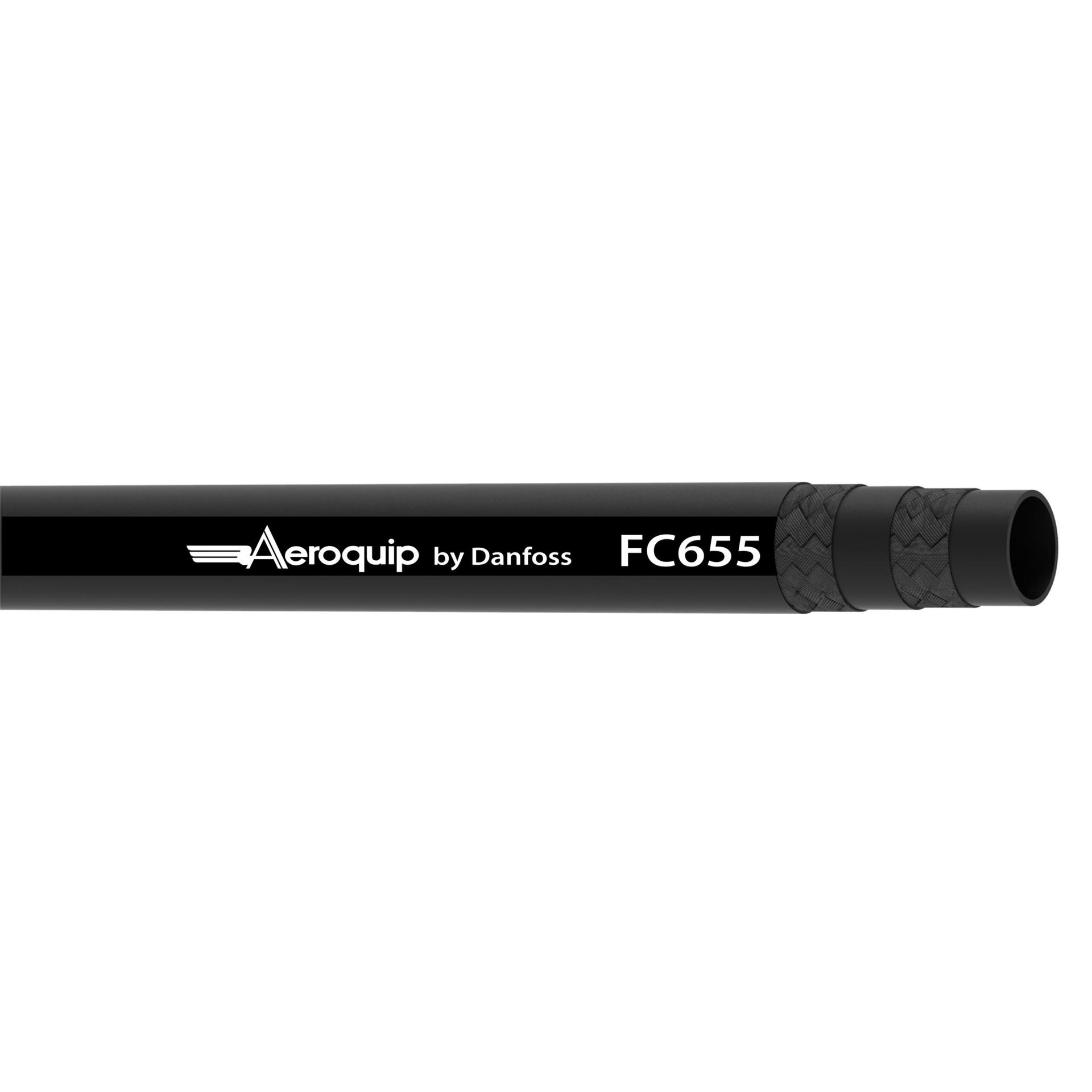

Aeroquip by Danfoss
FC655-06
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC655-06
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Hydraulics, crude fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids. | |
| Bend radius - min | 5.12 in | |
| Brand | Aeroquip by Danfoss | |
| Burst pressure | 19200 Psi | |
| Certification(s) | SAE 100R2 | |
| Color | Black | |
| Conductivity | Conductive | |
| Construction | 2-ply braid | |
| Cover material | Elastomer | |
| Dash size | -6 | |
| Feature | Maximum durability under harsh operating conditionsRobust construction able to withstand highest pressuresSystem engineered to extend hose assembly life | |
| Inside diameter | .38 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | .78 in | |
| Package form | Bulk | |
| Packaged Weight | .01 lb | |
| Product Height | .78 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Rubber Hydraulic | |
| Product Volume | 7.301 in³ | |
| Product Weight | .39 lb | |
| Product Width | .78 in | |
| Reinforcement material | Wire | |
| Sub-brand | None | |
| Trade Name | FC655 Series | |
| Tube material | AQP Inner tube | |
| UPC | 678146213921 | |
| Working pressure | 4800 Psi | |
| Working temperature - max | 300 °F | |
| Working temperature - min | -40 °F |
