Product specifications
Characteristic | Value | Description |
|---|---|---|
| Application | HYDRAULIC SYSTEMS | Hydraulic systems |
| Bend radius min (inch) | 1.250 | |
| Bend radius min (mm) | 31.800 | |
| Brand | SEL BY DANFOSS | SEL by Danfoss |
| Burst pressure (bar) | 759 | |
| Burst pressure (psi) | 11000 | |

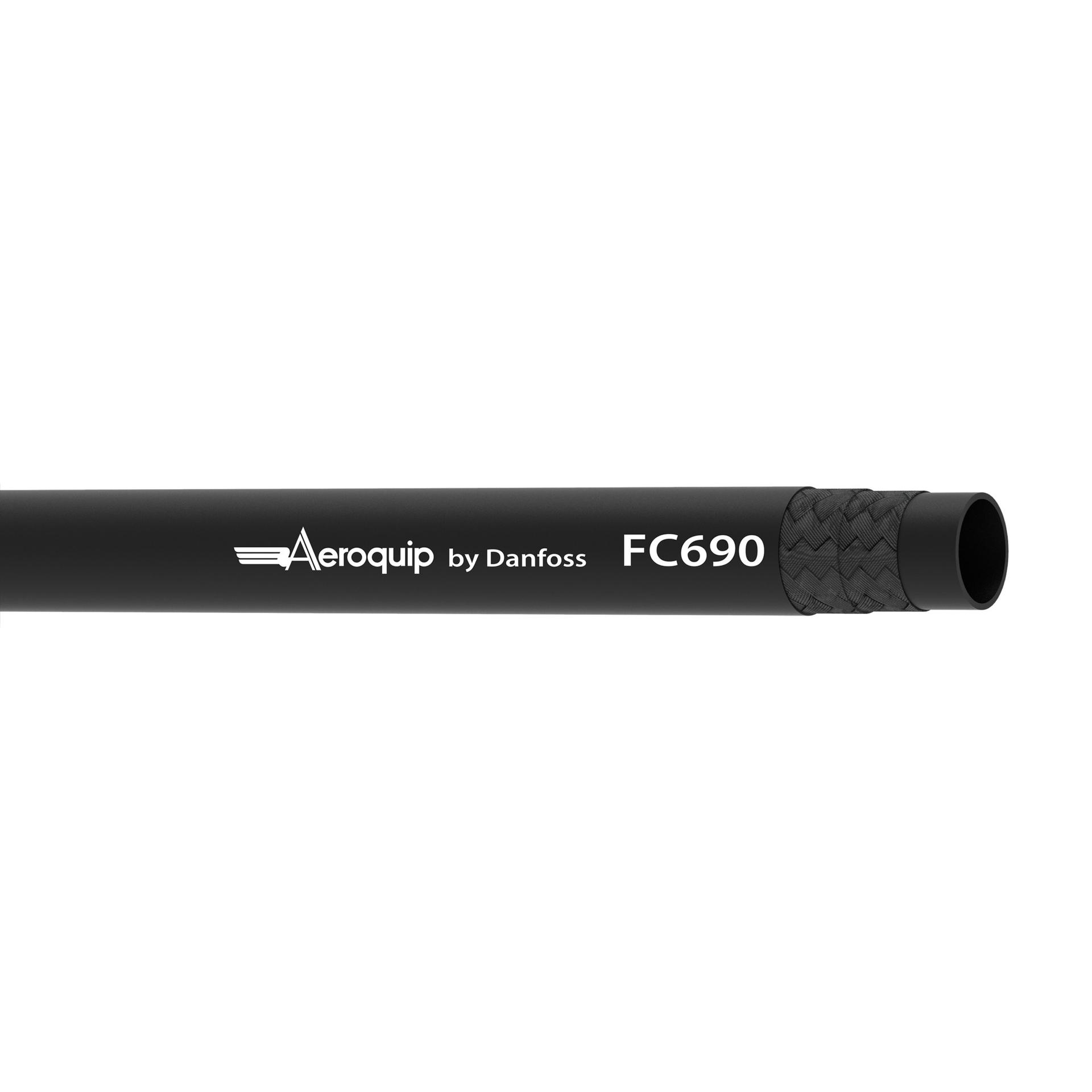

| Catalog Item | FC690-06RL | FC690-06RL |
| Color | BLACK | Black |
| Compliances | SAE 100R7 | SAE 100R7 |
| Conductivity | CONDUCTIVE | Conductive |
| Construction | 2 PLY BRAID | 2 Ply braid |
| Cover material | POLYURETHANE (TPU) | Polyurethane (TPU) |
| Inside diameter (inch) | 0.25 | |
| Inside diameter (mm) | 6.40 | |
| Lay line style | INK JET | Ink jet |
| Outside diameter (inch) | 0.54 | |
| Outside diameter (mm) | 13.72 | |
| Package form | REEL | Reel |
| Product height in | 0.250 | |
| Product height mm | 6.400 | |
| Product width in | 0.250 | |
| Product width mm | 6.400 | |
| Reinforcement material | FABRIC | Fabric |
| Series | FC690 SERIES | FC690 Series |
| Size | -6 | -6 |
| Tube material | THERMOPLASTIC | Thermoplastic |
| Working pressure max (bar) | 190 | |
| Working pressure max (psi) | 2750 | |
| Working temperature max (C) | 93 | |
| Working temperature max (F) | 200.0 | |
| Working temperature min (C) | -54 | |
| Working temperature min (F) | -65.0 |
