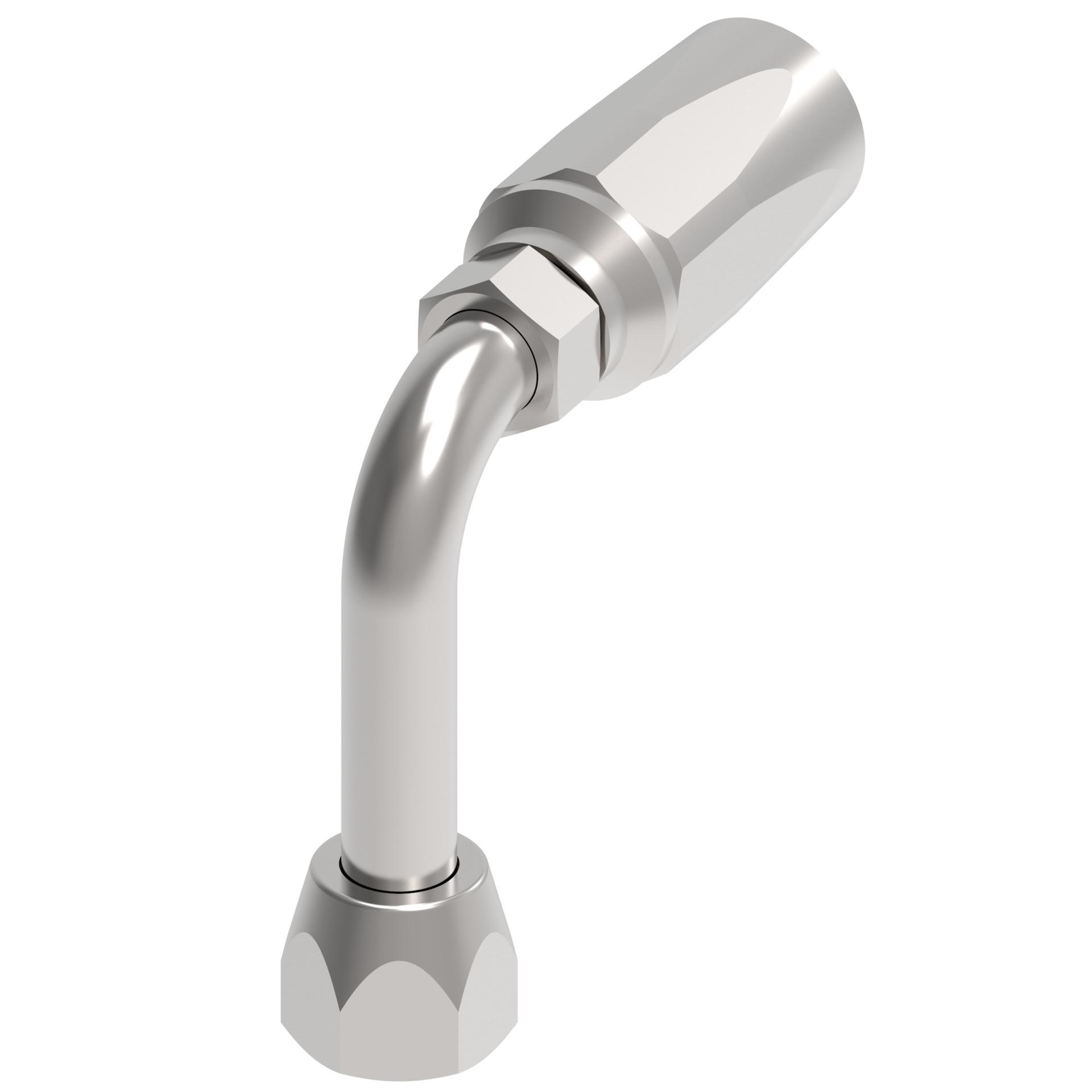

Hose Fittings FC7991-0808S [RIGHT]

Aeroquip by Danfoss

FC7991-0808S

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Recommended replacement: 1RA8FJC8

Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandAeroquip by Danfoss
Compatible hose ID.5 in
Compatible hosesGH663
Construction styleReusable
Drop dimension2.43
End gender 1Female
End Size 13/4 IN
End Size 21/2 IN
End type 1SAE 37
End type 2Line/Hose/Tube
FeatureFit for wide range of applicationsDurable and dependableCut assembly times and boost production
Finish/platingDura-Kote
Hex Size 1.88 in
Hex Size 21 in
Hose cut-off factor1.66 in
Hose dash size-8
Inside diameter.39 in
Item typeFitting Assembly
Packaged Height14 in
Packaged Length7 in
Packaged Volume882 in³
Packaged Weight.795 lb
Packaged Width9 in
Product Height3.43 in
Product Length/Depth3.57 in
Product materialCarbon Steel
Product TypeReusable Hose Fittings
Product Volume12.245 in³
Product Weight.41 lb
Product Width1 in
Sub-brandNone
Thread sealantNo
Thread Size 13/4-16
Trade NameFC7991 Series
UPC678146060976
