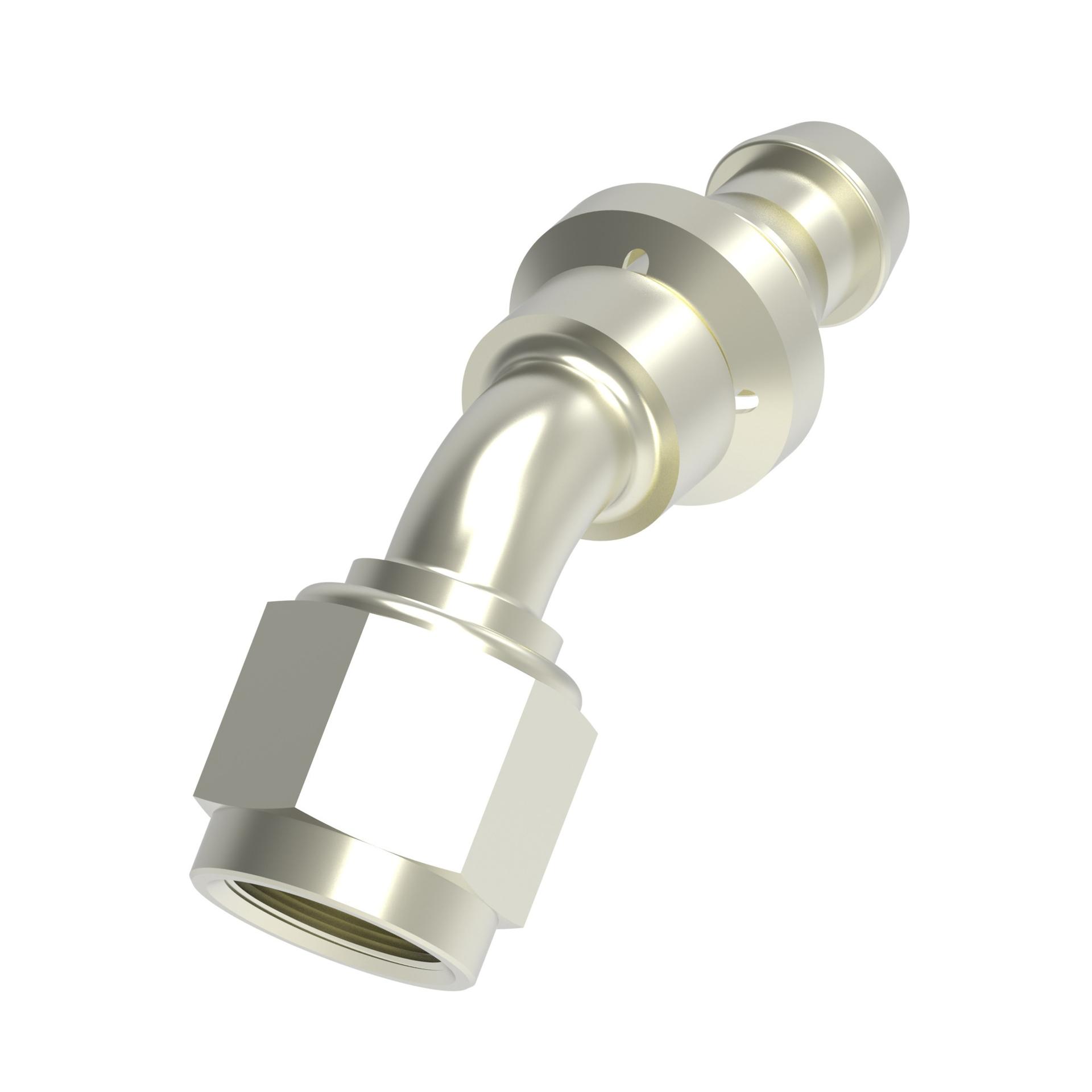

Hose Fittings FCE1522 (RIGHT)

Aeroquip Performance by Danfoss

FCE1525

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)45 Degree
BrandAeroquip Performance by Danfoss
Compatible hose ID.75 in
Compatible hoses2556
Construction styleReusable
Drop dimension.729
End gender 1Female
End Size 11 1/16 IN
End type 1SAE 37
End type 2Line/Hose/Tube
FeatureSystem engineered to extend hose assembly lifeHigh performance to increase uptime in critical operationsSuperior durability made to last
Finish/platingNickel Plating
Hex Size 11.25 in
Hose cut-off factor1.83 in
Hose dash size-12
Inside diameter.59 in
Item typeFitting Assembly
Outside diameter1.25 in
Packaged Height6.5 in
Packaged Length9 in
Packaged Volume819 in³
Packaged Weight1 lb
Packaged Width14 in
Product Height2.56 in
Product Length/Depth4.65 in
Product materialAluminum
Product TypeReusable Hose Fittings
Product Volume14.88 in³
Product Weight.1825 lb
Product Width1.25 in
Sub-brandNone
Thread sealantNo
Thread Size 11 1/16-12
Trade NameNone
UPC678146010872
