Aeroquip Performance by Danfoss
FCL1350

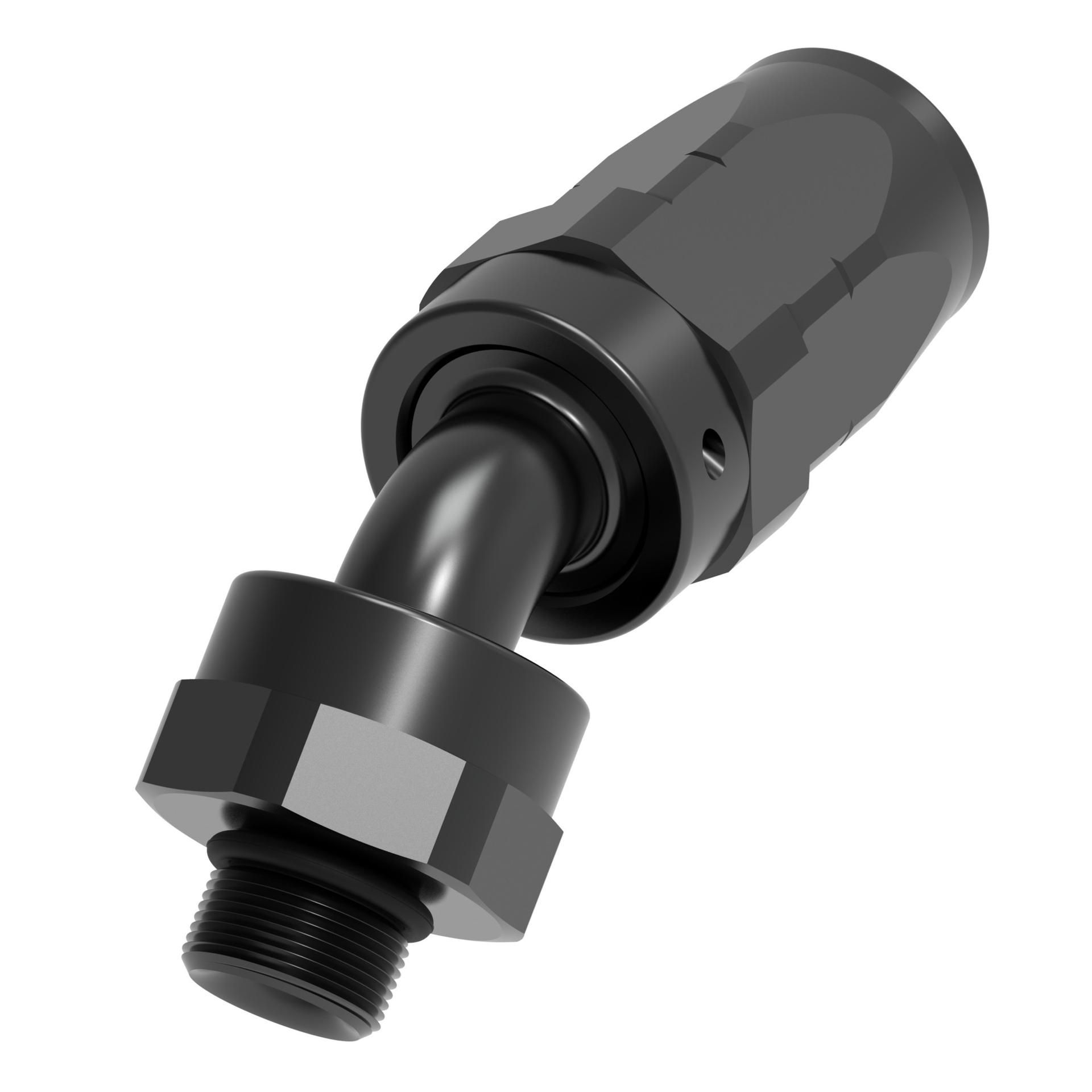

Ftng (reus), PERF ORB 45 Deg Fitting
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | 45 Degree |
| Brand | Aeroquip Performance by Danfoss |
| Compatible hose ID | .625 in |
| Construction style | Reusable |
| Drop dimension | .68 |
| End Size 1 | 1 1/16 IN |
| End gender 1 | Male |
| End type 1 | ORB |
| End type 2 | Line/Hose/Tube |
| Feature | System engineered to extend hose assembly lifeHigh performance to increase uptime in critical operationsSuperior durability made to last |
| Finish/plating | Black Anodized |
| Hex Size 1 | 1.0625 in |
| Hex Size 2 | 1.25 in |
| Hose cut-off factor | 2.09 in |
| Hose dash size | -10 |
| Inside diameter | .47 in |
| Item type | Fitting Assembly |
| Product Height | 2.013 in |
| Product Length/Depth | 4.37 in |
| Product Type | Reusable Hose Fittings |
| Product Volume | 10.996 in³ |
| Product Width | 1.25 in |
| Product material | Aluminum |
| Sub-brand | None |
| Thread Size 1 | 1 1/16-12 |
| Thread sealant | No |
| Trade Name | None |
| UPC | 678146218667 |
