Aeroquip Performance by Danfoss

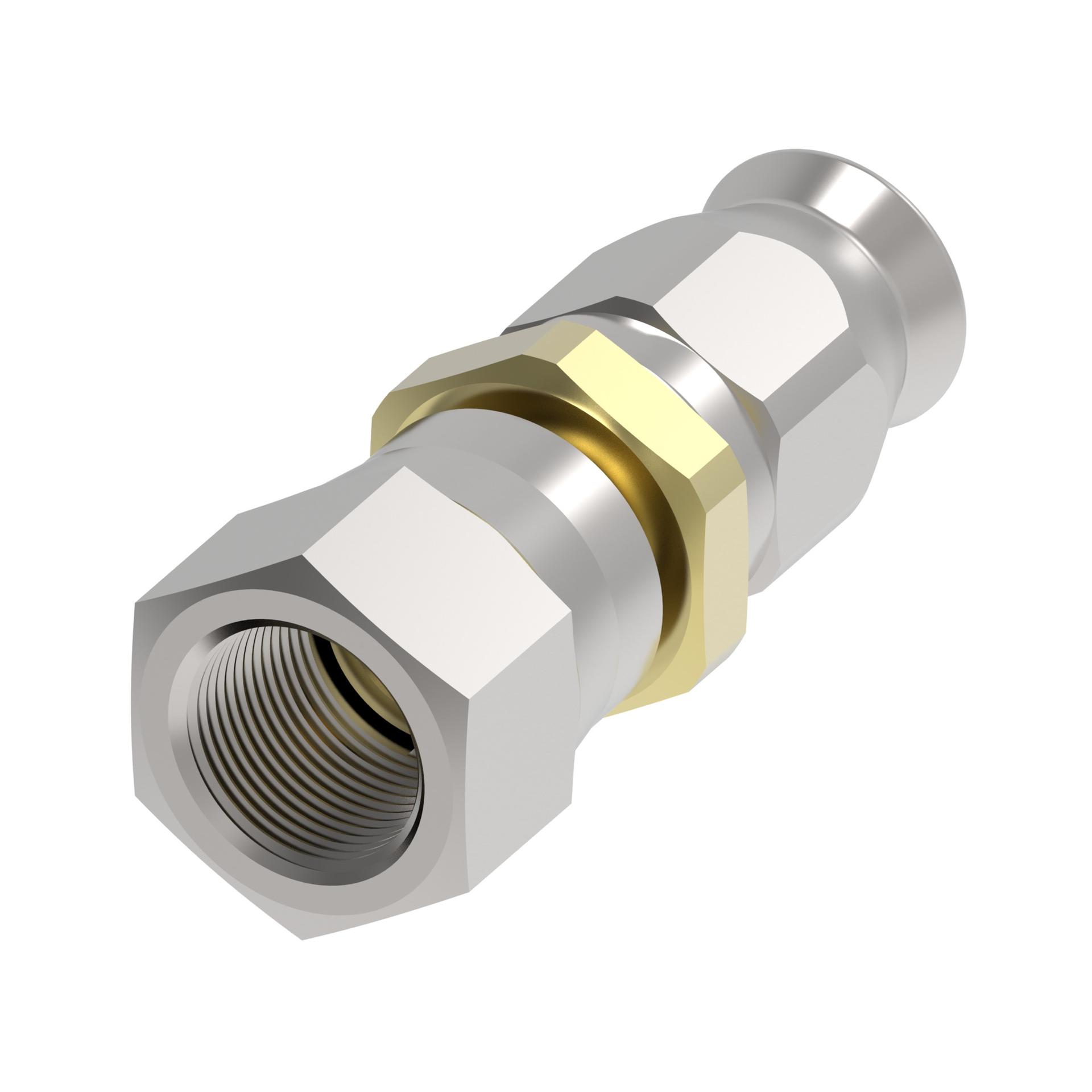

FCM1135
Swivel SAE 37 JIC/AN
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | Straight |
| Brand | Aeroquip Performance by Danfoss |
| Compatible hose ID | .5 in |
| Construction style | Reusable |
| End Size 1 | 3/4 IN |
| End type 1 | AN |
| End type 2 | Line/Hose/Tube |
| Feature | System engineered to extend hose assembly lifeHigh performance to increase uptime in critical operationsSuperior durability made to last |
| Finish/plating | Dura-Kote |
| Hose dash size | -8 |
| Inside diameter | .38 in |
| Item type | Fitting Assembly |
| Packaged Height | 6.5 in |
| Packaged Length | 9 in |
| Packaged Volume | 819 in³ |
| Packaged Weight | 1.1891 lb |
| Packaged Width | 14 in |
| Product Height | 1.01 in |
| Product Length/Depth | 1.98 in |
| Product Type | Reusable Hose Fittings |
| Product Volume | 1.76 in³ |
| Product Weight | .1891 lb |
| Product Width | .88 in |
| Product material | Carbon Steel |
| Sub-brand | None |
| Thread Size 1 | 3/4-16 |
| Thread sealant | No |
| Trade Name | None |
| UPC | 678146001689 |
